Graco CSP Series - Sequence 5; Sequence 6

Operation
12 3A3995L
Sequence 5
1. Lubricant fills the right side of Plunger 2 pushing
the plunger to the left.
2. Plunger 2 opens, delivering lubricant to Outlet 3
(F
IG. 14).
Sequence 6
1. The final sequence completes the cycle. Lubricant
fills the right side of Plunger 3.
2. Plunger 3 opens, delivering lubricant to Outlet 5
(F
IG. 15).

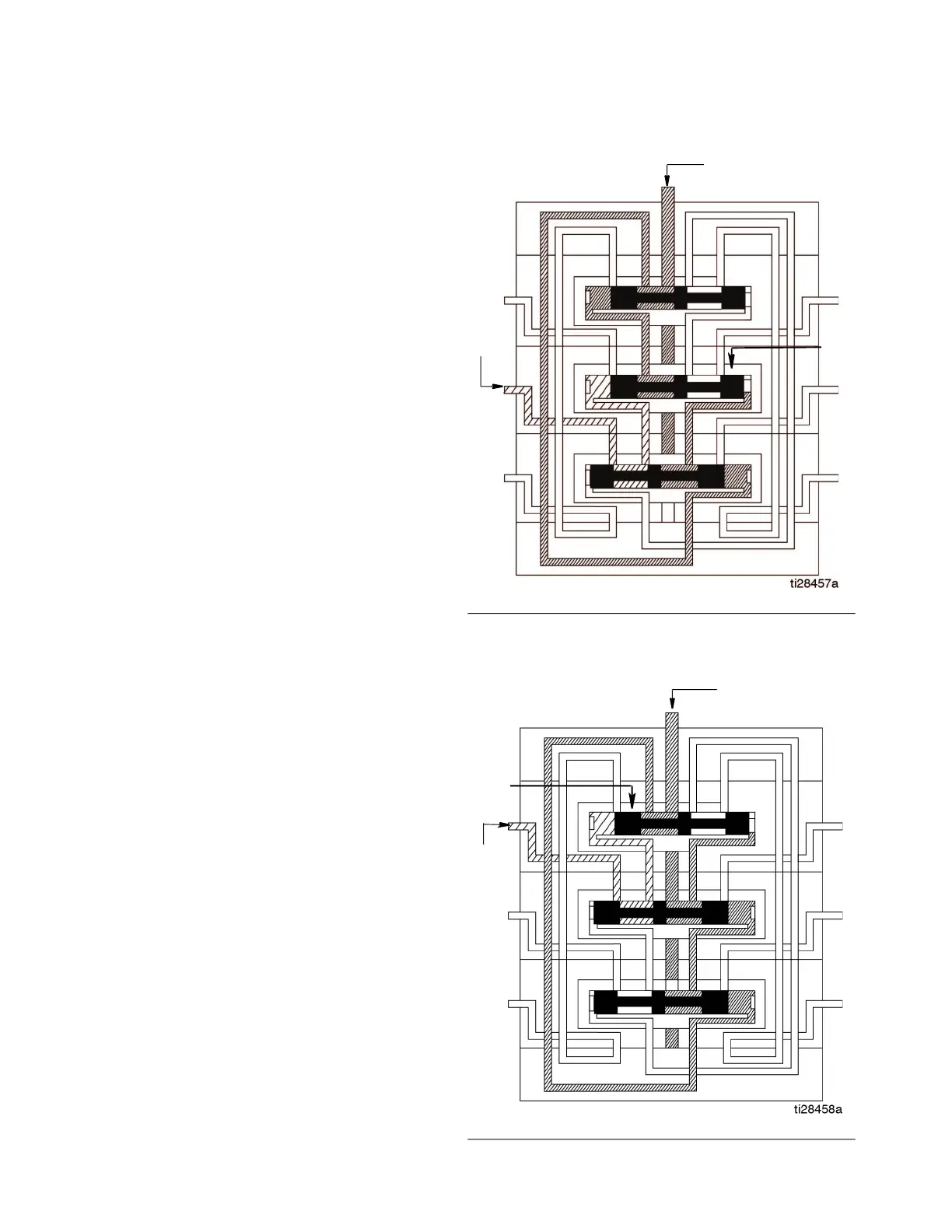

FIG. 14
Inlet
Outlet
3
Plunger 2
FIG. 15
Inlet
Outlet
5
Plunger 3
