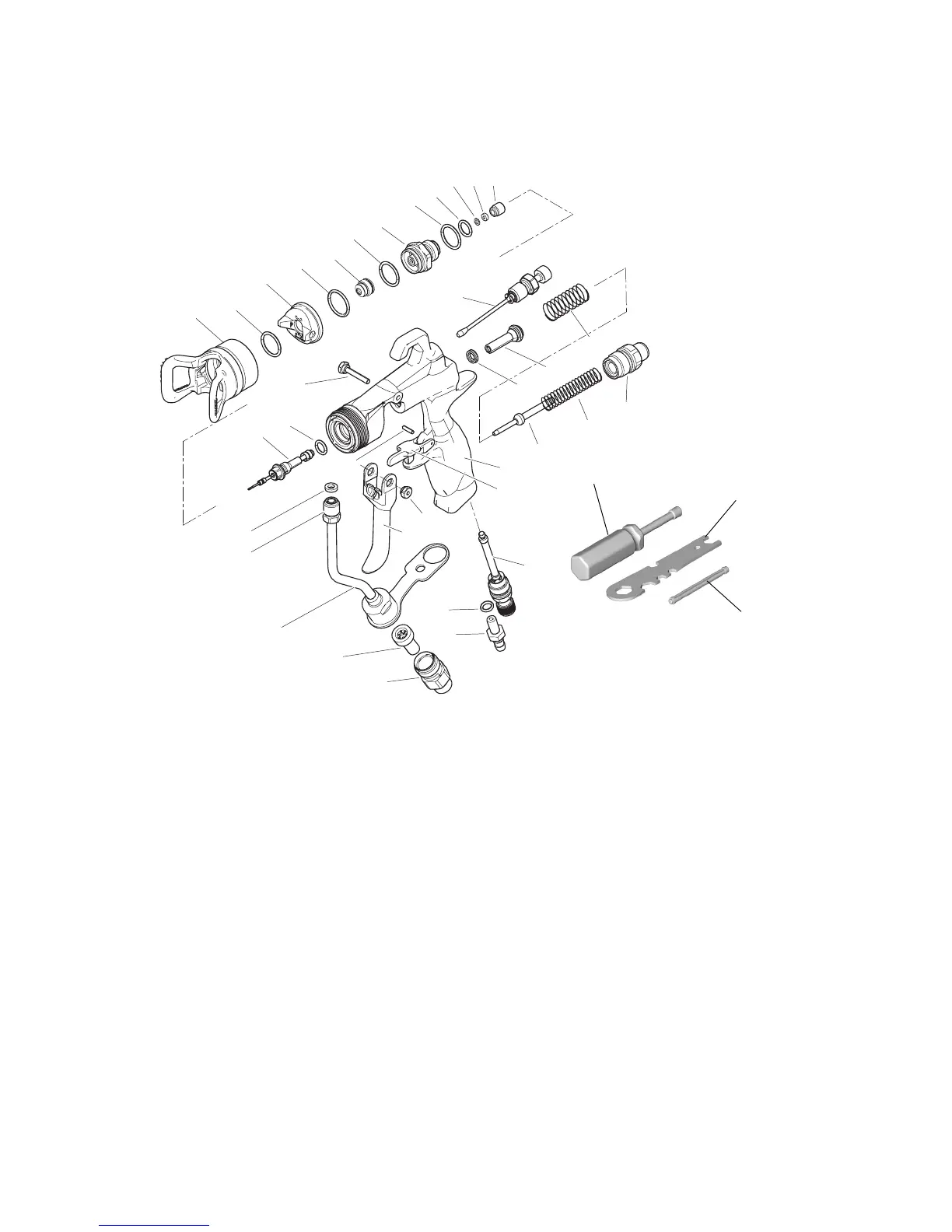

Parts (262932)
10 333182A
Parts (262932)
Replacement Danger and Warning labels, tags, and cards
are available at no cost.
Included in Needle/Seat Repair Kit 255160
(purchase separately)
* Included in Seal Repair Kit 249422 (purchase separately)
5c
72
8
7
18
13
14
37
38
1
2
2a
15
4
11
19
5a
5f
5b
5d
5e
6c
22
16
3
71
17
75
20
9
22
6b
6
6a
5g
ti22692a
28
30
29
Ref. Part Description Qty.
1 BODY, gun 1
2 NEEDLE, assy, 3/32 carbide ball 1
2a 110004 O-RING 1
3 249585 TRIGGER (includes 13, 14) 1
4 249135 VALVE, fan control assy 1
5 288192 DIFFUSER, assy, high pressure 1
5a DIFFUSER, housing 1
5b NYLON, gasket 1
5c CARBIDE, seat 1
5d NUT, seat 1
5e* 111457 O-RING, PTFE 1
5f* 109450 O-RING, PTFE 1
5g* 111116 O-RING 1
6 256721 AIRCAP, assembly, RAC conversion 1
6a 249180 AIRCAP, assembly 1
6b 109213 PACKING, o-ring 1
6c 15G320 WASHER, PTFE, 1.2 OD 1
7 188493 PACKING, u-cup, gun 1
8* VALVE, air, assembly 1
9 16A529 SHAFT, fluid spring 1
11 15F195 CAP, spring 1
13 15F739 PIN, pivot 1
14 15F740 PIN, pivot, nut 1
15 114069 SPRING, compression 1
16 249136 TUBE, assy 1
17 24U606 VALVE, assy, inlet air 1
18 115133 GASKET, tube 1
19 115141 SPRING, compression 1
20 16X404 FITTING, barbed 1
22 AAM309 TIP, G15, G40 1
28 192282 TOOL, installation, seal 1
29 117642 TOOL, nut driver 1
30 15F446 TOOL, gun 1
31 222385 TAG, warning (not shown) 1
32 172479 TAG, warning (not shown) 1
37 224453 FILTER, tip 1
38 15F186 FITTING, hose 1
50 017480 ADHESIVE, thread locker 1
70 15F185 INSERT, fluid 1
71 249423 STOP, trigger, molded 1
72 115132 PIN, dowel 2
73 117517 O-RING 1
74 15U104 TAG, important-tighten tip (not shown) 1
75 156454 PACKING, o-ring 1
Ref. Part Description Qty.
