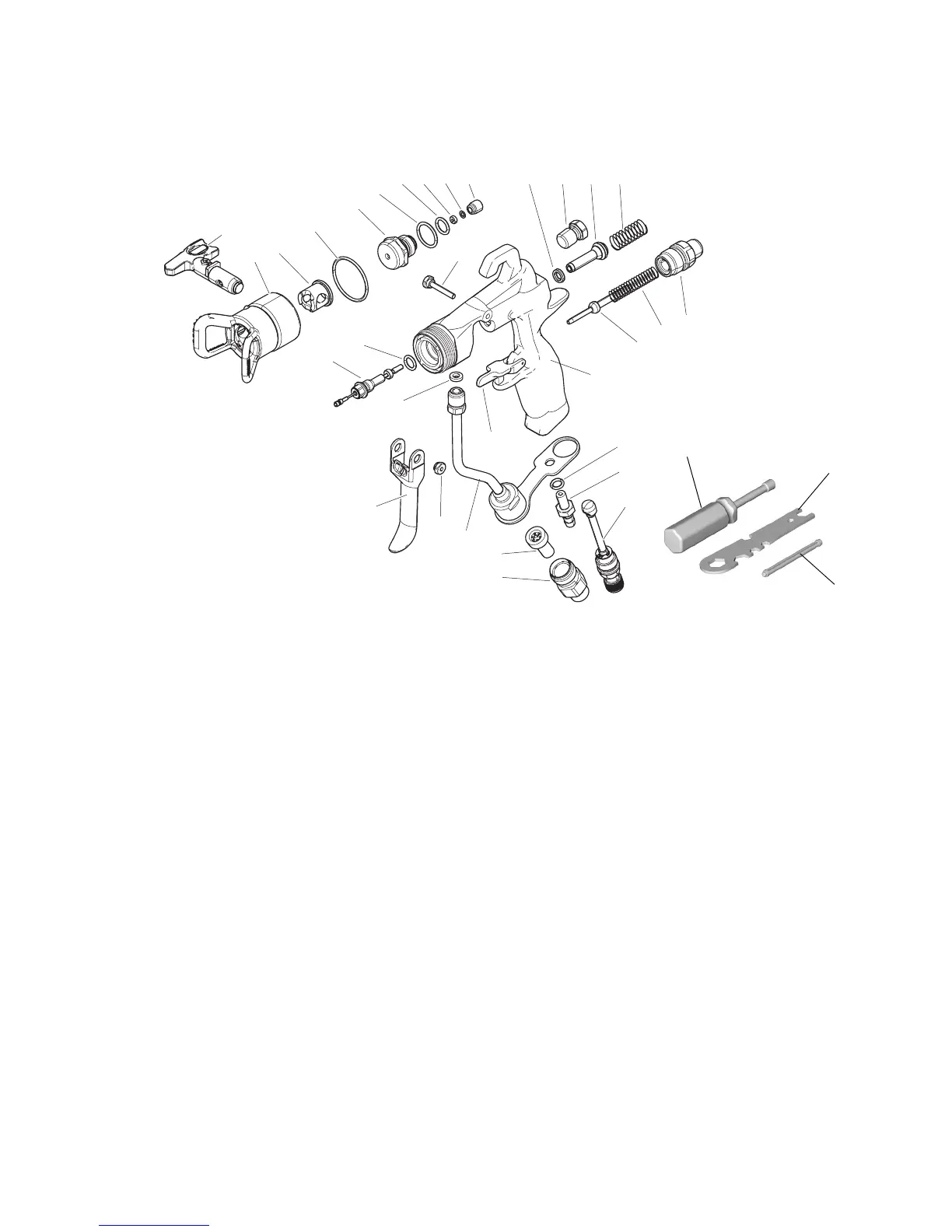

Parts (262929)
333182A 9
Parts (262929)
Replacement Danger and Warning labels, tags, and cards
are available at no cost.
Included in Needle/Seat Repair Kit 255160 (purchase
separately)
† Included in RAC Guard Kit 288839
*Included in Seal Repair Kit 249422 (purchase separately)
‡ If you want to remove the filter, order 162863 to use as a
seal in its place.
**Included in 246453 RAC X One Seal Kit (Standard)
**Included in 248936 RAC X One Seal Kit (Solvent)
1
11
1a
8
7
5a
22
9
4
13
14
3
16
24
25
75
20
19
15
5f
5e
5b
5c
5d
2
2a
6a
35
6
33
17
ti22691a
28
30
29
Ref. Part Description Qty.
1 BODY, gun, assy 1
1a 249423 SAFETY, trigger 1
2 NEEDLE, assy; 3/32 carbide ball;
includes item 2a
1
2a* 110004 PACKING, o-ring; PTFE 1
3 249585 KIT, trigger, repair, includes 13 and 14 1
4 15G713 NUT, air plug 1
5 249877 DIFFUSER, assy, RAC 1
5a DIFFUSER, housing 1
5b GASKET, seat; nylon 1
5c SEAT; carbide 1
5d NUT, seat 1
5e* 111457 PACKING, o-ring, seat; PTFE 1
5f* 109450 PACKING, o-ring; PTFE 1
6 288839 GUARD, RAC 1
6a* 109213 PACKING, o-ring, PTFE 1
7* 188493 PACKING, u-cup, gun; UHMWPE 1
8* VALVE, air, assy 1
9 16A529 SHAFT, fluid spring 1
11 15F195 CAP, spring 1
13 15F739 PIN, pivot 1
14 15F740 PIN, pivot, nut 1
15 114069 SPRING, compression 1
16 249136 TUBE, assy 1
17 24U606 VALVE, assy, inlet air 1
19 115141 SPRING, compression 1
20 16X404 FITTING, barbed 1
22* 115133 GASKET, tube, acetal 1
24 224453 FILTER 1
24a‡ 162863 GASKET, non-metallic (sold separately)
25 15F186 FITTING, fluid inlet 1
28* TOOL, installation; seal 1
29 117642 TOOL, nut driver 1
30 15F446 TOOL, gun 1
31 222385 CARD, warning (not shown) 1
32 172479 TAG, warning (not shown) 1
33 FFT210 SPRAY TIP 1
33a** SEAT, gasket 1
33b** SEAL 1
35† 15J770 HOUSING, cylinder 1
75 156454 O-RING 1
Ref. Part Description Qty.
