Hydraulic Pump Replacement
24 311283J

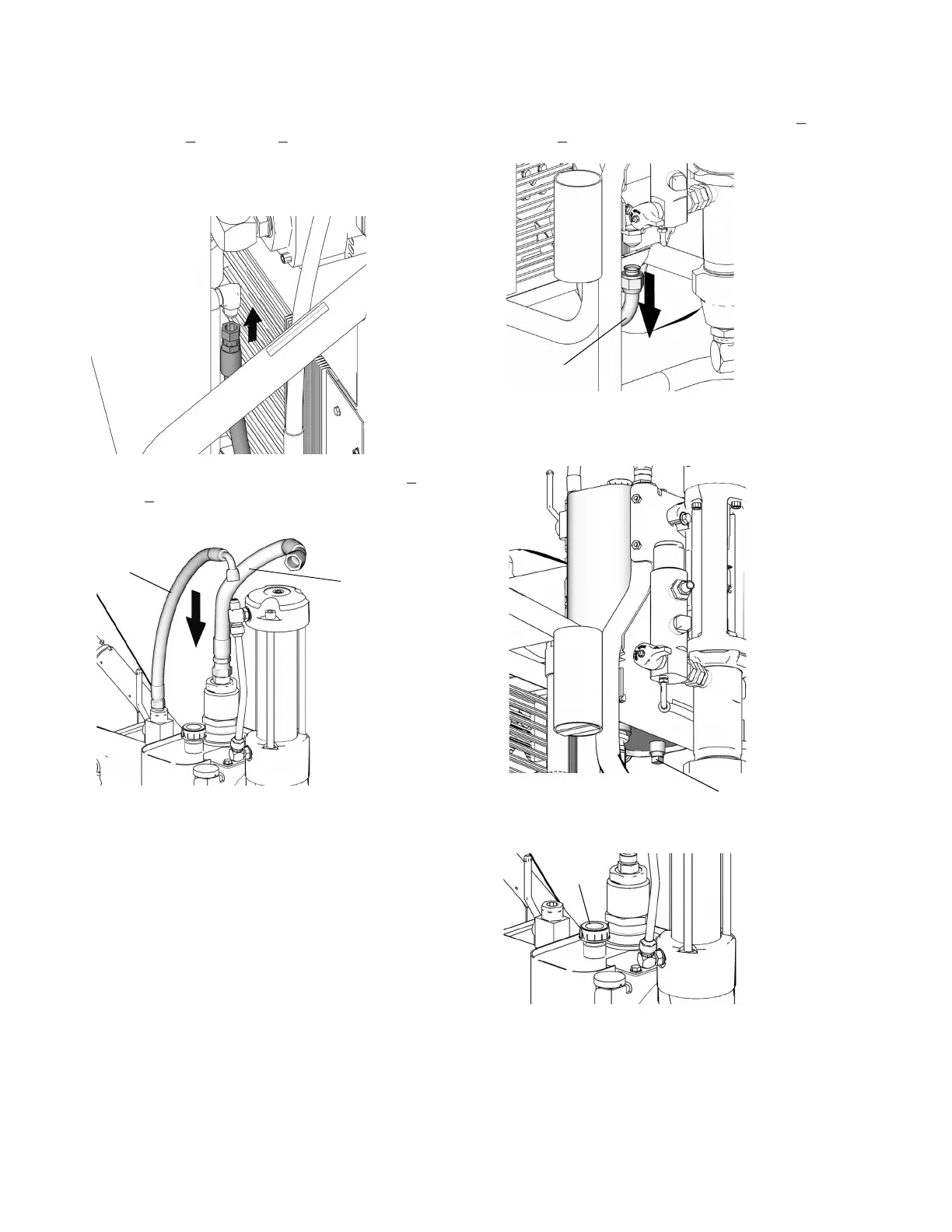

3. Replace bolts (86) and nuts (84). Tighten bolts.
Torque to 125 + 10 in-lb 14 + 1.1 N•m).
4. Connect coolant line to reservoir (64). Torque to
225 in-lb (14.1 N•m).
5. Reattach return lines (100, 101). Torque to 450 +
10
in-lb (51 + 1.1 N•m).
6. Reattach suction hose (153). Toque to 600 +
10
in-lb (68 + 1.1 N•m).
7. Verify drain plug has been replaced. Fill oil reservoir
with oil to high mark on dip stick (approximately 3.5
gallons).
8. Replace cap (27).
ti7766
101
ti7777
100
153
ti7785
Drain Plug
ti7784
27
ti7785
