Removing Handle
30 311283J
Removing Handle
Fixed Mounting (optional)
To prevent damaging the unit when transporting it
in a truck or on a trailer, Graco recommends fixed
mounting to the vehicle.

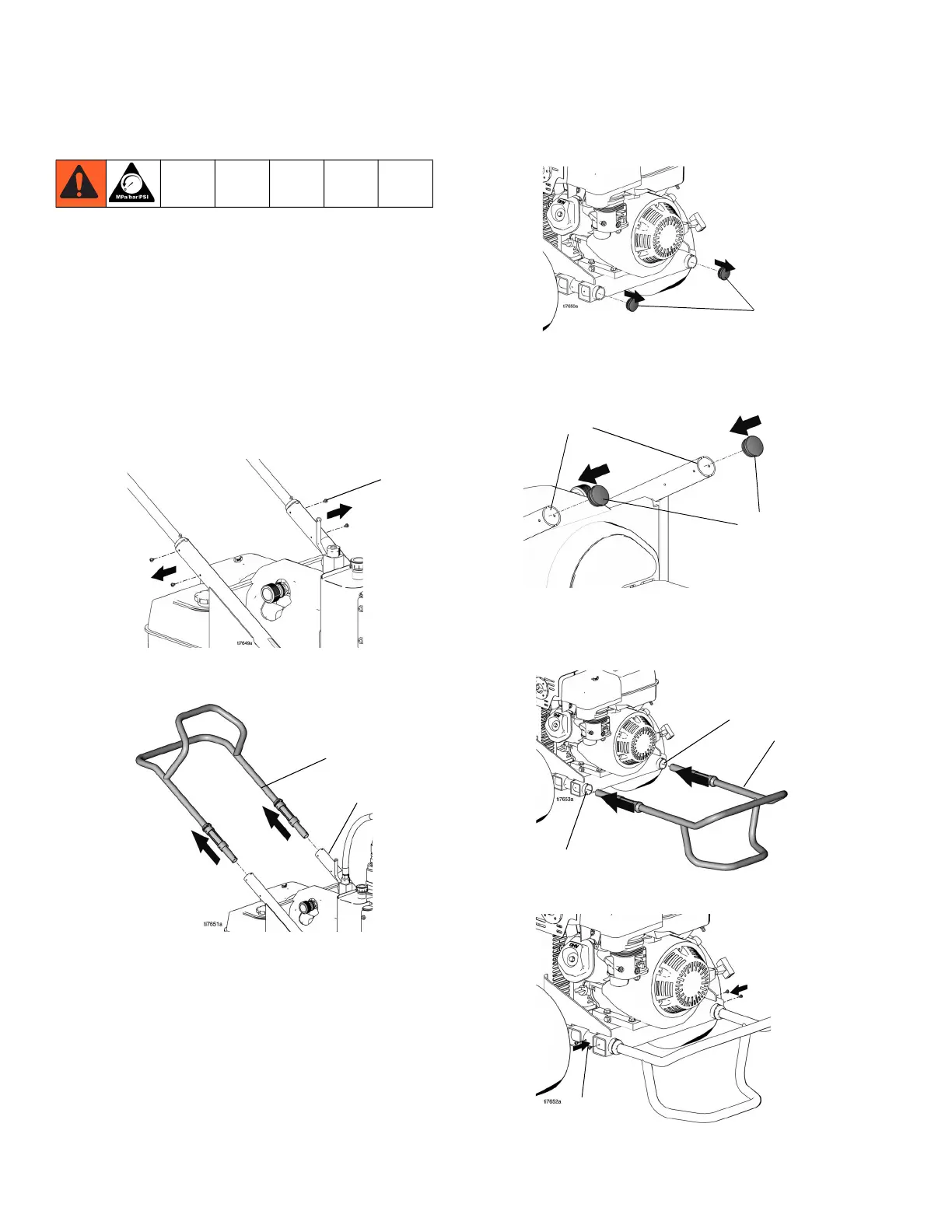

Repositioning Handle
Before you can secure the unit to a truck or trailer bed,
you must reposition the handle.
1. Remove four handle sleeve screws (143).
2. Pull handle assembly (25) out of upper frame tubes
(1).
3. Remove frame tube plugs (120) located behind the
wheels.
4. Insert plugs (120) in upper frame handle tubes (a).
5. Insert handle assembly (25) into lower frame tubes
(b). The hose bracket should face down. Adjust to
appropriate in/out location.
6. Install sleeve screws (143) in lower frame tubes.
143
25
1
120
120
(a)
25
25
(b)
(b)
143
