Changing Hydraulic Fluid Filter
311283J 25
Changing Hydraulic Fluid Filter
Removal
1. Relieve pressure, page 5.
2. Loosen and remove hose (101) from fitting (103).
3. Remove filter housing (111) from reservoir (64).
4. Remove bottom filer cap (155) from housing (111).
5. Pull filter (108) off cap (155).
Installation
1. Install new o-ring (113) from kit.
2. Install new filter (108) over cap (155).
3. Install cap (155) and filter (108) in filter housing
(111). Hand tighten cap till snug. Then torque to
375 +
10 in-lb (42 + 1.1 N•m).
4. Install filter housing (111) into reservoir.
5. Install fitting (103) in filter housing (111). Torque to
600 +
10 in-lb (67.8 + 1.1 N•m).
6. Reattach hose (101) to fitting (103). Torque to
450 +
10 in-lbs (51 + 1.1 N•m).

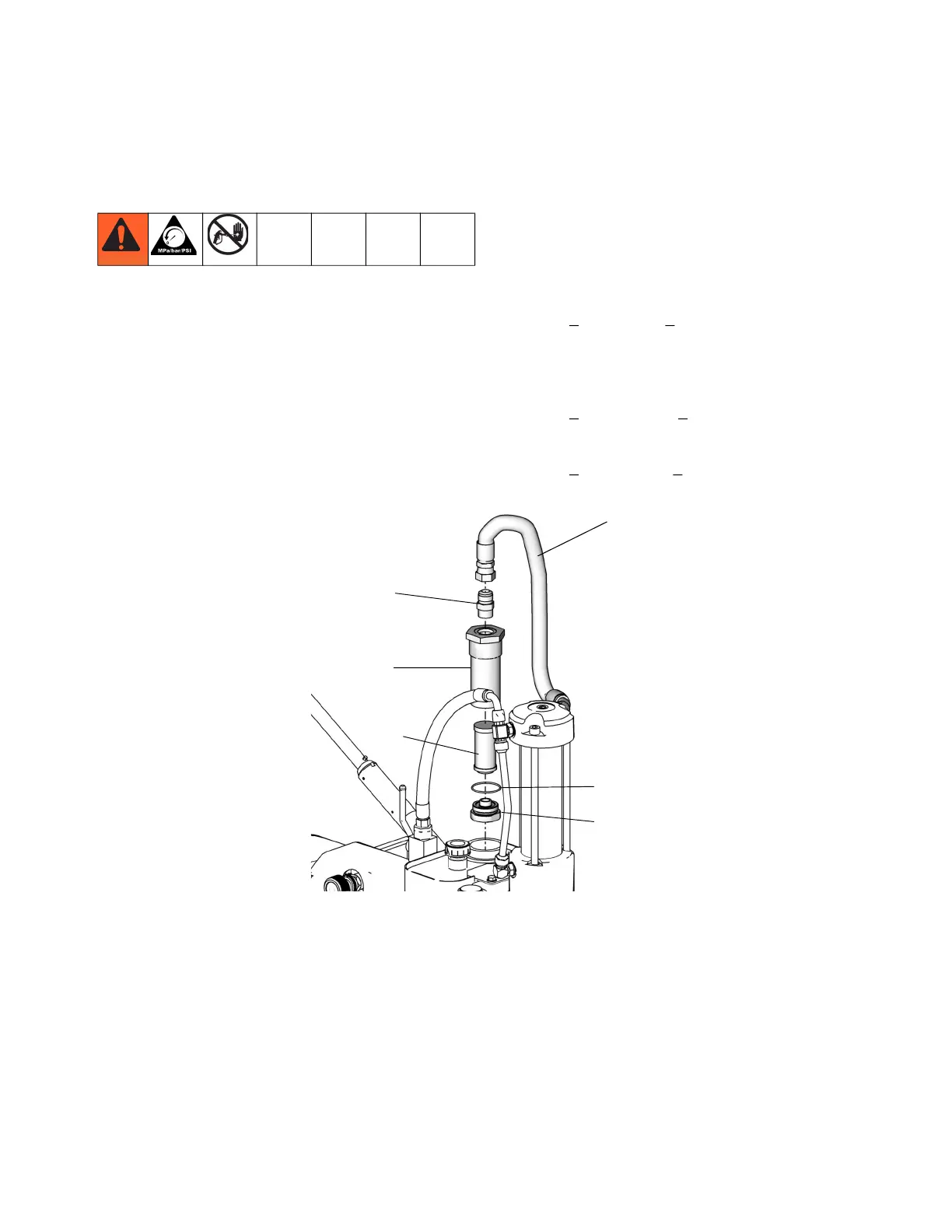

103
111
155
113
101
108
ti7763
