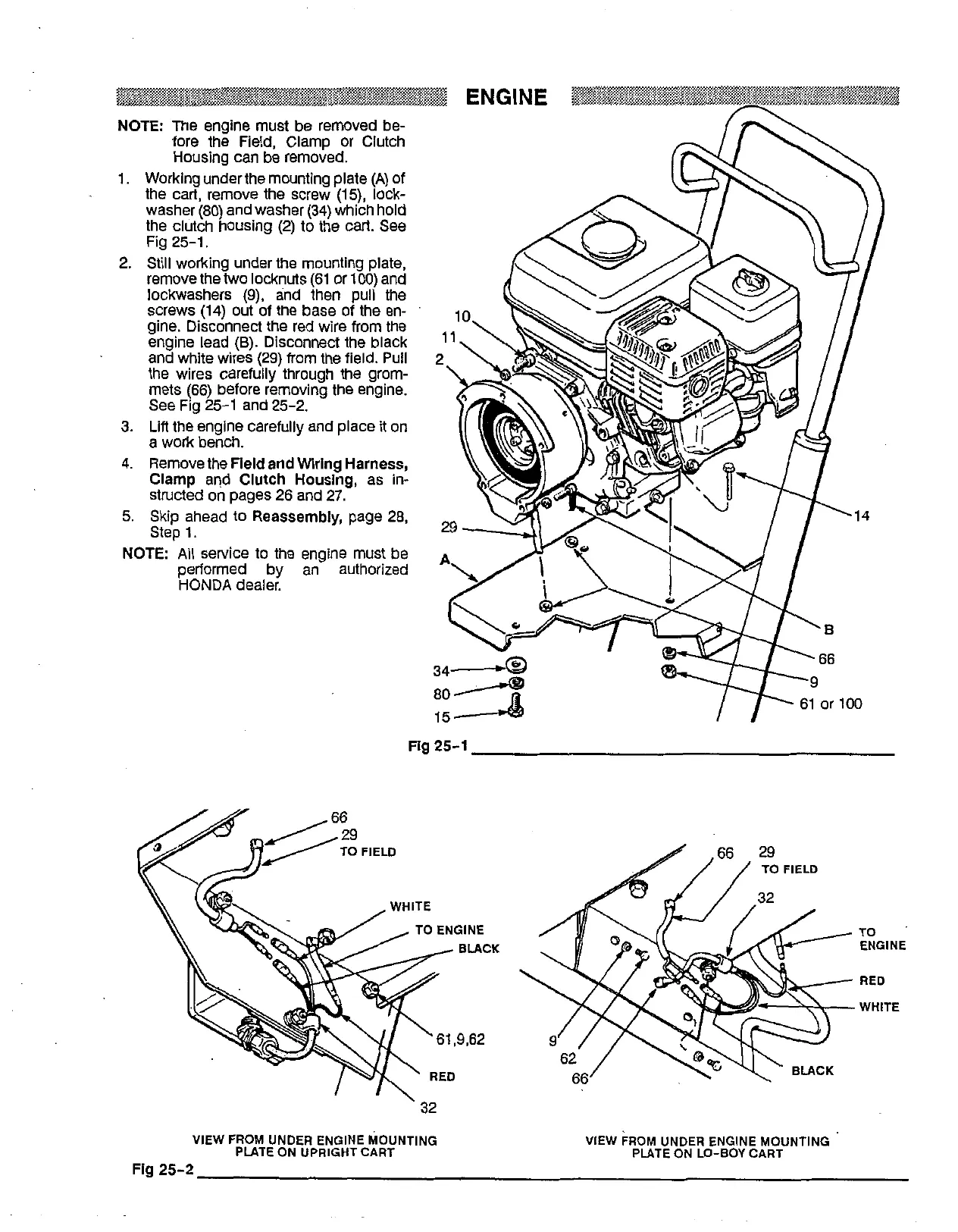

Workinq under the mountina plate
(A)
of
1-2
the cart, remove the screw'(15), iock-
washer
(80)
and washer
(34)
which hold
the clutch housing
(2)
to
the
cart.
See
Fig
25-1,
Still working under the mounting plate,
remove the
two
locknuts
(61
or
100)
and
lockwashers
(9),
and then pull the
screws
(14)
out of the base of the en-
gine. Disconnect the red wire from the
engine lead
(B).
Disconnect the black
and white wires
(29)
from
the field.
Pull
the wires carefully through the grom-
mets
(66)
before removing the engine.
See Fig
25-1
and
25-2.
.
Lift the engine carefully and place it on
a work bench.
.
Remove the
Field and
Wiring
Harness,
Clamp
and
Clutch
Houslna.
as in-
structed on pages
26
and
27-
.
Skip ahead
to
Reassembly,
page
28,
Step
1.
29
NOTE:
All
service
to
the
enpine must be
A
Y@,O
performed by an- authorized
HONDA dealer.
I
I\
'
32
Fig
25-1
TO
ENGINE
RED
WHITE
PLATE ON UPRIGHT CART
VIEW
FROM
UNDER ENGINE
MOUNTING
VIEW
FROM
UNDER
ENGINE
MOUNTING
PLATE ON LO-BOY CART
Fig
25-2
