NOTE: A standard steering wheel puller is required to re-
move the clamp. Two
1/4-28 x 3 or 4 in. long
screws are also needed.

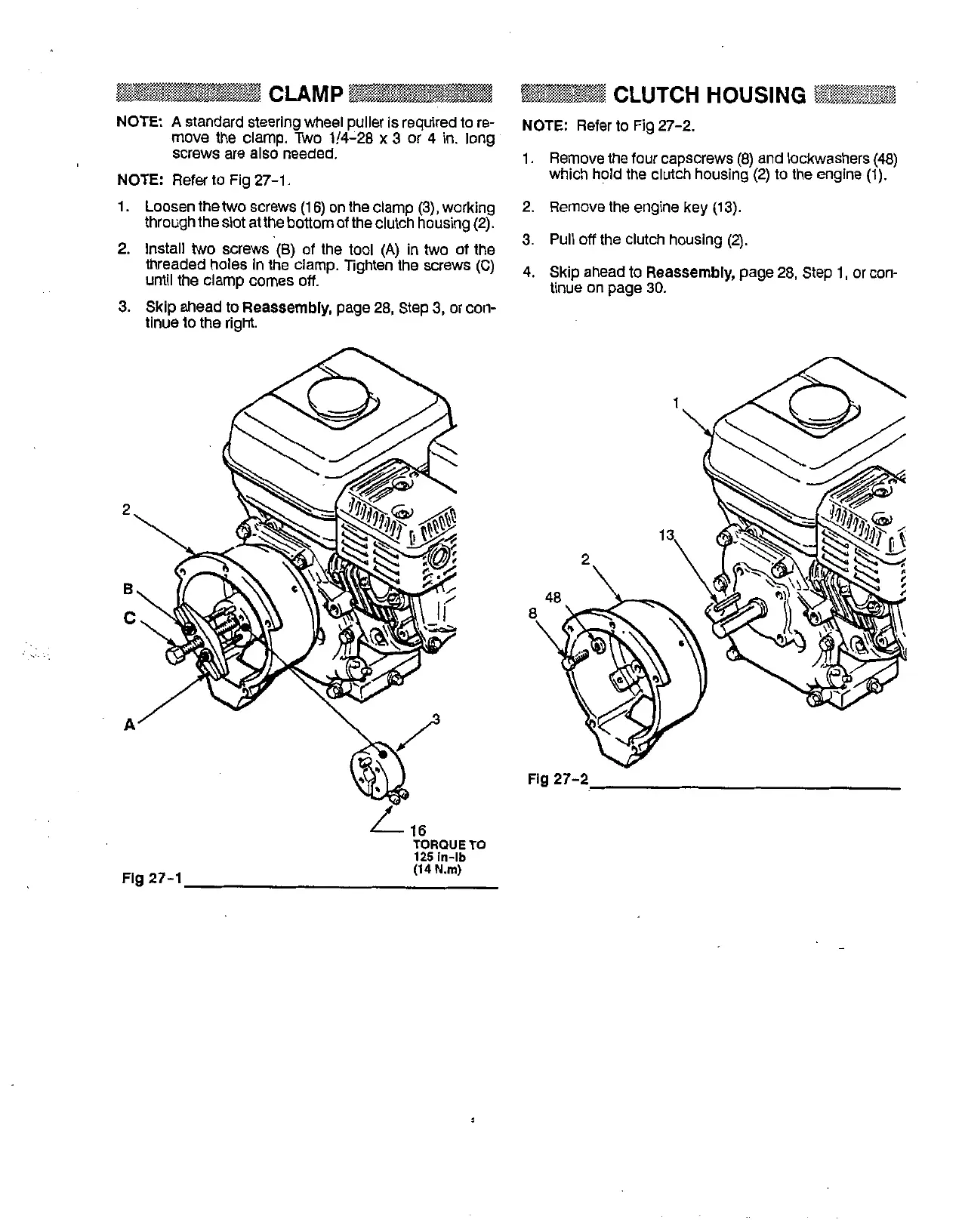

NOTE: Refer to Fig 27-1.
1. Loosen the two screws (1 6) on the clamp (3), working
through the Slot atthe bottom of the clutch housing
(2).
2.
Install two screws (5) of the tool (A) in two of the
threaded holes In
the clamp. Tighten the screws (C)
until the clamp comes off.
3. Skip ahead to Reassembly, page 28, Step 3, or con-
tinue
to the right.
1. Remove the four capscrews (8) and lockwashers (48)
2.
Remove the engine key (13).
3.
Pull off the clutch housing (2).
which hold the clutch housing (2) to the engine (1).
4. Skip ahead to Reassembly, page 28, Step 1, or con-
tinue
on page 30.
. ,.
..
A’ \/3
f
Fig 27-2
L 16
TORQUE TO
125 In-lb
(14 N.m)
Fig 27-1
