On/Off Switch
Removal
1.
Relieve pressure; page 4.
2. Fig. 11. Remove five screws (307) and
cover (322).
3. Disconnect two wires (A) from ON/OFF
switch (309).
4. Press in on two retaining tabs on each side of
ON/OFF switch (309) and remove.
Installation
1. Install new ON/OFF switch (309) so tabs of switch
snap into place on inside of pressure control
housing.
2. Connect two wires (A) to ON/OFF switch.
3. Install pressure control cover (322) with five
screws (307).

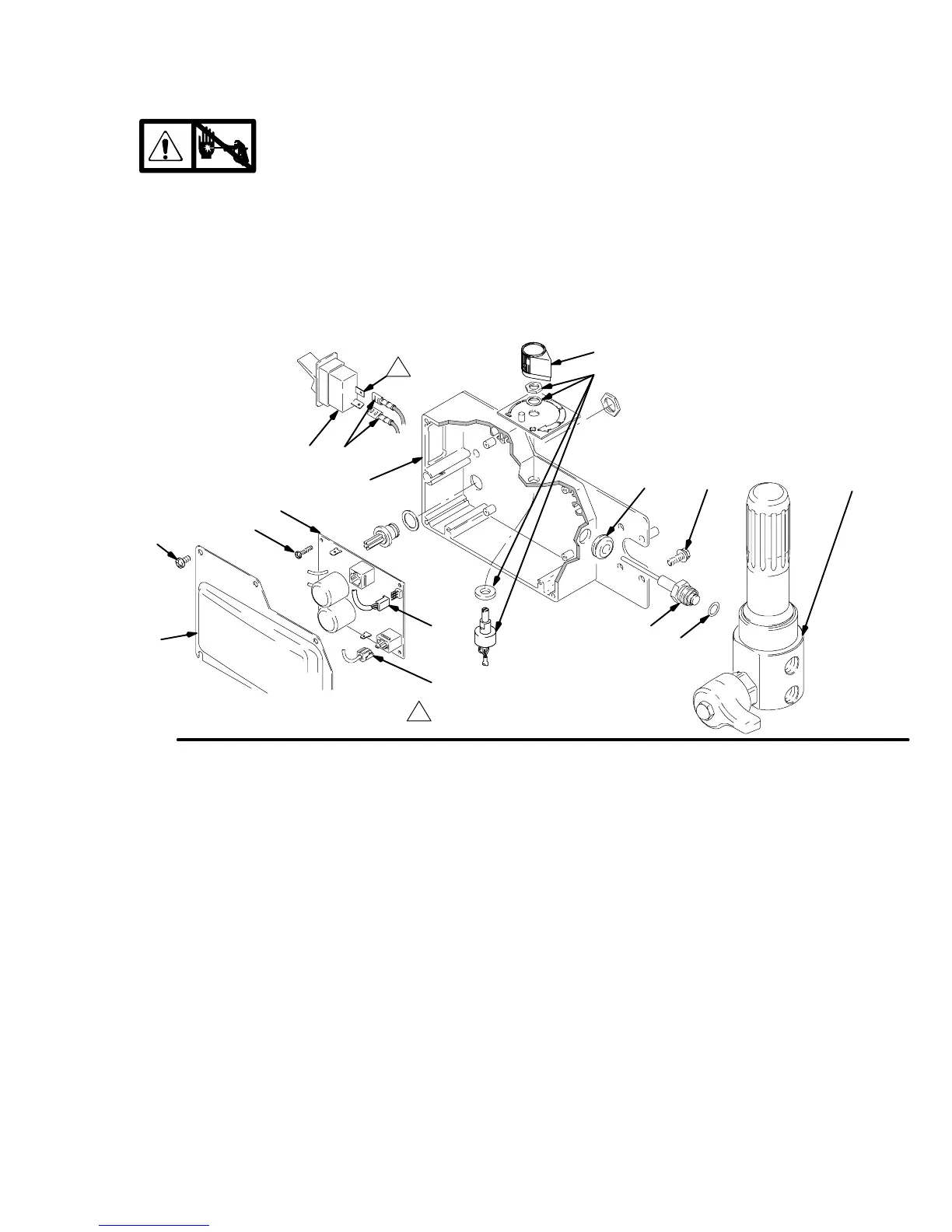

Fig. 11
8711A
322
307
A309
302
303
E
D
313
310
318z
318aa
318a
1
Locate switch terminals as shown
1
315 319
301
To Next Page
