20 308864
Parts List -- Sprayer
Models 232624
REF
NO. PART NO. DESCRIPTION QTY
REF
NO. PART NO. DESCRIPTION QTY
301 193653 PLATE, control 1
302 241093 BOARD, PC 1
303 111839 SCREW , mch pan, 6--32 x 1/2 in. 5
304 240776 HARNESS, wiring. 1
305 193497 GASKET, control 2
306 193652 HOUSING, control box 1
307 114631 SCREW , mch, pan hd 10
308 193052 PLATE, instruction 1
309 114277 SWITCH, rocker, (spst) 1
310 241443 POTENTIOMETER, pressure control 1
311 193657 GASKET, potentiometer 1
312 193654 PLATE, instruction 1
313 114273 KNOB, potentiometer 1
314 193072 LABEL, control 1
315 114629 GROMMET, transducer 1
318 FILTER, fluid 1
318a 193651 HOUSING, filter 1
318b 104361 O-RING 1
318c 186075 SUPPORT, filter 1
318d 167025 STRAINER, mesh, 60 1
318e 171941 SPRING, compression 1
318f 192706 BOWL, filter 1
318g 193710* SEAL, valve 1
318h 193709* SEAT, valve 1
318j 194102* HANDLE, valve 1
318k 114688* NUT, cap, hex hd 1
318l 114708* SPRING, compression 1
318m 114797* GASKET 1
318n 245103* VALVE 1
318z 240314 TRANSDUCER, pressure control 1
includes 318aa
318aa 111457 O-RING 1
319 110997 SCREW , flange, hex 3
320 114532 TIE, wire, twist 1
321
Y 189246 LABEL, warning 1
322 241444 COVER, pressure control 1
323 193684 LABEL, identification 1
* Drain valve replacement kit 245103 available; includes
318g through 318n
Y Replacement warning labels m ay be ordered f ree of charge
Fig. 18
8714A
Green
Violet
Pressure
transducer
Potentiometer
Red
Black

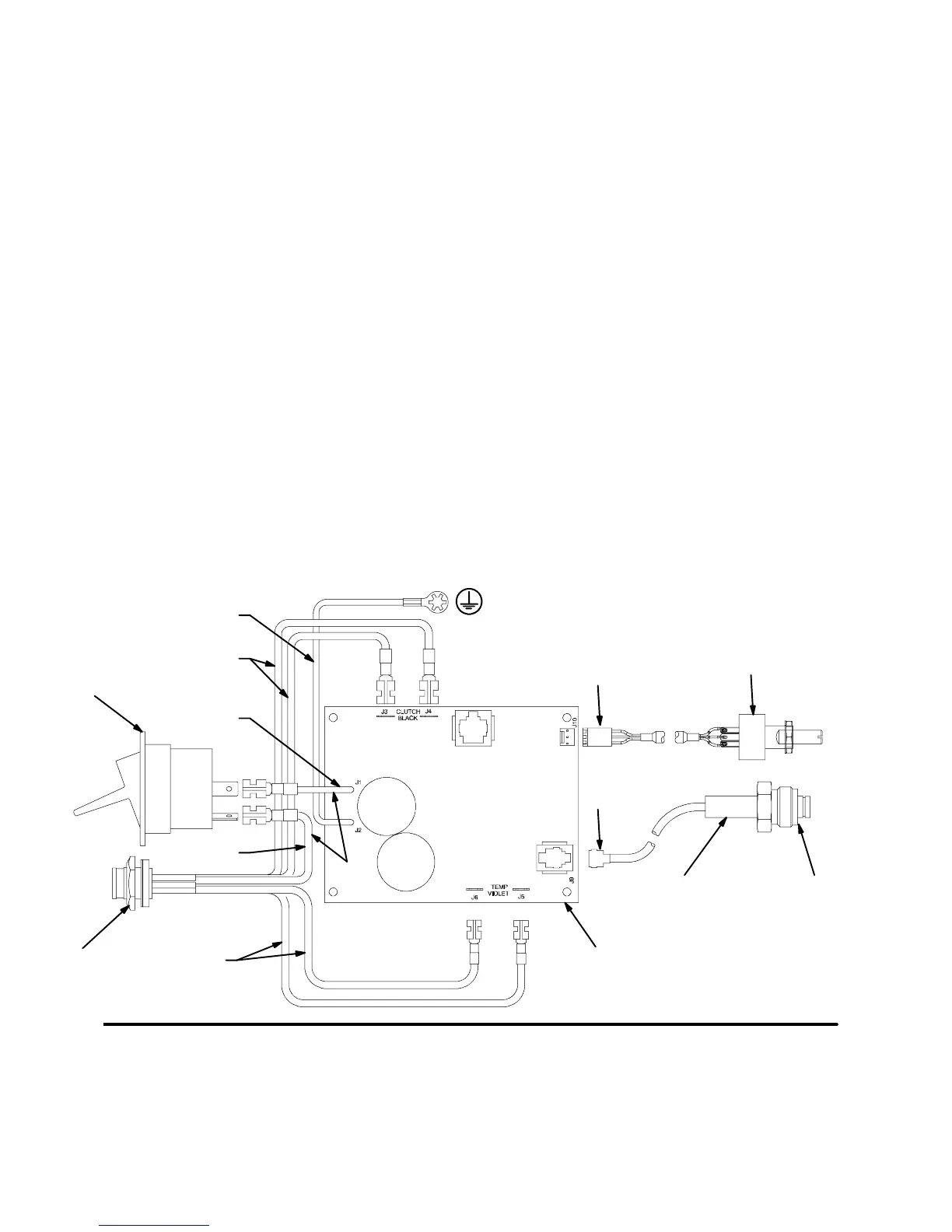

Pressure Control Wiring Diagram
Red
309
(Ref)
304
(Ref)
318z
(Ref)
310
(Ref)
302
(Ref)
D
E
A
318aa
(Ref)
To Next Page
