Graco GMax 232624 User Manual

8 308864
Drive Housing
1.
Relieve pressure; page 4.
Removal
2. Fig. 4. Remove bearing housing. Do Removal of
Bearing Housing and Connecting Rod proce-
dure on page 7.
3. Remove two screws (41) and lockwashers (10).
4. Remove four screws (9) and lockwashers (10)
from pinion housing (8).
5. Lightly tap around drive housing (12) to loosen
drive housing. Pull drive housing straight off pinion
housing (8). Be prepared to support gear cluster
(7) which may also come out.
C
A
UTION
Do not drop gear cluster (7) when removing drive
housing (12). Gear cluster is easily damaged. Gear
may stay engaged in drive housing or pinion housing.
Installation
1. Liberally apply bearing grease (supplied with re-
placement gear cluster) to gear cluster (18) and to
areas called out by note 2. Use full 0.68 pint (0.32
liter) of grease.
2. Place bronze colored washer (12g) on shaft pro-
truding from large shaft of drive housing (12).
Note: If replacing a washer with pin holes with a
washer without pin holes, remove guide pins from
housing. Place silver colored washer (12h) on pin-
ion housing. Assemble washers (15) and (16) onto
gear (7). Align gears and push new drive housing
straight onto pinion housing and locating pins (A).
3. Install four screws (9) and lockwashers (10) to
pinion housing (8) and drive housing (12).
4. Install two screws (41) and lockwashers (10) to
drive housing (12).
5. Fig. 4. Install bearing housing. Do 1. through 6. of
Bearing Housing and Connecting Rod proce-
dure on page 7.
9
10
12h
12g
41
10
12
8
A
7
A

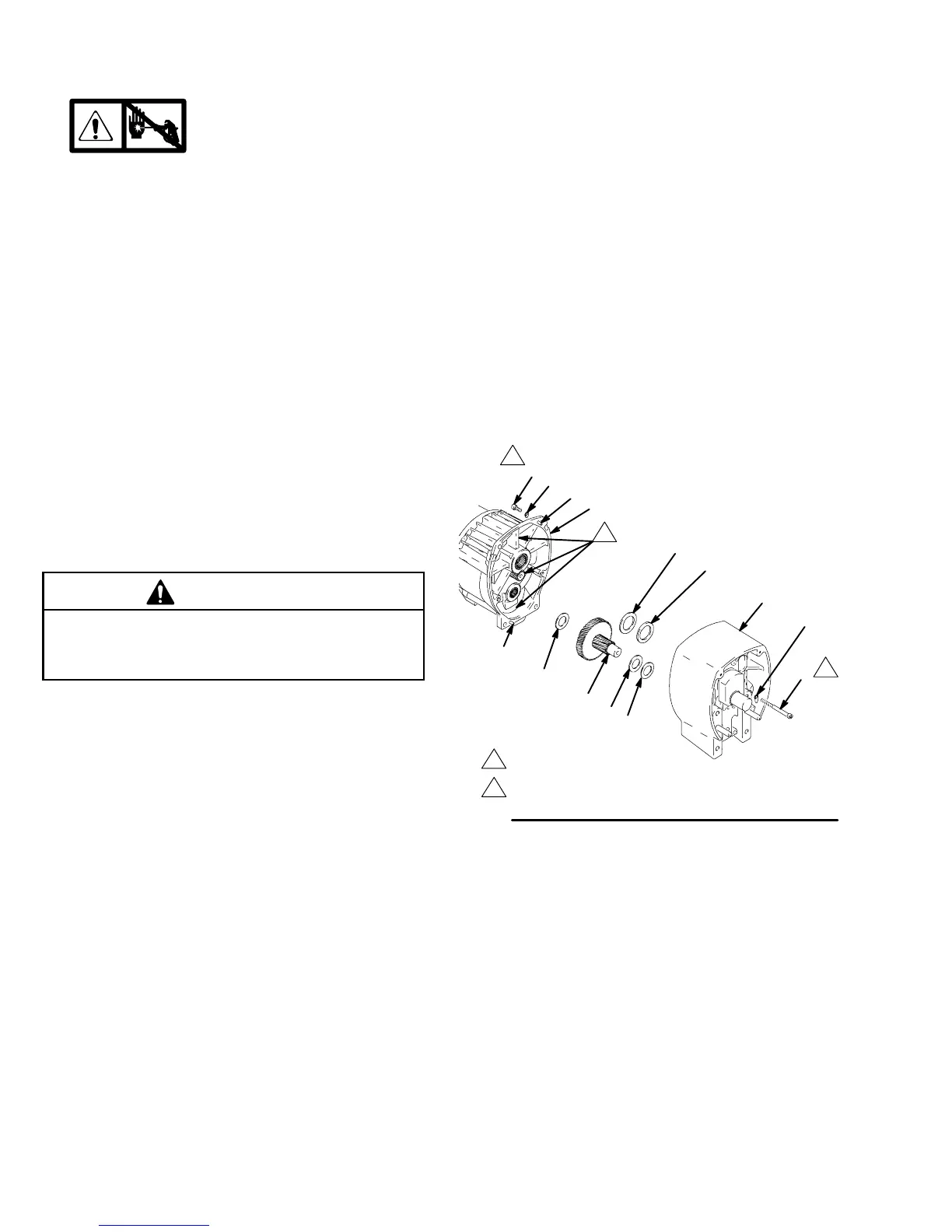

Fig. 4
2
2
Apply remaining grease to these areas
1
Torque to 200 in-lb
1
1
15
16
15
TI0178B
