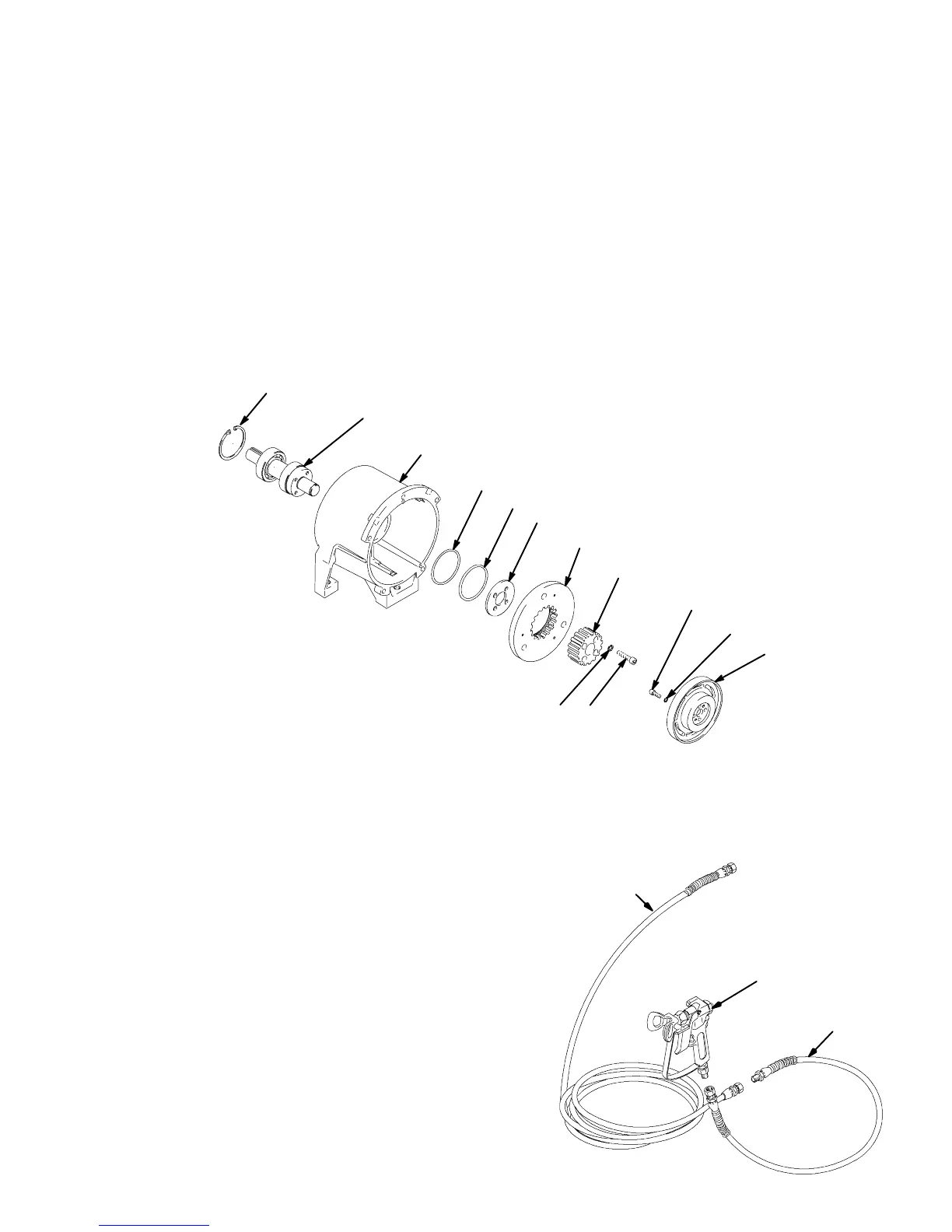

Parts List & Drawing --Clutch Assembly
Ref No. 3
Clutch Housing Assembly 241306
Includes 3b, 3c, 3e, 3j and 3k
Ref
No. Part No. Description Qty
Ref
No. Part No. Description Qty
3a* 108803 SCREW, hex, sch 4
3b 114962 RING, retaining, internal 1
3c 241305 SHAFT, drive, input 1
includes 3b,3j, and 3k
3d* 193510 HUB, armature 1
3e 193493 HOUSING, clutch 1
3f 194059 STOP, armature 1
3g* 193681 ARMATURE, clutch 1
3h* 105510 WASHER, lock, spring 8
3j 115078 O-RING 1
3k 115079 O-RING 1
* Clutch replacement kit 241113 includes 3a, 3d, 3g, 3h, 4, 6,
39
3c
3b
3a*3h*
3e
3f
3g*
3d*
8745A
6*(Ref)
39*(Ref)
4*(Ref)
3j
3k
Parts -- Complete Sprayer
Model 232625
Includes items 125 to 128
Ref.
No. Part No. Description Qty.
125 232624 CONVERTIBLE GMax 5900C Sprayer
See parts list on page 16 1
126 240794 HOSE, grounded, nylon; 1/4” ID;
cpld 1/4 npsm(fbe); 50 ft (15 m);
spring guards both ends 1
127 238358 HOSE, grounded, nylon; 3/16” ID;
cpld 1/4 npsm(m) x 1/4 npsm(f) swivel;
3 ft (0.9 m); spring guards both ends 1
128 220955 “CONTRACTOR” SPRAY GUN
Includes RAC 5
t DripLesst Tip Guard
and 517--size SwitchTip
t
See 309091 for parts 1
128
127
126
0160
