Parts -- Basic Sprayer
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 183401 KEY, parallel 1
2 193548 PULLEY 1
3 241306 CLUTCH HOUSING ASSY 1
4 241113 ROTOR, clutch, 5 in. 1
5 100644 CAPSCREW, sckt hd,, 1/4--20 x 3/4 in. 4
6 105510 LOCKWASHER, spring, 1/4 in. 11
7 241440 GEAR, combination 1
8 241112 PINION ASSEMBLY; Parts, page 18 1
9 101864 CAPSCREW, socket head, 4
1/4--20 x 3/4 in.
10 104008 WASHER, lock, spring 4
11Y 194125 LABEL, danger 1
12 241011 DRIVE HOUSING 1
13 241308 COVER, HOUSING, DRIVE 1
14 241012 CONNECTING ROD KIT 1
15 114672 WASHER, thrust 2
16 114673 WASHER 1
17 241015 BEARING HOUSING 1
18 183169 SPRING, retaining 1
19 183210 PIN, straight, 3/8 x1/8 in. 1
20 193031 NUT, retaining 1
21 240291 PUMP, displacement;1
Parts, Manual 308798
25 114425 BUSHING, strain relief 1
26 114794 CORD, power, convertible 1
27 112395 SCREW, 3/8--16 x 3/4 in. 3
39 101682 SCREW , cap, sch 4
40 237686 GROUNDING CLAMP & WIRE 1
41 114686 SCREW , cap, sch 2
42 PRESSURE CONTROL 1
Parts, page 19
43 112798 SCREW , thread forming 1
44 114666 CAPSCREW, socket head, 4
45 106115 LOCKWASHER, spring, 3/8 in. 4
46 155699 ELBOW , street 1
47 222516 FLUID HOSE, 3/8 in. ID, 3/8 npt 1
couplings, 2.5 ft long, spring guards 1
48 193682 CAP, end; 2
49 154636 WASHER, 5/8 in. 2
50 101242 RING, retaining 2
51 104811 HUBCAP 2
52 179811 WHEEL, semi--pneumatic 2
56 114818 SCREW , self--tap 4
57 112746 LOCKNUT, 5/16--18 2
58 240131 PLUG, packless 1
59 192719 HANGER, pail 1
60 164672 ADAPTER 2
61 162485 NIPPLE, 3/8--18 npsm(m) x 1/4 npt(m) 1
62 240712 FRAME, cart 1
63 110243 RING, retaining 2
64 183350 WASHER 2
65 241003 GUARD, back 1
68 193547 BELT, 4V 1
71 111801 SCREW, cap, flng hd 4
72 114827 SPACER, hex 2
74 194099 GUARD, belt front 1
75 191084 SLEEVE, cart 2
76 239998 CART HANDLE 1
79 114810 EXTRUSION, trim 2
81 112827 BUTTON, snap 2
82 114809 BUSHING, strain relief 1
83 108795 SCREW , cap, sch 4
86 110838 LOCKNUT, w/nylon insert, 5/16--18 4
87 114391 SCREW, grounding 1
88 114687 CLIP, retainer 1
90 114806 EXTRUSION, gasket 1
101 241935 LATCH, adjustable 1
102 110885 SCREW, mach, pnhd, thrd forming 2
103 108947 NUT, square 2
104 187147 STRAINER 1
105 241718 .DEFLECTOR 1
106 194194 CLIP, spring 1
107 193097 TUBE, intake 1
108 194178 HOSE, coupled 1
109 110249 ADAPTER, male elbow, 90_ 1
111 206994 THROAT SEAL LIQUID, 1
8 oz (0.27 liter) (not shown)
117 114271 STRAP, retaining 1
122 114984 SCREW, tapping, pnhd, #10 x 1/2 in. 2
131 290228 LABEL, caution 1
132 ENGINE ASSY See Engine Detail 1
A 183401 KEY, parallel 1
B 193548 PULLEY 1
C 110996 NUT, flng hd, hex 8
D 114653 SCREW, cap, flng hd 4
E 112406 CAPSCREW, hex hd 2
F 194198 GUARD, lower engine 1
G 194087 HANDLE, slide 1
H 114530 ENGINE, 5.5 HP 1
JY 194126 LABEL, warning 1
K 114805 JACK, 1/4, motor 1
L 194181 BOX, junction, engine 1
M 114816 NUT, hex 1
N 114813 SCREW, mach, hex washer hd 1
P 109099 BUSHING, snap 1
R 112586 SCREW, cap, hex hd, flanged 2
S 241313 PLATE, mount motor 1
T 194130 BRACKET, clamp 1
U 114959 BUSHING, 3/4 in. (3 bolts, 3 washers) 2
V 194414 BRACKET, J-box 1
W 194925 BRACKET, tension 1
X 192014 PLATE, indicator 1
Y 113084 RIVET, blind (not shown) 2
Z 111800 SCREW , cap, flanged hd 2
V
G
B
R
D
C
C
T
Z
S
F
E
M
8743
A
A
U
W
L
K
P
N

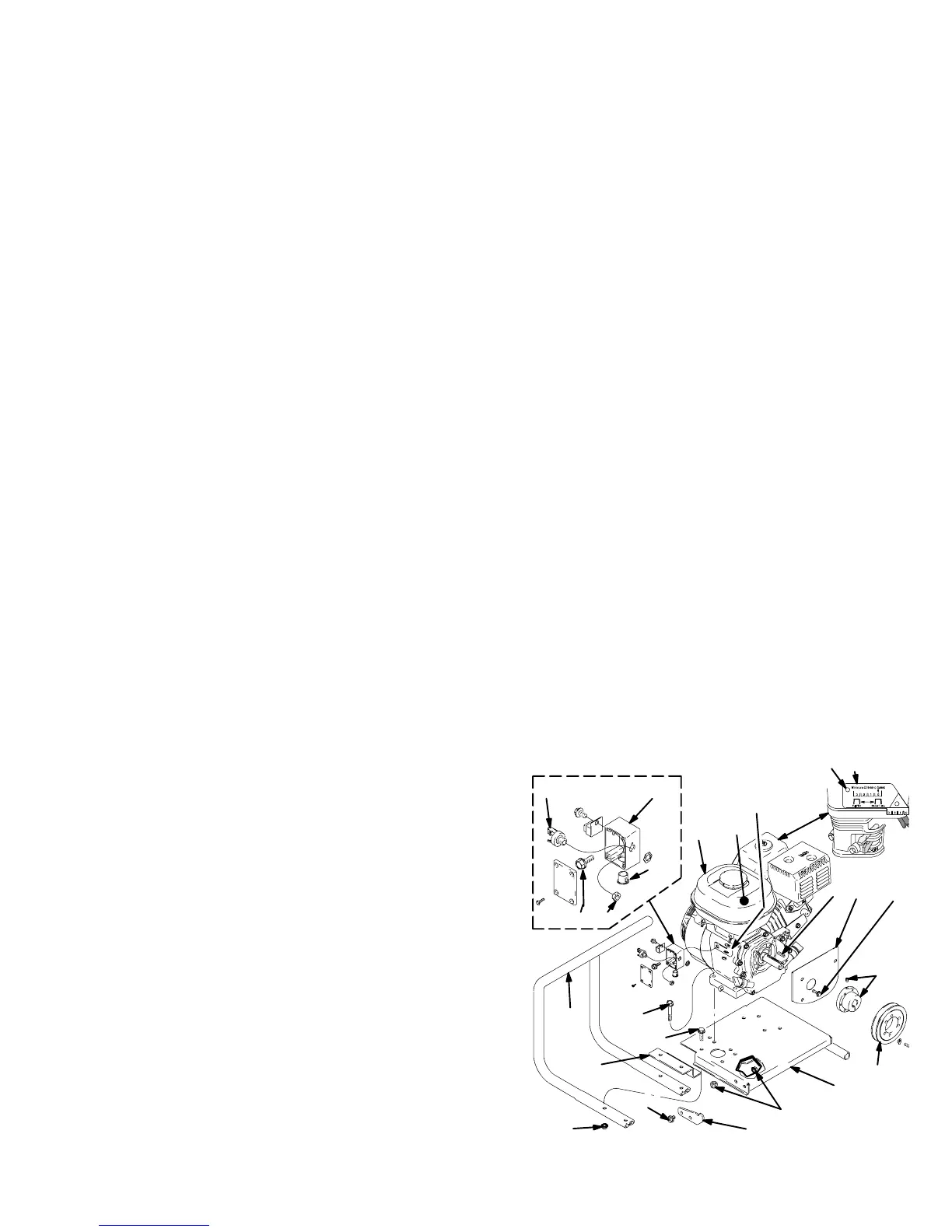

Engine Detail
Y
X
J
H
Y Replacement Danger and Warning labels, tags and
cards are available at no cost.
