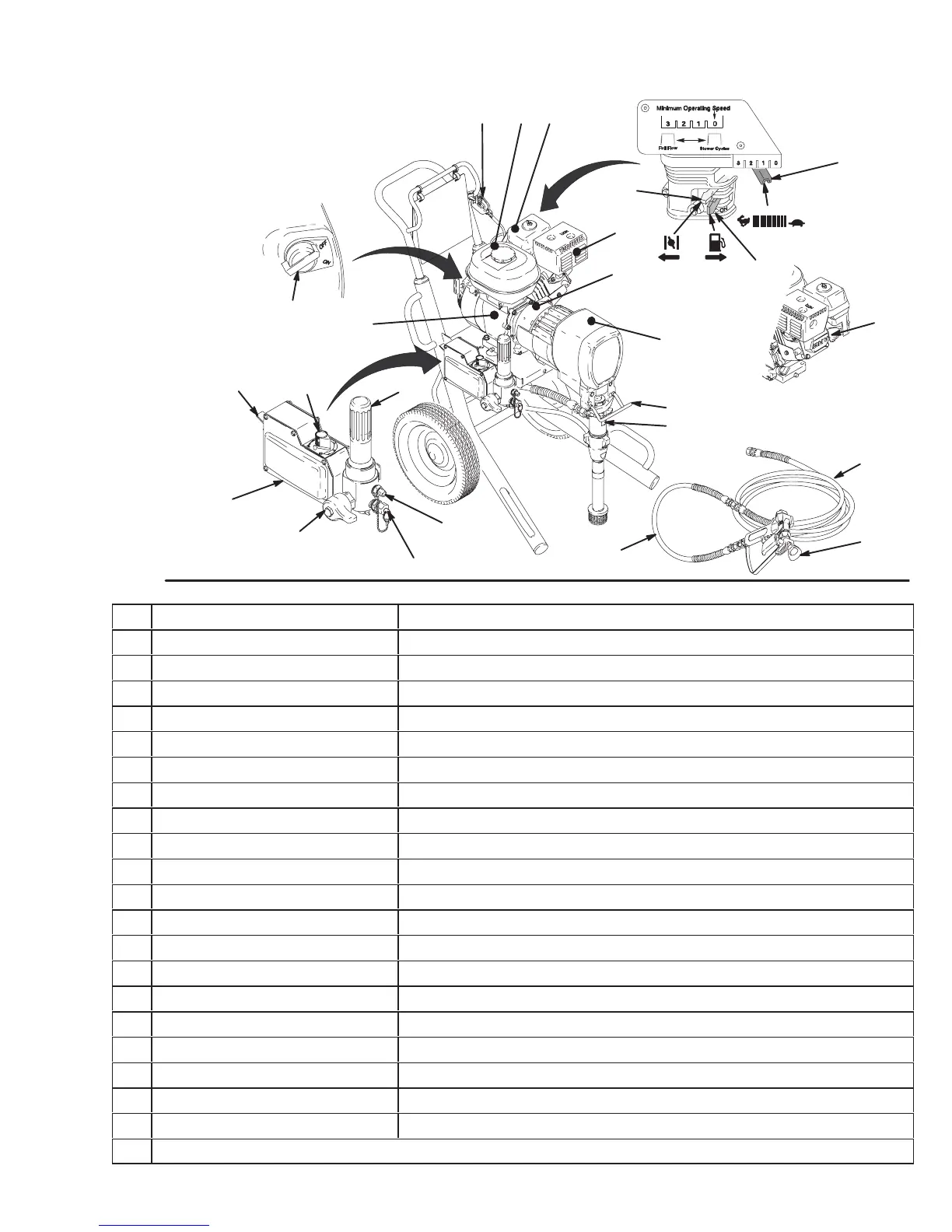

Component Identification and Function
8696A
Fig. 1
S
U
W
T
X
V
P
A
B
C
E
F
G
H
J
K
202Main hose
203Whip end hose
204Contractor gun with RAC IV
DripLess tip guard and 517 size SwitchTip
203
204
202
M
N
L
Model 232611
R
D
A Pressure Control Switch ON/OFF, enables/disables clutch function and pressure control
B Pressure Adjusting Knob Controls fluid outlet pressure
C Air Cleaner* Filters air entering the carburetor
D Fuel Tank* Uses 86 octane unleaded gasoline
E Muffler* Reduces noise of internal combustion
F Spark Plug Cable* Routes electrical current to spark plug
G Fuel Shutoff Lever* On/off lever to regulate fuel flow from gasoline tank to carburetor
H Choke* Enriches air/gasoline mixture for cold starting
J Throttle Lever* Adjusts engine speed for large or small orifice spray tips
K Engine Switch* Enables/disables engine operation
L Secondary Fluid Outlet Second hose and spray gun is connected here
M Pressure Control Controls clutch cycling to maintain fluid pressure.
N Primary Fluid Outlet Hose and spray gun is connected here
P Engine* 4–cycle gasoline engine
R Clutch Housing Transfers power from engine to drive assembly
S Drive Housing Transfers power from clutch to displacement pump
T Displacement Pump Provides fluid to be sprayed through spray gun
U Fluid Filter Filters fluid between source and spray gun
V Grounding Clamp and Wire Grounds sprayer system
W Pail Hanger Provides a hanger for paint pail
X Pressure Drain Valve Relieves fluid pressure when open
* For more detailed explanations of these controls, refer to the Honda Engines Owner’s Manual; supplied
