308868 11
Clutch Housing
Removal

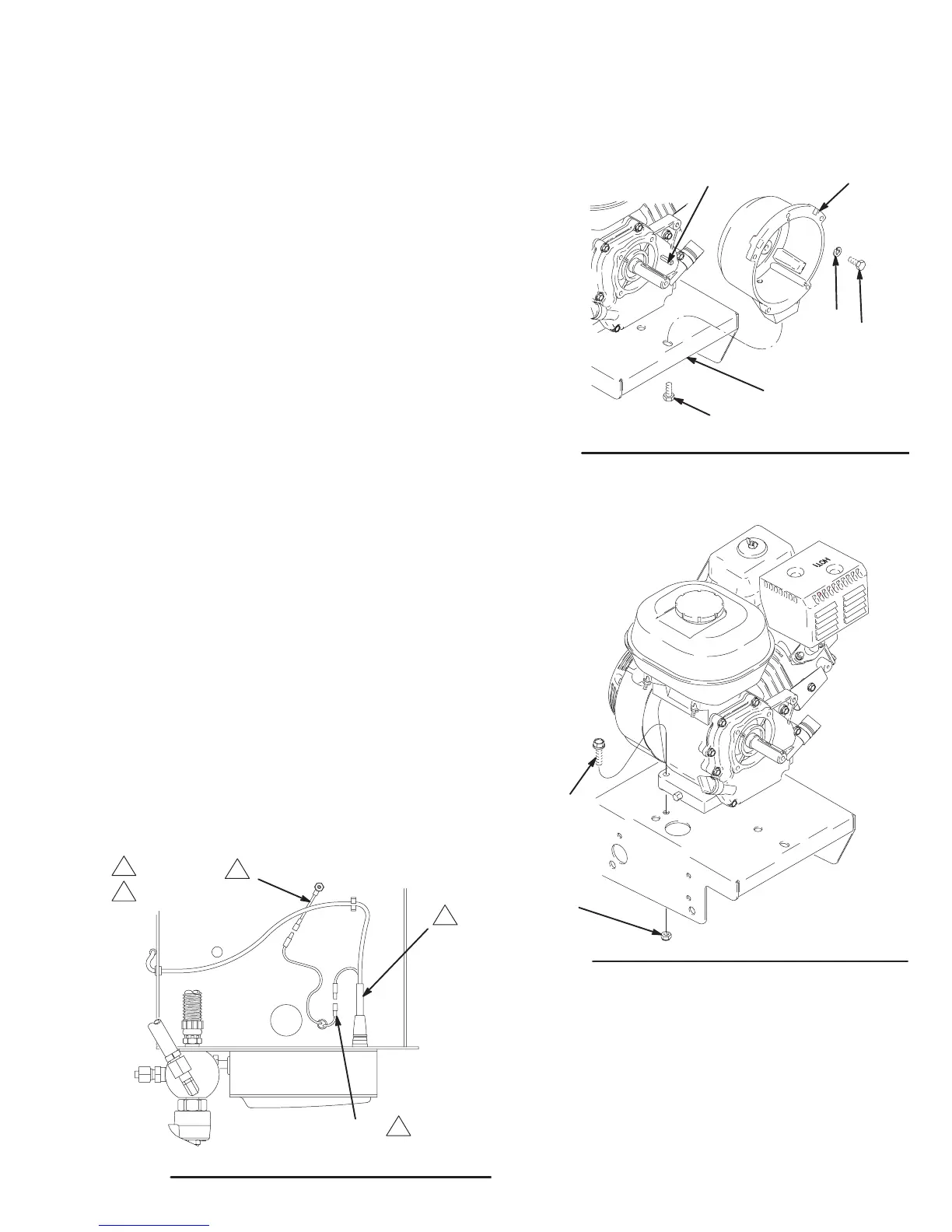

1. Fig. 12. Remove four capscrews (75) and lock-
washers (77) which hold clutch housing (5) to
engine.
2. Remove screw (15) from under mounting plate (D).
3. Remove engine key (7).
4. Pull off clutch housing (5).
Installation
1. Fig. 12. Push on clutch housing (5).
2. Install four capscrews (75) and lockwashers (77)
and secure clutch housing (5) to engine. Torque to
200 in-lb (22.6 Nm).
3. Install capscrew (15) from beneath mounting
plate (D). Torque to 26 ft-lb (35.2 Nm).
Fig. 12
75
77
5
7
15
D
8708A
Engine
Removal
1. Remove Pinion Assembly/Rotor/Field/Pinion/
Clutch, Clamp and Clutch Housing, as in-
structed on pages 7, 9 and 10.
2. Fig. 13. Disconnect all necessary wiring.
3. Fig. 14. Remove two locknuts (71) and screws
(70) from base of engine.
4. Lift engine carefully and place on work bench.
NOTE: All service to the engine must be performed by
an authorized HONDA dealer.
Fig. 13
Green
1
2
To the field
To the engine
1
2
Black
2
8709A
GMax 5900 only
Fig. 14
71
70
8710A
Installation
1. Lift engine carefully and place on cart.
2. Fig. 14. Install two screws (70) in base of engine
and secure with locknuts (71). Torque to 200 in-lb
(22.6 Nm).
3. Fig. 13. Connect all necessary wiring.
4. Install Pinion Assembly/Rotor/Field/Pinion/
Clutch, Clamp and Clutch Housing, as
instructed on pages 8, 9 and 10.
