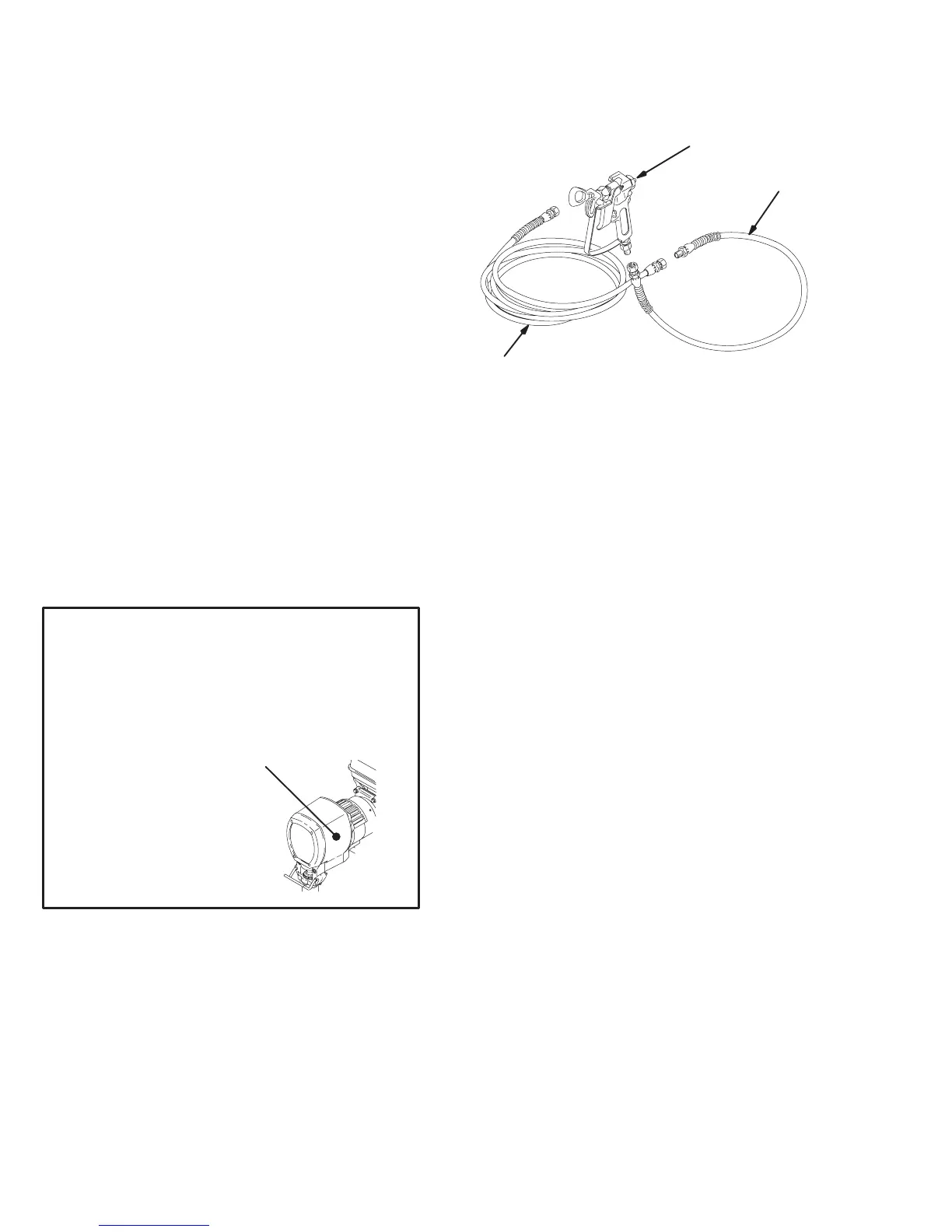

Parts List & Drawing – Complete Sprayers
Models 232611, 232613, 232621, 232623
GMax 3900 and GMax 5900 Airless Paint Sprayers
Includes items 201 to 204
Ref
No. Part No. Description Qty
201 232611 GM3900 Hi-Boy Sprayer 1
See parts list on page 15
232621 GM5900 Hi-Boy Sprayer 1
See parts list on page 15
232613 GM3900 Lo-Boy Sprayer 1
See parts list on page 19
232623 GM5900 Lo-Boy Sprayer 1
See parts list on page 19
202 240794 HOSE, grounded, nylon; 1/4 in. ID; 1
cpld 1/4 npsm(fbe); 50 foot (15 m);
spring guards both ends
3300 psi (227 bar, 27.7 MPa)
203 238358 HOSE, grounded, nylon; 3/16 in. ID;
cpld 1/4 npsm(m) x 1/4 npsm(f) swivel;
3 foot (0.9 m); spring guards both ends 1
204 220955 CONTRACTOR SPRAY GUN
Includes RAC IV
 DripLess Tip Guard
and 517–size SwitchTip
See 307614 for parts 1
204
203
202
0160
Accessories
French 185956
Spanish 185961
German 186041
Greek 186045
Korean 186049
English 194125
Apply other
language here
03497A
DANGER LABELS
An English language DANGER label is on your
sprayer. If you have painters who do not read En-
glish, order one of the following labels to apply to
your sprayer. The drawing shows the best place-
ment of these labels for good visibility.
Order the labels from your Graco distributor.
Displacement Pump Repair Kits
Packing repair kits.
GMax 3900 239928
GMax 5900 240248
