Graco GMax
3900 - Page 26

308868 17

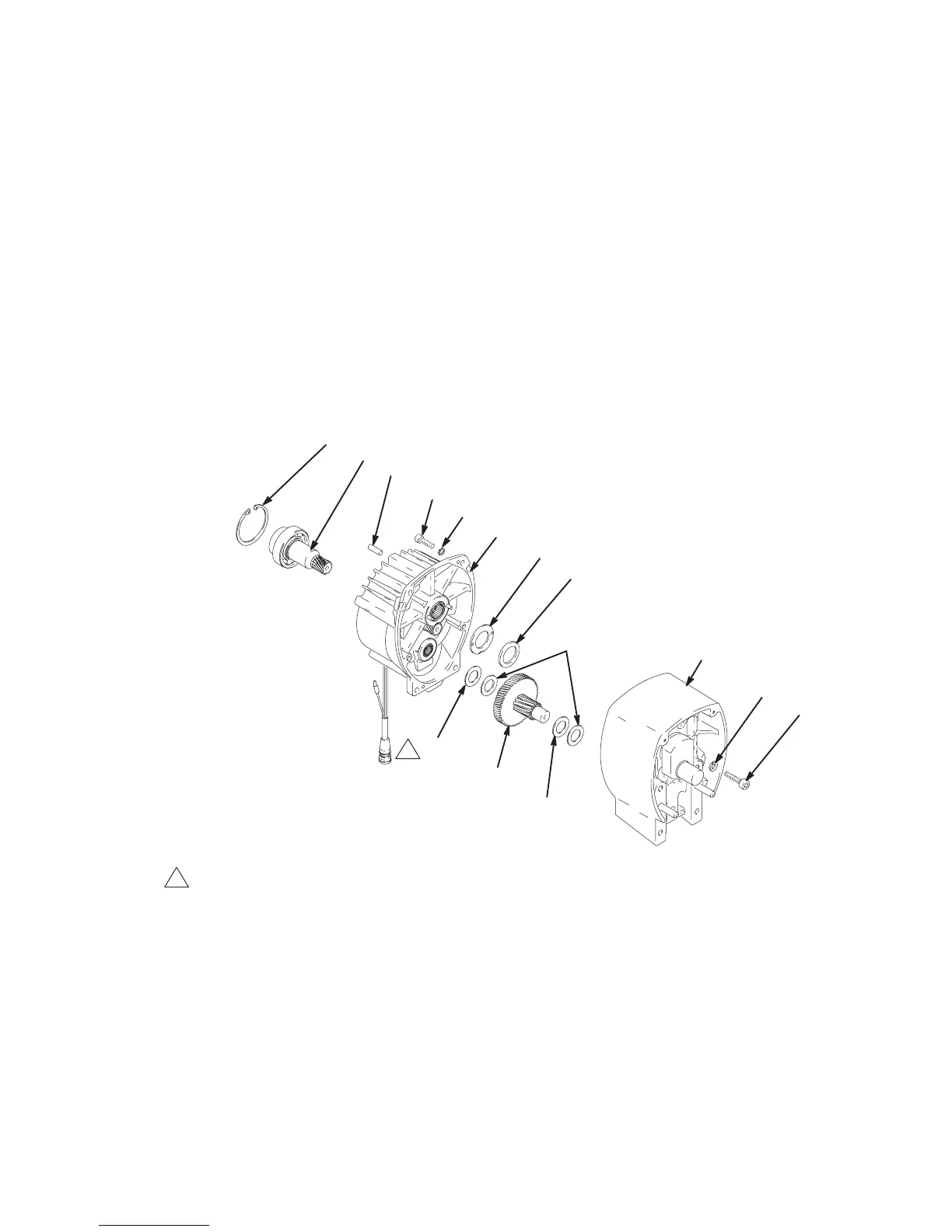

Parts List & Drawing – Pinion Assembly
Ref No. 19 and 20
Ref No. 19: Pinion Housing Assembly 241108 for
GMax 3900; Pinion Housing Assembly 241112 for
GMax 5900
Ref No. 20: Drive Housing Assembly 241007 for
GMax 3900; Drive Housing Assembly 241011 for
GMax 5900
Ref
No. Part No. Description Qty
Ref
No. Part No. Description Qty
19 PINION HOUSING 1
19b 105489 PIN 2
19d* PINION SHAFT
241110 GMax 3900, Model 232610 1
241114 GMax 5900, Model 232620 1
19e* RETAINING RING, large
113094 GMax 3900, Model 232610 1
112770 GMax 5900, Model 232620 1
*Must be ordered separately..
20 DRIVE HOUSING ASSEMBLY
20g* WASHER
194173 GMax 3900, Model 232610 1
107089 GMax 5900, Model 232620 1
20h* WASHER
194172 GMax 3900, Model 232610 1
194411 GMax 5900, Model 232620 1
*Must be ordered separately..
10 (Ref)
17 (Ref)
19d
19e
19b
20
20h
20g
8715A
18 (Ref)
19
91 (Ref)
92 (Ref)
17 (Ref)
81 (Ref)
1
1
Only used on GMax 3900, Models 232610 and 232612
91 (Ref)
