Parts List – Sprayer
Models 232610 through 232613 and 232619; 232620 through 232623 and 232629
REF
NO. PART NO. DESCRIPTION QTY
REF
NO. PART NO. DESCRIPTION QTY
301 193653 PLATE, control 1
302 241093 BOARD, PC 1
303 111839 SCREW, mch pan, 6–32 x 1/2 in. 5
304 240776 HARNESS, wiring. 1
305 193497 GASKET, control 2
306 193652 HOUSING, control box 1
307 114631 SCREW, mch, pan hd 10
308 193052 PLATE, instruction 1
309 114277 SWITCH, rocker, (spst) 1
310 241443 POTENTIOMETER, pressure control 1
311 193657 GASKET, potentiometer 1
312 193654 PLATE, instruction 1
313 114273 KNOB, potentiometer 1
314 193072 LABEL, control 1
315 114629 GROMMET, transducer 1
318 240777 FILTER, fluid 1
318a 193651 HOUSING, filter 1
318b 104361 O-RING 1
318c 186075 SUPPORT, filter 1
318d 167025 STRAINER, mesh, 60 1
318e 171941 SPRING, compression 1
318f 192706 BOWL, filter 1
318g 193710* SEAL, valve 1
318h 193709* SEAT, valve 1
318j 194102* HANDLE, valve 1
318k 114688* NUT, cap, hex hd 1
318l 114708* SPRING, compression 1
318m 114797* GASKET 1
318n 240914* VALVE 1
318z 240314 TRANSDUCER, pressure control 1
includes 318aa
318aa 111457 O-RING 1
319 110997 SCREW, flange, hex 3
320 114532 TIE, wire, twist 1
321
189246 LABEL, warning 1
322 241444 COVER, pressure control 1
* Drain valve replacement kit 241276 available; includes
318g through 318n
Replacement warning labels may be ordered free of charge
Fig. 22
Green
Violet
Pressure
transducer
Potentiometer
Red (+)
Black

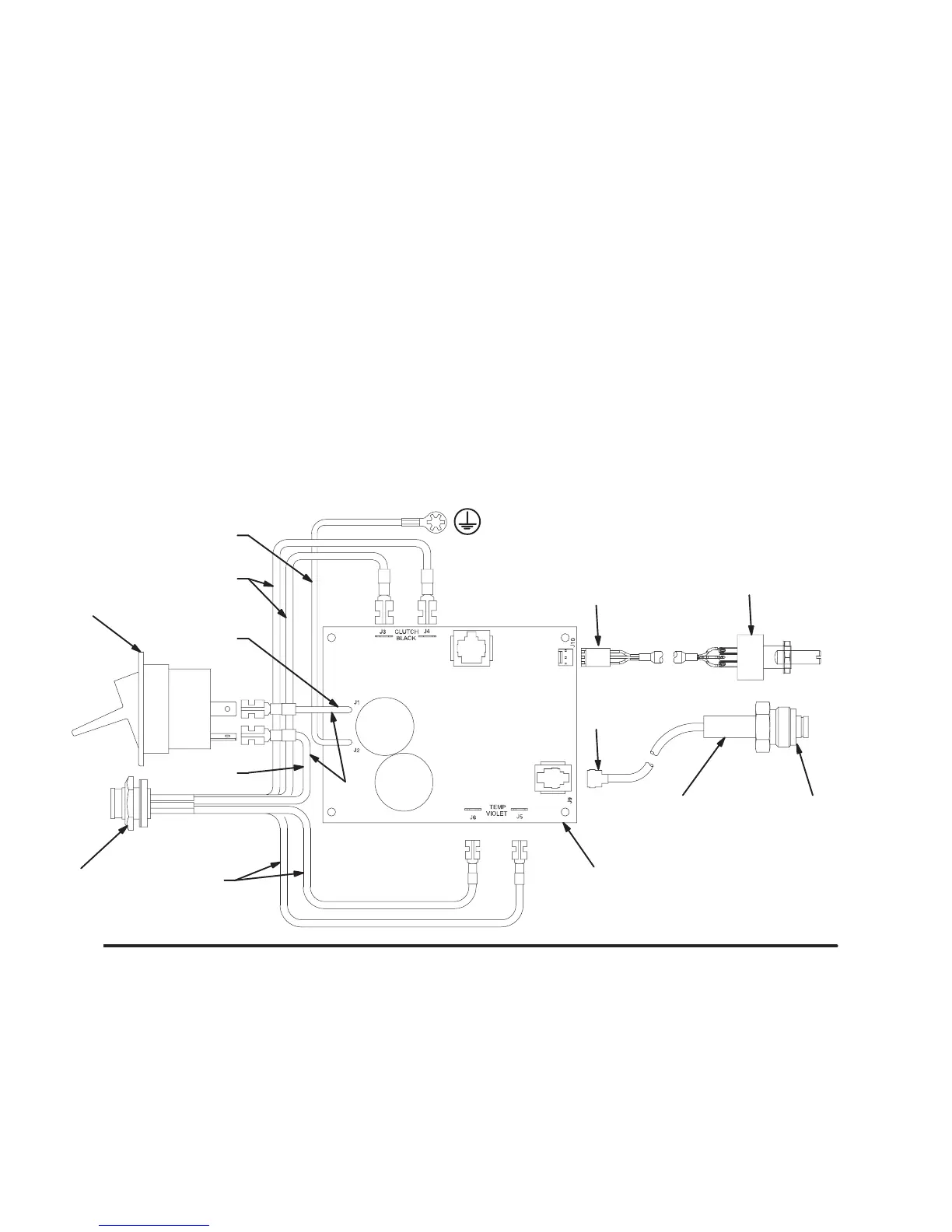

Wiring Diagram
Red
309
(Ref)
304
(Ref)
318z
(Ref)
310
(Ref)
302
(Ref)
D
E
A
318aa
(Ref)
To Next Page
