12 308-798
Service

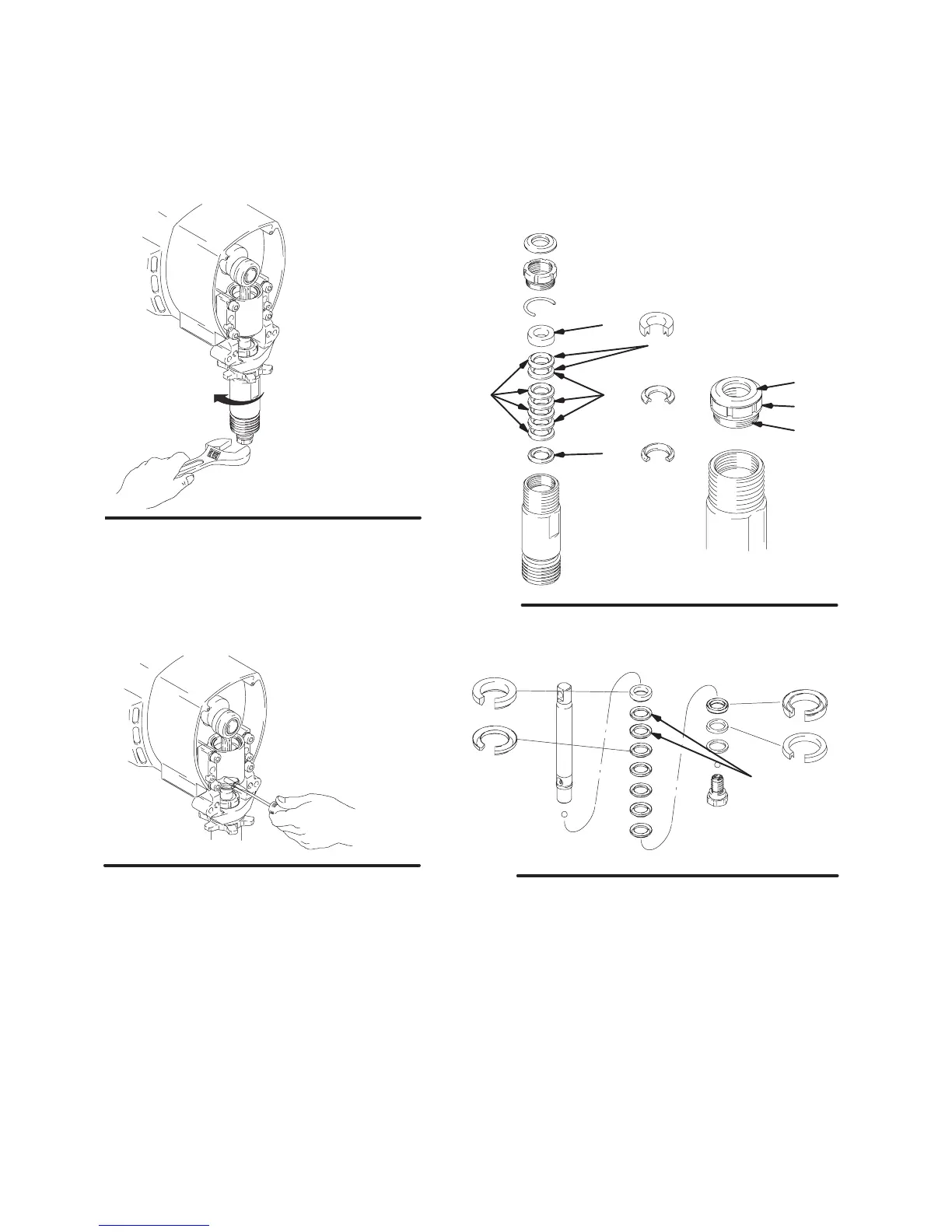

Fig. 9. Remove piston valve from piston rod with a
wrench.
Fig. 9
7748A
Fig. 10. Remove pin and piston rod from cylinder.
Fig. 10
7675A
Fig. 11. Soak all leather packings in SAE 30W oil for 1
hour minimum prior to assembly. Stack male gland
(204). Alternately stack UHMWPE (203) and leather
(223) packings (note orientation). Install female gland
(224). Install seal (201) and packing nut (202) and
throat adjustment spacer (228).
7573B
Fig. 11
201
202
7581A
203
224
223
204
228
Used on 240–291,
240–917 & 240–800
Fig. 12. Remove packings and glands from piston rod.
Fig. 12
7749B
Used on
240–291
240–800
&
240–917
