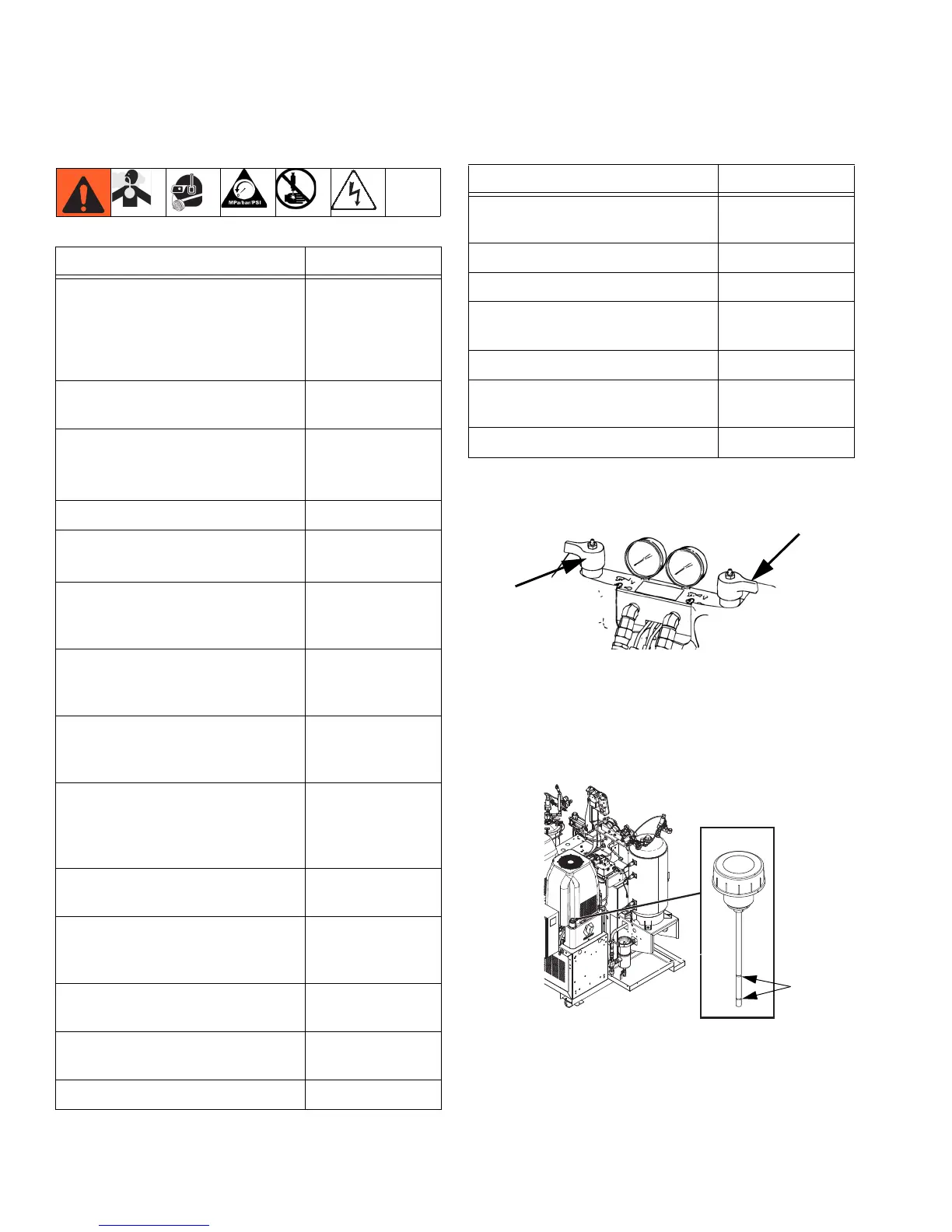

Maintenance
46 3A2797R
Maintenance
Grease Circulation Valves With Fusion
Grease (117773)
Check Hydraulic Fluid Level
Check hydraulic fluid level on dipstick. Fluid level must
be between indent marks (IM) on dipstick. Refill as
required with approved hydraulic fluid; see Run Screen
Icons on page 53. If fluid is dark in color, change fluid
and filter.
Task Schedule
Change break-in oil in a new unit After first 250
hours of opera-
tion or within 3
months, which-
ever comes first
Inspect hydraulic and fluid lines
for leaks
Daily
Inspect IsoGuard Select
™
fluid
level and condition, refill or
replace as needed, page 48
Weekly
Check hydraulic fluid level Weekly
Grease circulation valves with
Fusion
®
grease (117773)
Weekly
Verify operation of air drying sys-
tem to prevent isocyanate crystal-
lization
Weekly
Verify vent holes on bottom of
electrical cabinet are clear and
unobstructed
Weekly
Inspect HFR Powerpack air filter
(part 24H018), clean or replace
as necessary,
Weekly
Use compressed air to remove
dust buildup on control boards,
fan, motor (under shield), and
hydraulic oil coolers
Monthly
Clean up all hydraulic leaks; iden-
tify and repair cause of leak
As needed
Inspect the gun, fluid lines, trigger
switch cable and proximity switch
cable for wear or damage
Daily
Grease (117773 or 0553-6) the
gun
Weekly or every
15,000 shots
Clean and service the orifices
and filters
As Needed
Check Accumulator Pre-Charge Monthly
Check tightness of all clamps and
fittings
Weekly
Check hoses for wear Monthly
Replace hydraulic filter 6 months
Grease (115982) high volume
refill valve, if equipped
Monthly
Change hydraulic fluid Yearly
Replace IsoGuard Select filter
(125148)
Monthly
Change IsoGuard Select fluid Bi-Monthly
Task Schedule
