Setup
Turbine Spray Unit (for more information
see manual 309241)
Connect the Fluid and Air Supply
NOTES:
D The HVLP Cart/Compressor provides the air supply
for the remote pressure pot.
D Circled letters in Fig. 12 indicate hose line connec-
tions.
1. Connect gun air supply hose (A) between turbine
air outlet (B) and gun air inlet (C). DO NOT use
wrench to tighten connections; hand tighten only.
See Fig. 12.
2. If using a spray gun cup (D):
Connect cup to gun fluid inlet (E).
If using accessory remote pressure pots (F):
Connect fluid supply hose (G) between remote
pressure pot fluid outlet (H) and gun fluid inlet (E),
or connect pressure pot air hose (J) between
pressure pot air regulator inlet (K) and the cart
compressor air outlet (L).

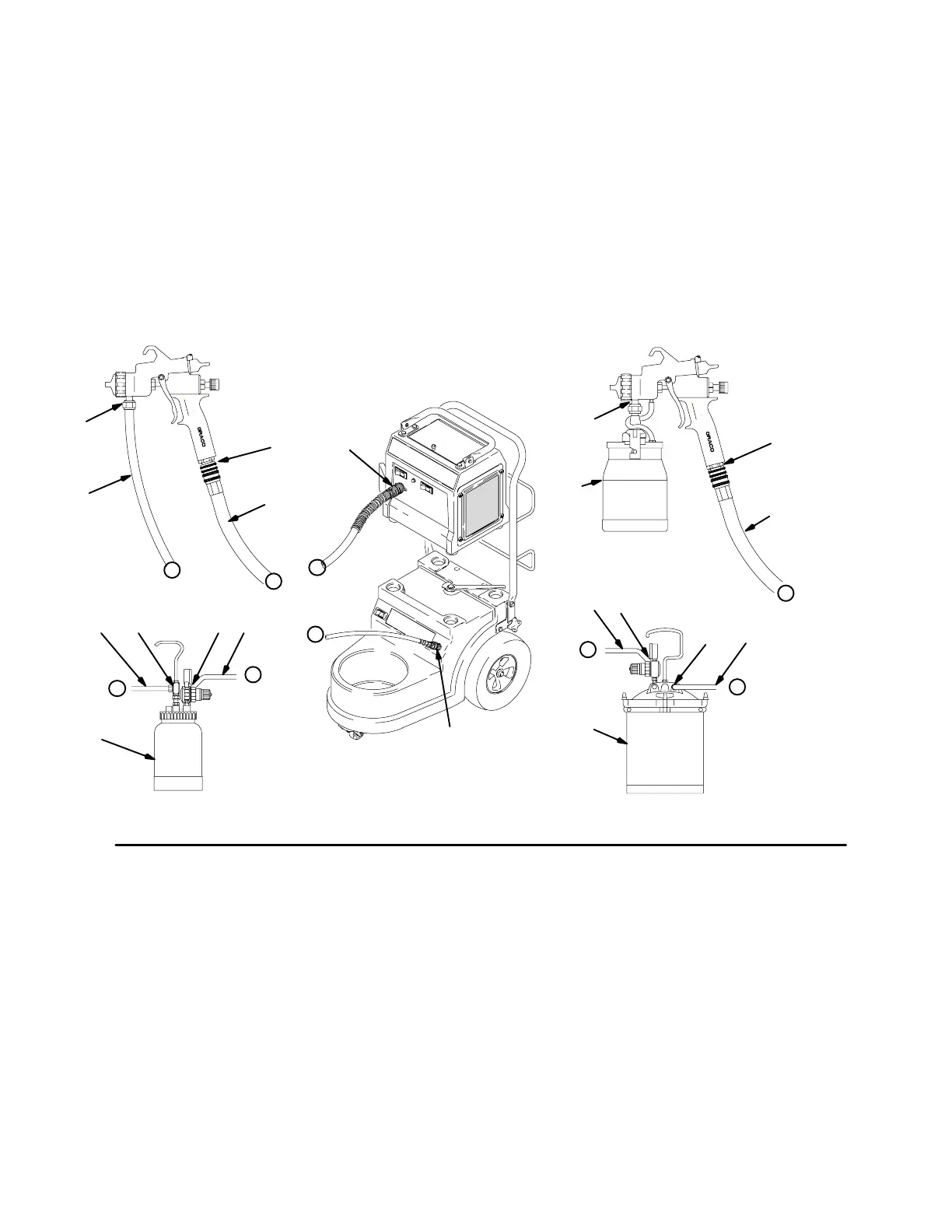

Fig. 12
8068A
C
D
F
J
J
A
G
G
G
C
A
B
L
E
E
Z
Z
H
H
F
K
K
Y
X
X
Y
Y
Z
X
2
1
/
2
-gallon remote pressure pot2-quart remote pressure pot
cup setup
for spray gun
To Next Page
