4 309205
Introduction
Features
The Graco HVLP–Turbine Gun features a quick–change fluid set, EasyGlidet trigger and easy–access controls.
One air cap fits all six fluid sets.

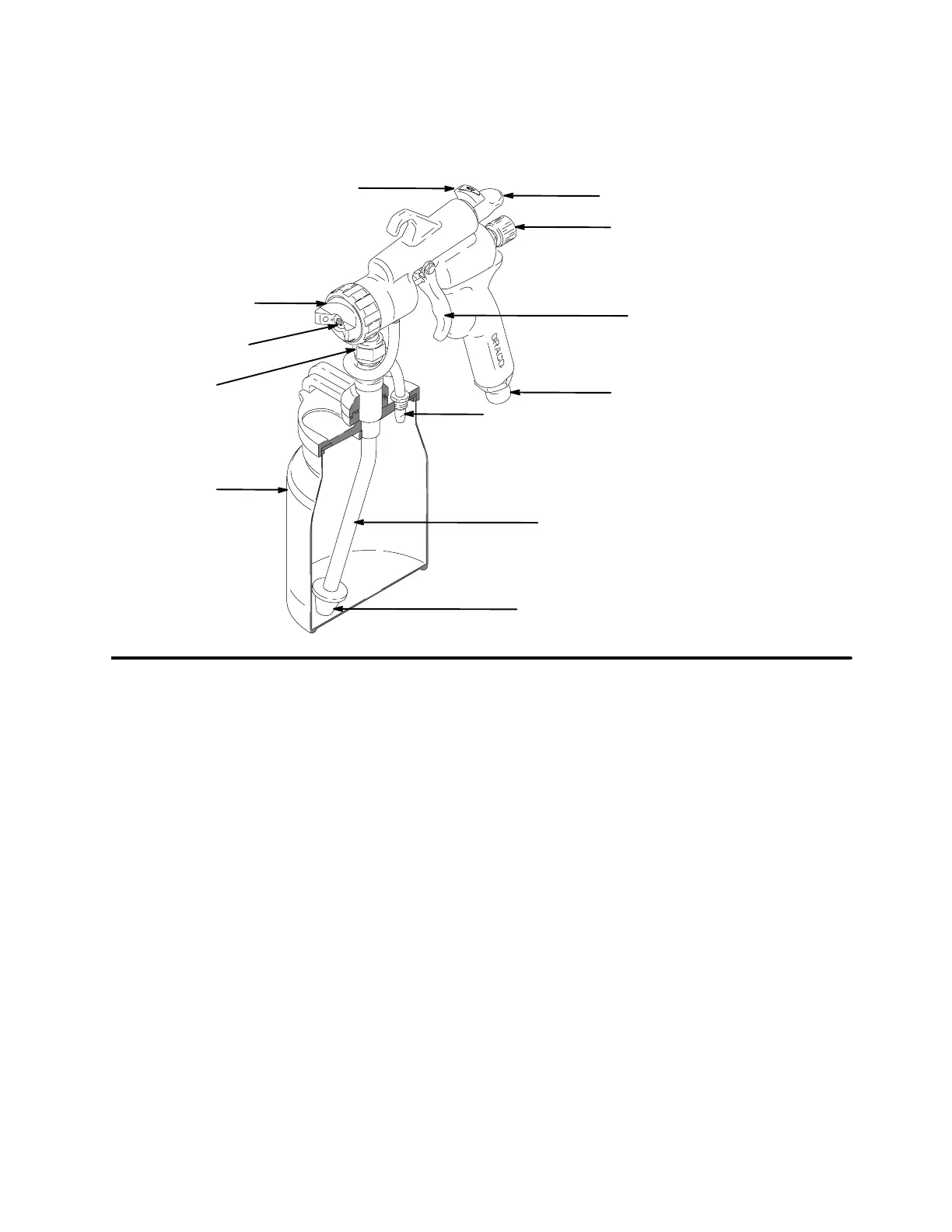

Fig. 1
Pattern adjustment knob
Fluid set/needle
Air cap
Duckbill check valve
EasyGlidet Trigger
Air flow control
Fluid flow and pattern size control
Swivel tube
Air inlet
Nut
Cup
Strainer
General Operating Instructions
1. Setup the gun:
a. Adjust the fluid supply (page 5).
b. Establish the correct air flow (page 5).
c. Select the spray pattern and shape (page 6).
d. Select a fluid set (page 7).
2. Prepare the fluid and surface (page 9).
3. Connect the gun to the fluid and air supplies (page
10).
4. Fill the cup or remote pressure pot with fluid you
will be spraying (page 11).
5. Spray (page 12).
6. Clean the gun following the clean–up instructions
(page 14).
