Graco Magnum ProX

Drive
2 3A3951A
Drive

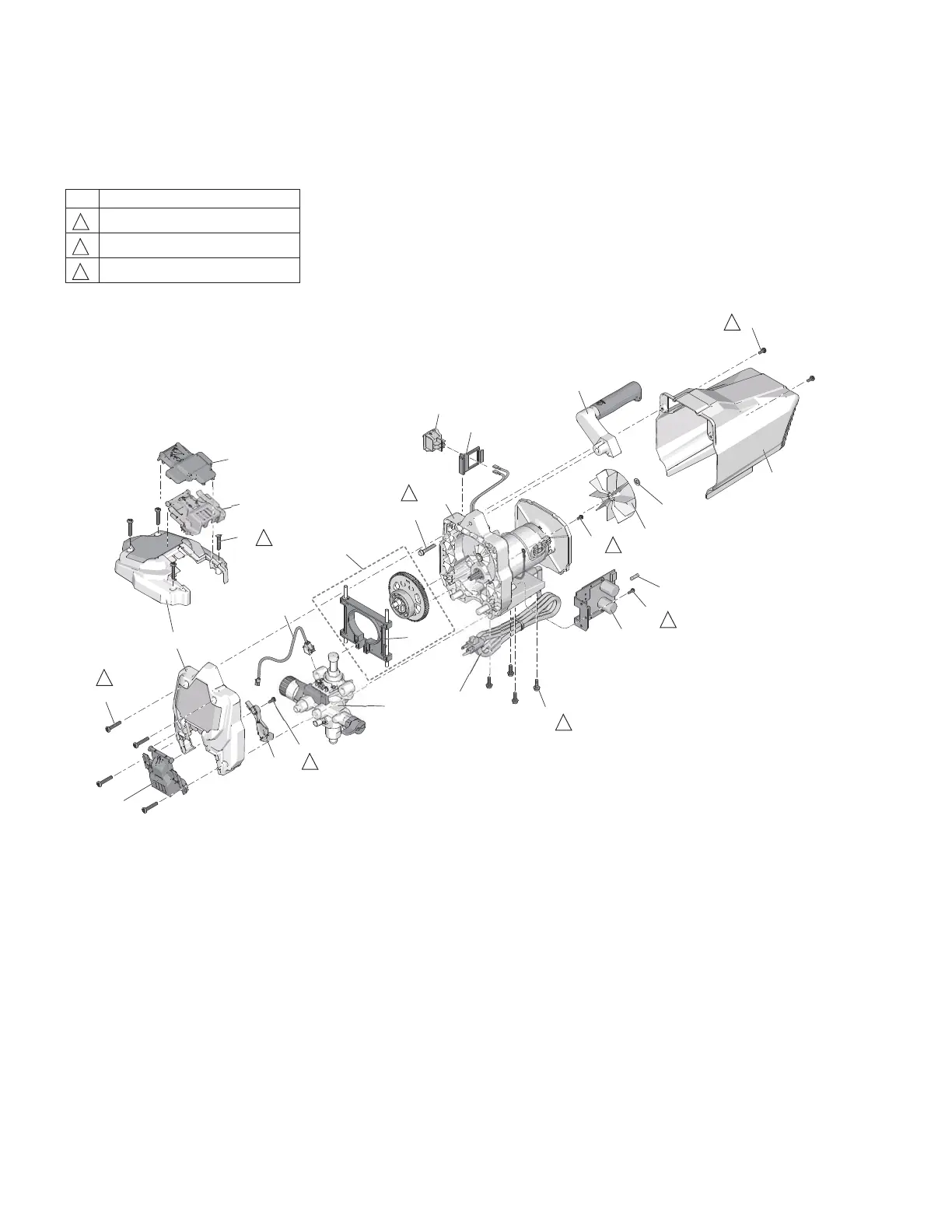

Drive Assembly Drawing
Ref. Torque
140-160 in-lb (16 - 18 N•m)
30-35 in-lb (3.5 - 4.0 N•m)
110-120 in-lb (12 - 14 N•m)
1
2
3
12
10
10c
5
1
6
24
8
9
1a
54b
18
15
3
16
15a
22
7
10b
10a
9
2
12
10a
14
13
17
ti28539a
3
3
3
2
1
2
2
2
Ref.
Description
1 Motor
1a Fan
2 Gear and yoke
3 Power cord
5 Yoke
6 Handle screw
7 Pump
8
Motor shield
9 Machine screw 10-24 x 0.5 in.
10 Front cover
10a Easy access cover
10b Wire cover
10c Cable
12 Machine screw (T-30 Torx)
13 Switch bracket
14
Paint shield (DI models only)
15 Control
15a Fuse, 12.5A slow blow
16 Screw
17 ON/OFF switch
18 Machine screw
22 Screw, thread forming
24 Handle, stand models
Ref.
Description
