Graco NXT User Manual

Repair
311238G 21

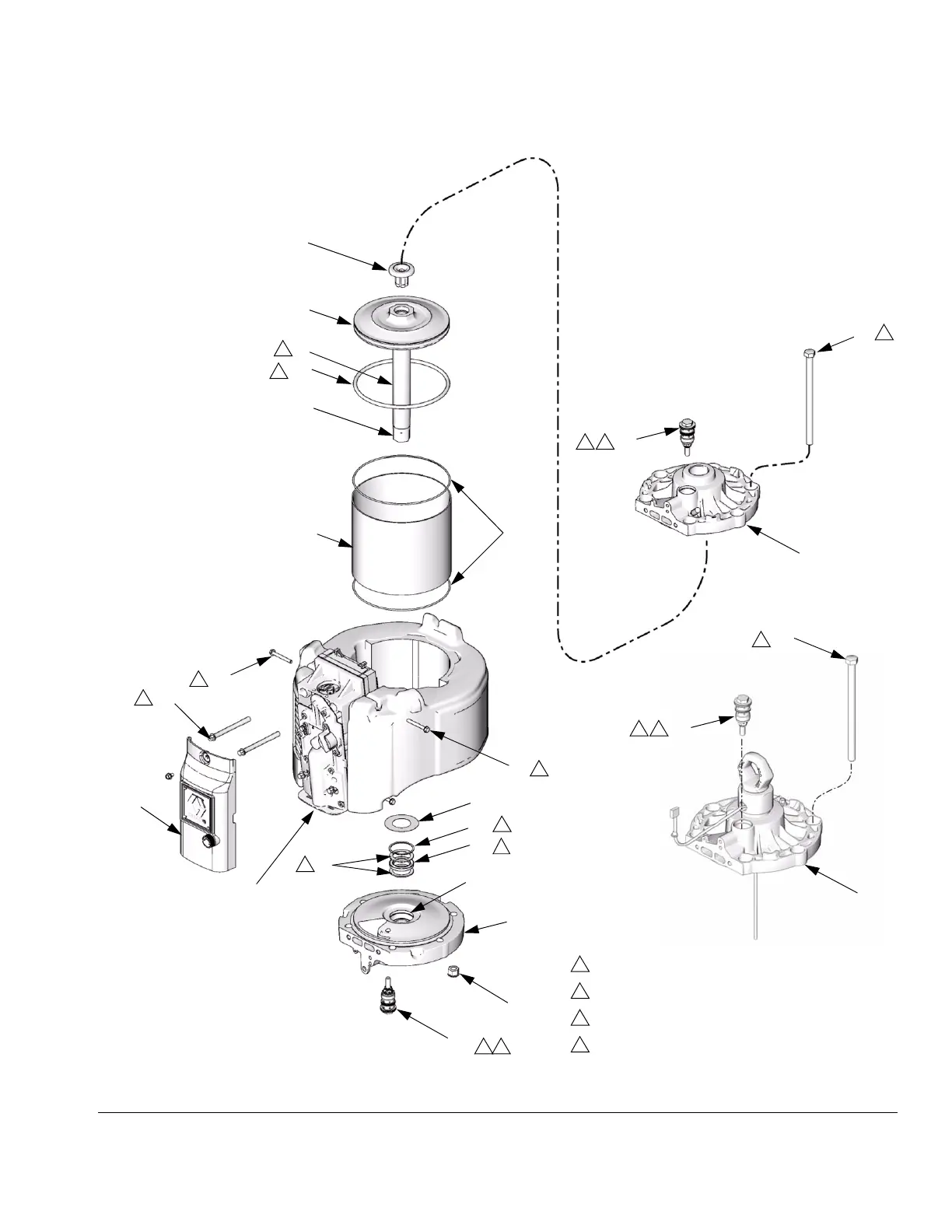

FIG. 12. Air Motor Repair
12
1
18*
47
12
3
14
7*
9*
*8
*17
4
10
13
2
43
41
40
TI8219b
Apply lubricant.
Torque to 38-42 ft-lb (51.3-56.7 N•m).
Torque to 15 ft-lb (20.3 N•m).
Thread in by hand, then torque to 15 ft-lb (20.3 N•m).
5
9
11
17
5 9
11
17
5
5
5
5
5
5
9
9
S
B
A
43
17
59
12
1
13
5
9
9
TI8220a
