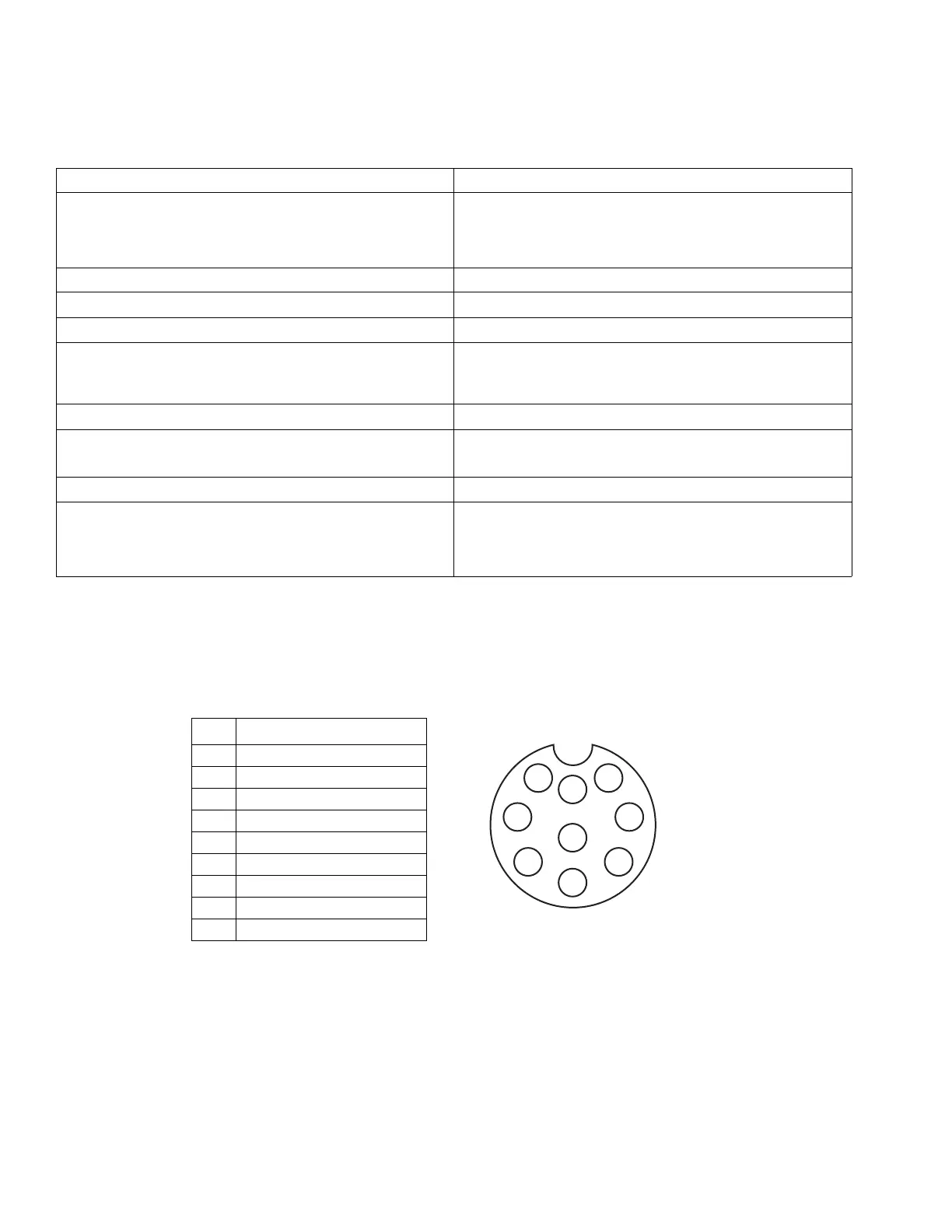

Technical Data
34 311238G
Technical Data
Santoprene
®
is a registered trademark of the Monsanto Company.
Maximum air inlet pressure 100 psi (0.7 MPa, 7.0 bar)
Air motor piston diameter NXT Model 6500: 10.375 in. (264 mm)
NXT Model 3400: 7.5 in. (191 mm)
NXT Model 2200: 6.0 in. (152 mm)
Stroke length 4.75 in. (120 mm)
Air Inlet Size 3/4 npt(f)
Remote exhaust outlet size (remote models only) 1 in. npt(f)
Maximum motor speed
(Do not exceed maximum recommended speed of fluid
pump, to prevent premature pump wear)
60 cycles per minute
Operating temperature range 32-140°F (0-60°C)
Materials of construction Aluminum, ductile iron, stainless steel, carbon steel, ace-
tal, polyethylene, Santoprene
®
, alloy steel, polypropylene
Seals and packings Nitrile rubber
Weight NXT Model 6500: 69 lb (31 kg)
NXT Model 3400: 50 lb (23 kg)
NXT Model 2200: 46 lb (21 kg)
Pin-Out Information for
Motor with Linear Sensor
Pin
Description
15V Common
2 Voltage Out
3 +5V Supply
4 Shield
5 Extend High Pin
6 Retract High Pin
7 Bottom SW Signal
8 Top SW Signal
9Common
TI9239A
1
9
7
