Mounting Hole Diagrams
311238G 33

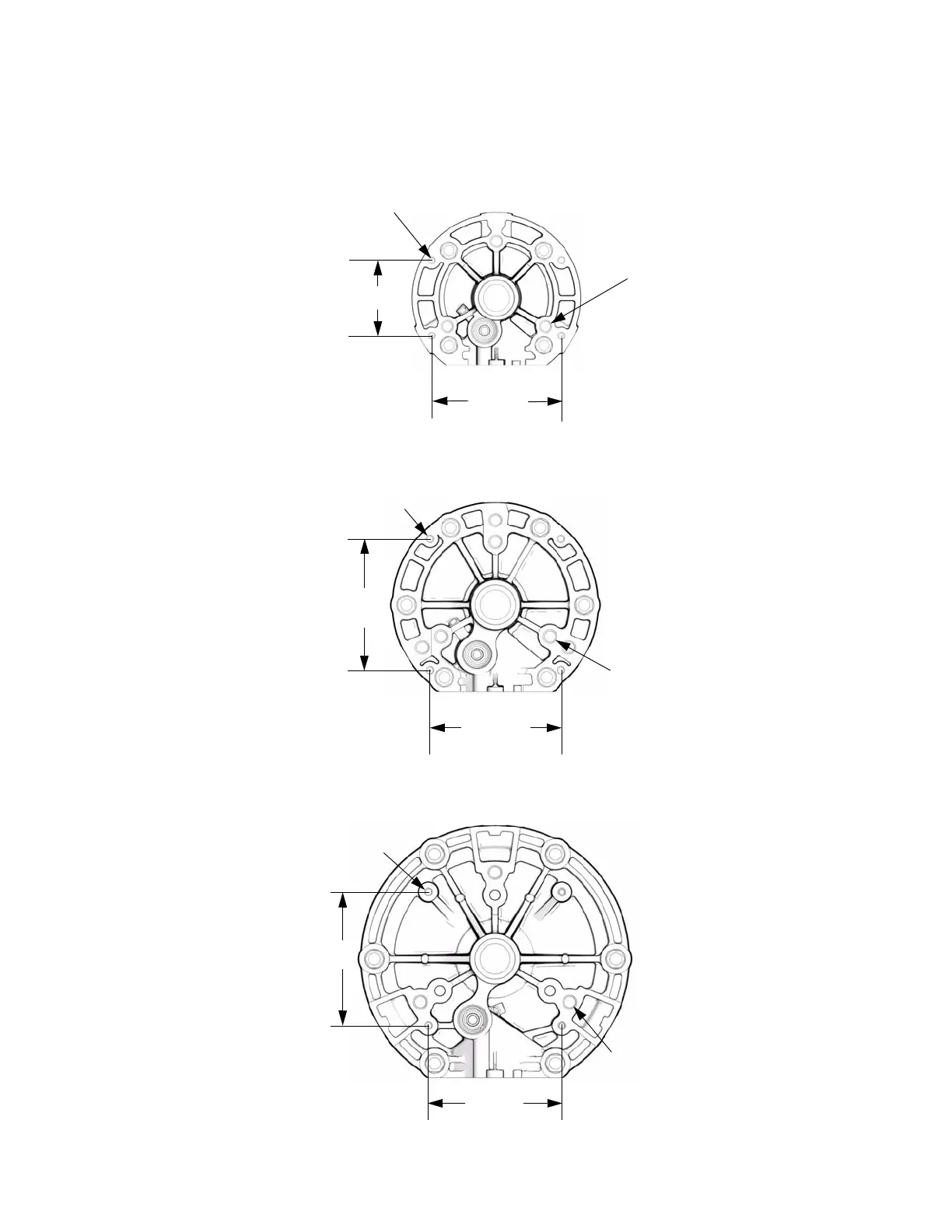

Mounting Hole Diagrams
NXT Model 2200
NXT Model 3400
NXT Model 6500
TI8069A
TI8071A
TI8070A
6.186 in.
(157 mm)
Three 5/8-11 Tie Rod Holes,
8.000 in. (203 mm) x 120° Bolt Circle
Six 5/8-11 Tie Rod Holes,
8.000 in. (203 mm) x 120° Bolt Circle
5.906 in. (150 mm) x 120° Bolt Circle
Three 5/8-11 Tie Rod Holes,
5.906 in. (150 mm) x 120° Bolt Circle
Four 3/8-16
Mounting Holes
6.186 in.
(157 mm)
6.186 in.
(157 mm)
6.186 in.
(157 mm)
3.938 in.
(100 mm)
Four 3/8-16
Mounting Holes
Four 3/8-16
Mounting Holes
6.750 in.
(172 mm)
