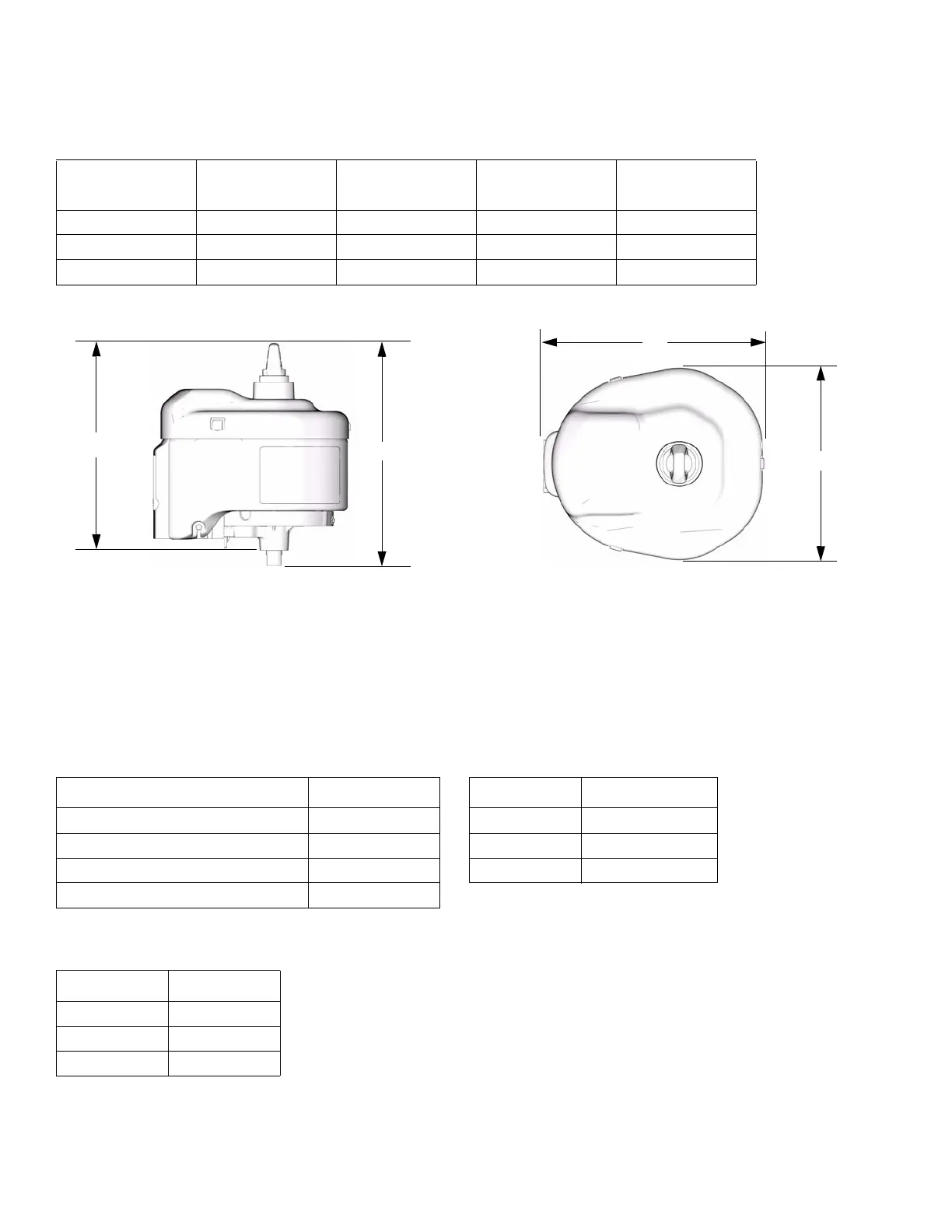

Dimensions
32 311238G
Dimensions
Accessories
Motor/Lower Adapters
The following adapters are available as accessories to
connect an NXT air motor to a Graco lower.
Air Line Lubricators
DataTrak Conversion Kits
To convert standard NXT air motors to include DataTrak
module.
111897 Threaded Muffler
1 in. npt(m). For use with remote exhaust manifold.
Air Motor
Model A, inch (mm) B, inch (mm) C, inch (mm) D, inch (mm)
NXT Model 2200 15.6 (394) 16.8 (427) 15.4 (391) 12.4 (315)
NXT Model 3400 15.5 (394) 16.7 (424) 16.1 (409) 14.0 (356)
NXT Model 6500 15.9 (404) 17.1 (434) 18.9 (480) 16.2 (411)
TI7773ATI7772A
A
B
C
D
Lower Adapter
High-Flo 15H369
Dura-Flo 600, 750, 900, and 1200 15H370
Dura-Flo 1800 and 2400 15H371
Xtreme 15H392
Air Motor Lubricator
NXT 2200 214848
NXT 3400 214848
NXT 6500 214849
Air Motor Conversion Kit
NXT 2200 NXT206
NXT 3400 NXT306
NXT 6500 NXT606
