Graco NXT User Manual

DataTrak Operation
12 311238G
Replace the DataTrak Module
Battery or Fuse
1. Remove two screws (135). Carefully slide the
DataTrak module (131) out of the housing (132).
See F
IG. 4.
2. Disconnect the runaway solenoid and sensor cables
from the module board. See F
IG. 5.
3. Take the DataTrak module (131) to a non-hazardous
location.
4. To replace the battery, disconnect the used battery
and replace with an approved battery.
5. To replace the fuse (131a):
a. Remove the screw, metal strap, and plastic
holder.
b. Pull the fuse away from the board.
c. Replace with a new fuse (131a).
The battery and fuse must be replaced in a non-haz-
ardous location.

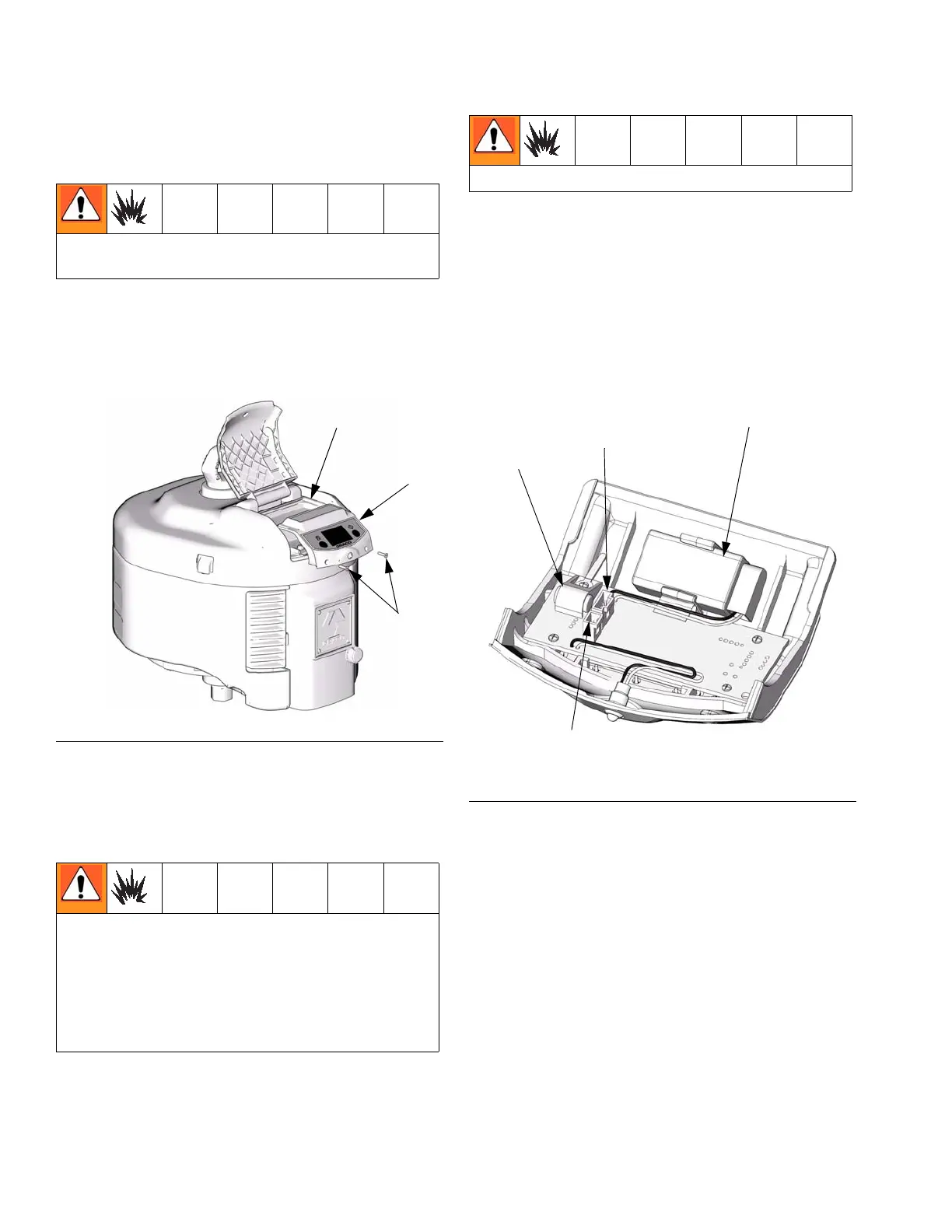

F
IG. 4. Remove DataTrak Module
Use only the following approved replacement batter-
ies. Use of an unapproved battery will void Graco’s
warranty and FM and Ex approvals.
• Ultralife lithium # U9VL
• Duracell alkaline # MN1604
• Energizer alkaline # 522
• Varta alkaline # 4922
132
131
135
TI8216b
Use only a Graco-approved replacement fuse (131a).
F
IG. 5. DataTrak Battery and Fuse Location
Solenoid Cable
Connection
Battery
Fuse (131a)
Sensor Cable
Connection
TI7757a
