Installation
3A3229B 7
4. When you have fastened the three cables to the
valves, use a Phillips screwdriver to tighten the
screws and secure the connectors.
5. Connect cable 4 to the cable running from the
LVDT.

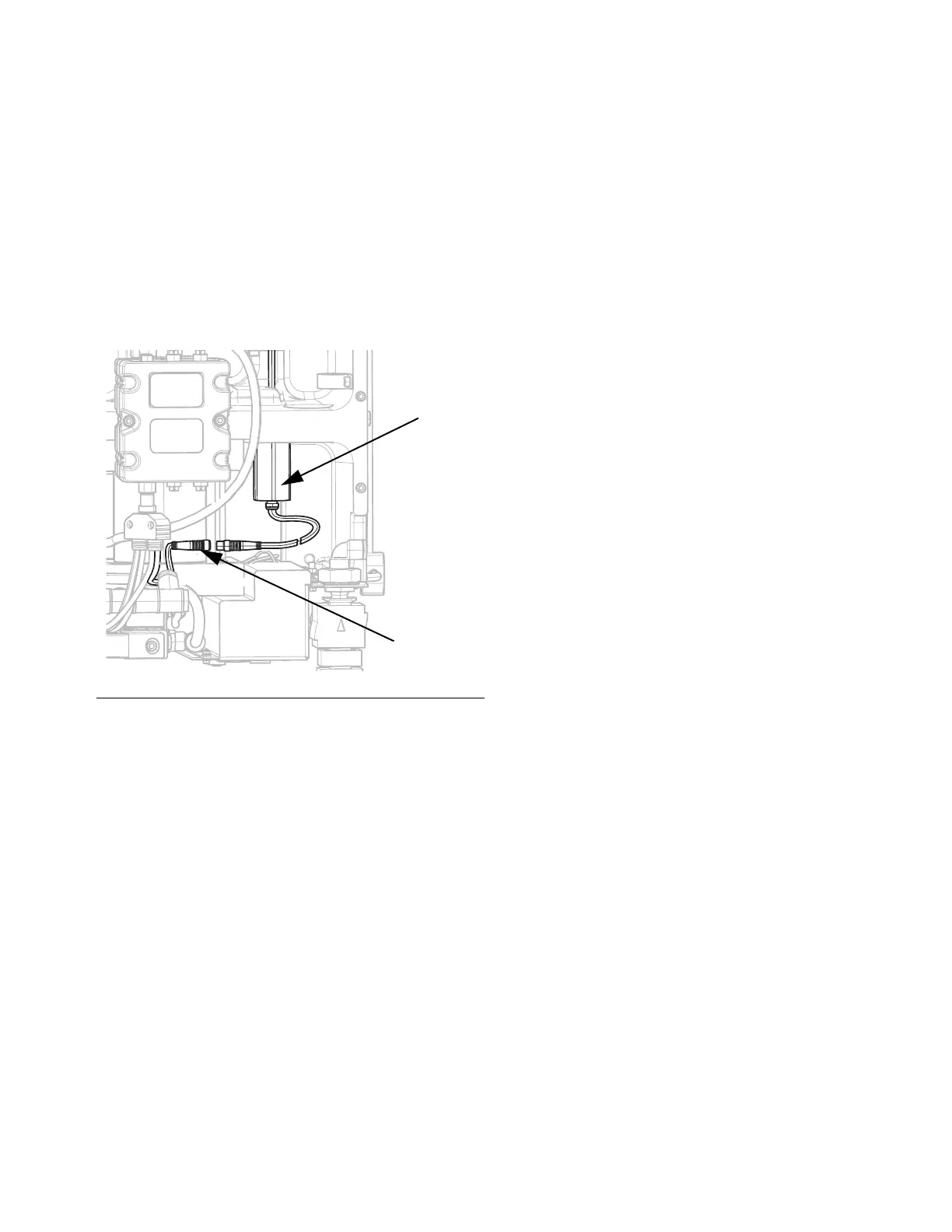

NOTE: Figure 10 is a top view of a PR70 with the shield
and several components removed to show the location
of the LVDT.
NOTE: Once all parts and air lines are securely fas-
tened, replace the protective shield and insert and
tighten the shield locking screws before connecting
power and turning on air to the machine.
FIG. 10: Connecting to the LVDT
