Installation
6 3A3229B
9. Cut the air line tubing (part #61/2906-BK/11)
included in the kit to the appropriate lengths to make
the retract and extend air cylinder connections.
Refer to Figure 7 below.
10. Connect the air line tubing from the air cylinder
retract elbow fitting to the solenoid valve retract
elbow fitting.
11. Connect the air line tubing from the air cylinder
extend elbow fitting to the solenoid valve extend
elbow fitting.
12. Reconnect all other air lines to the dispense sole-
noid valve and the air cylinder solenoid valve.
Replace the Cable Harness
1. Remove the existing cable harness that is con-
nected to the FCM. See Figure 3 on page 4.
2. Connect the new cable harness (part #128538) to
the FCM at port 5. The harness must be angled 45
degrees to connect, as shown in Figure 8.
3. The cables are marked 1 through 4. Make the con-
nections as shown below.
NOTE: In Figure 9, the air line tubing has been removed
from the drawing to clearly show where the cables con-
nect.

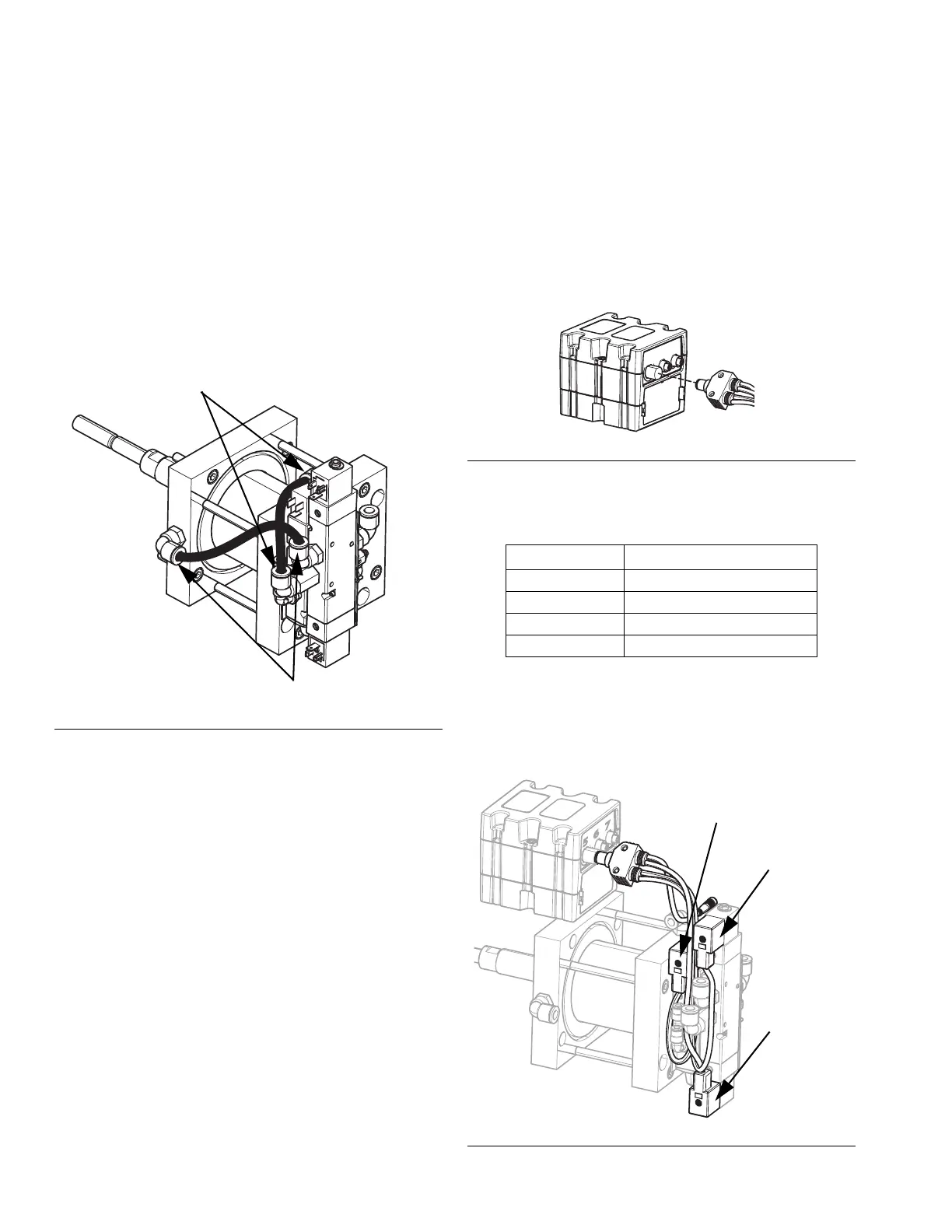

FIG. 7: Attaching the Air Line Tubing
FIG. 8: Connecting the Cable Harness to the FCM
Cable Number Connection
1Retract
2 Dispense Valve
3 Extend
4 Linear Position (to LVDT)
FIG. 9: Connecting the Cables to the Valves
5
6
7
5
6
7
1 - Retract
3 - Extend
2 - Dispense Valve
To Next Page
