EasyKey Display and Keyboard
312779E 21
AC Power Switch
Turns system AC power on or off.
I/S Power
Power circuit to Fluid Station.
Potlife Exceeded Audible Alarm
Alerts the user when a Potlife Exceeded alarm occurs.
Clear by pressing the Alarm Reset
key.
Graco Web Interface Port
Used to communicate with the ProMix from a PC to:
➜ Upgrade software
➜ View software version
➜ Download
• Job and alarm logs
• Material usage report
• Setup values (can also upload)
➜ Clear job, alarm, and material usage reports
➜ Upload a custom language to view on
screen
➜ Restore factory defaults
➜ Restore setup password
See manual 313386 for more information.
NOTE: If using the Graco Gateway in your system, dis-
connect its cable from the EasyKey before updating the
ProMix 2KS software.
Ethernet Connection
You can access data on an office or industrial network
through the internet with the proper configuration. See
manual 313386 for more information.
F
IG

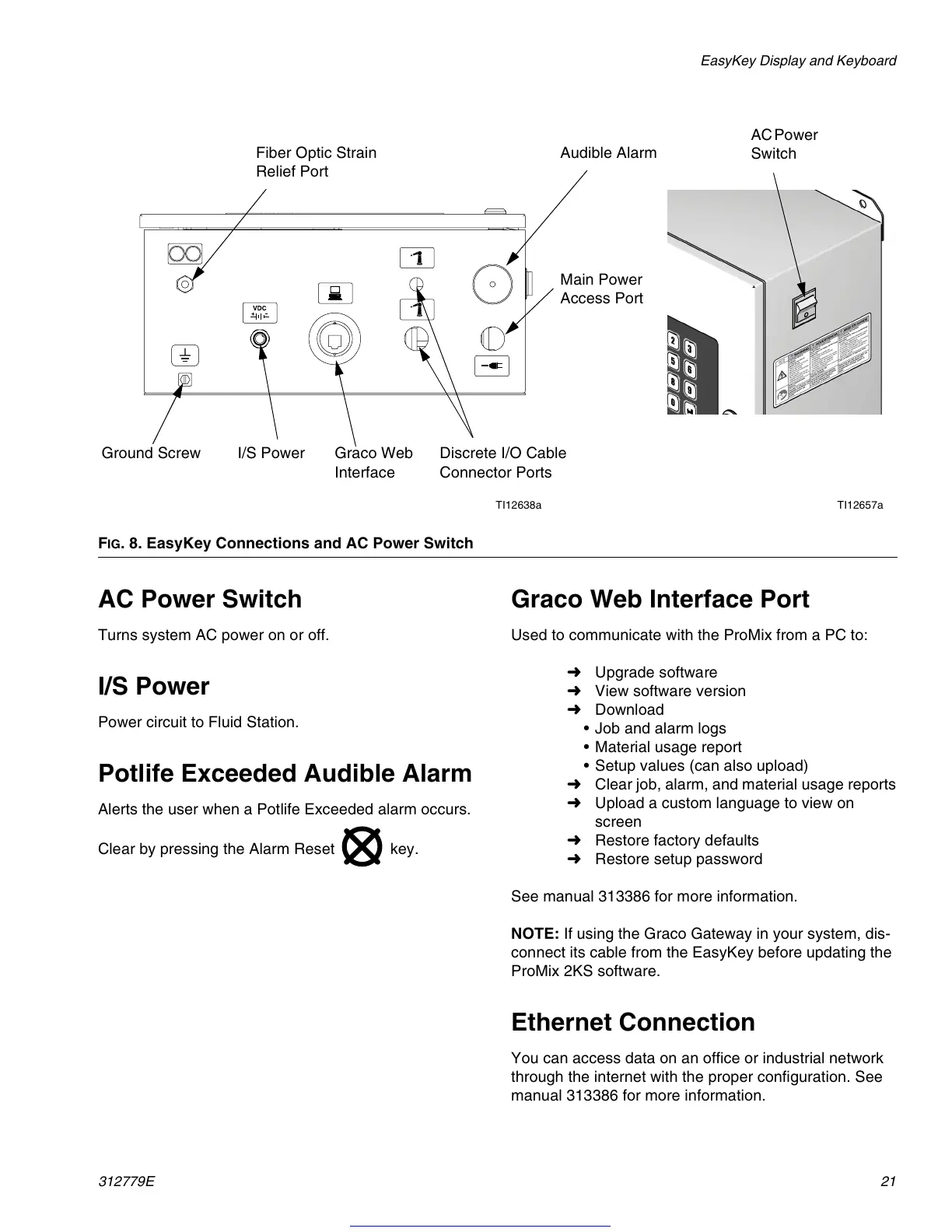

. 8. EasyKey Connections and AC Power Switch
AC Power
Switch
Graco Web
Interface
Audible AlarmFiber Optic Strain
Relief Port
I/S Power Discrete I/O Cable
Connector Ports
Ground Screw
Main Power
Access Port
TI12638a TI12657a
