Graco ProMix 2KS - Discrete I;O Board

ProMix 2KS Integration Specifics
312779E 53

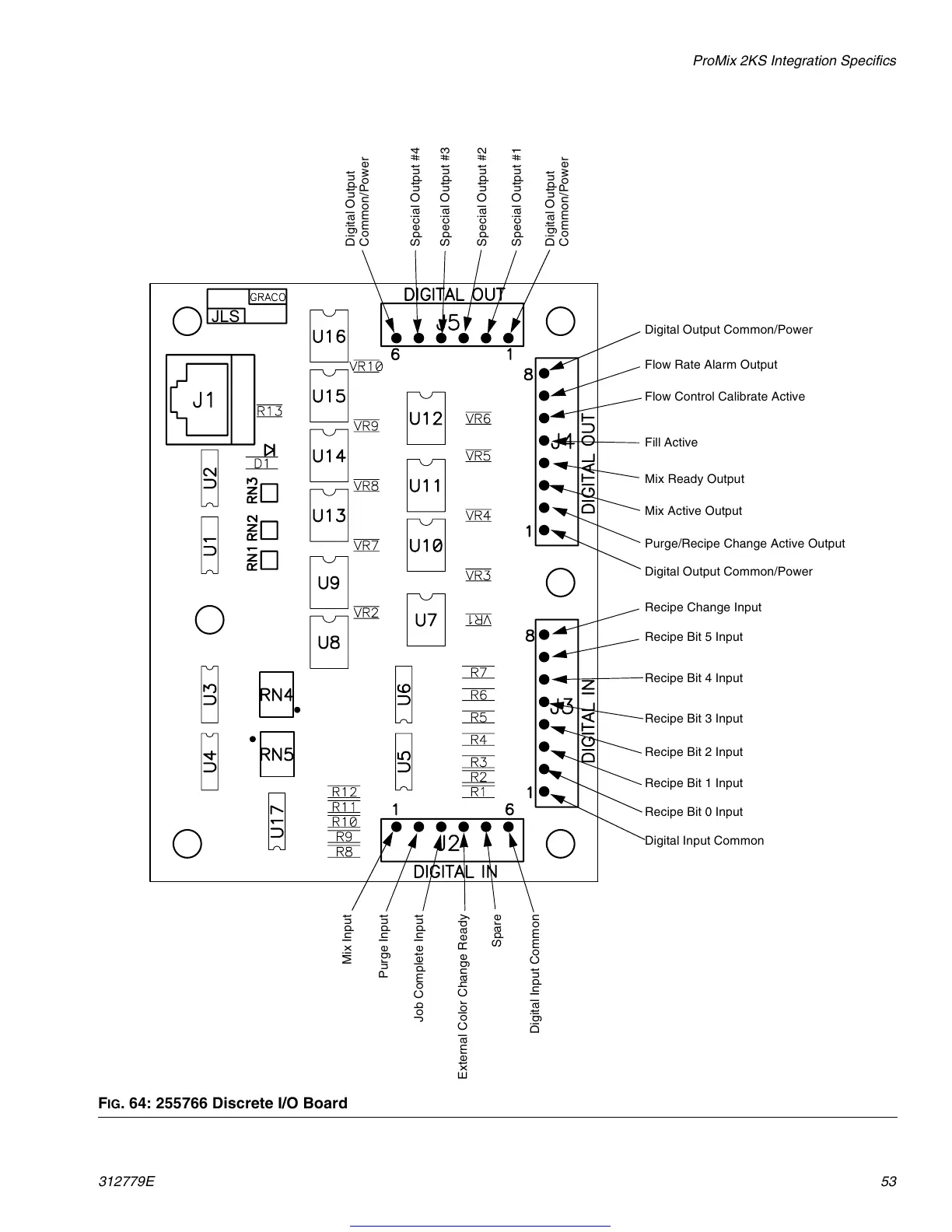

F IG . 64: 255766 Discrete I/O Board
JLS
Purge Input
Job Complete Input
External Color Change Ready
Spare
Digital Input Common
Special Output #4
Mix Input
Recipe Change Input
Recipe Bit 0 Input
Flow Rate Alarm Output
Flow Control Calibrate Active
Fill Active
Mix Ready Output
Mix Active Output
Purge/Recipe Change Active Output
Digital Output Common/Power
Digital Output Common/Power
Digital Output Common/Power Special Output #3 Special Output #2 Special Output #1
Digital Input Common
Recipe Bit 5 Input
Recipe Bit 4 Input
Recipe Bit 3 Input
Recipe Bit 2 Input
Recipe Bit 1 Input
Digital Output Common/Power
