Repair
Clean Flow Met
er
1. Perform Shutdown, page 50.
2. Perform Pressure Relief Procedure, page 49.
3. Disconnect the flow meter cable.
4. Disconnect the heated hose from the flow meter.
Remove the flow meter.

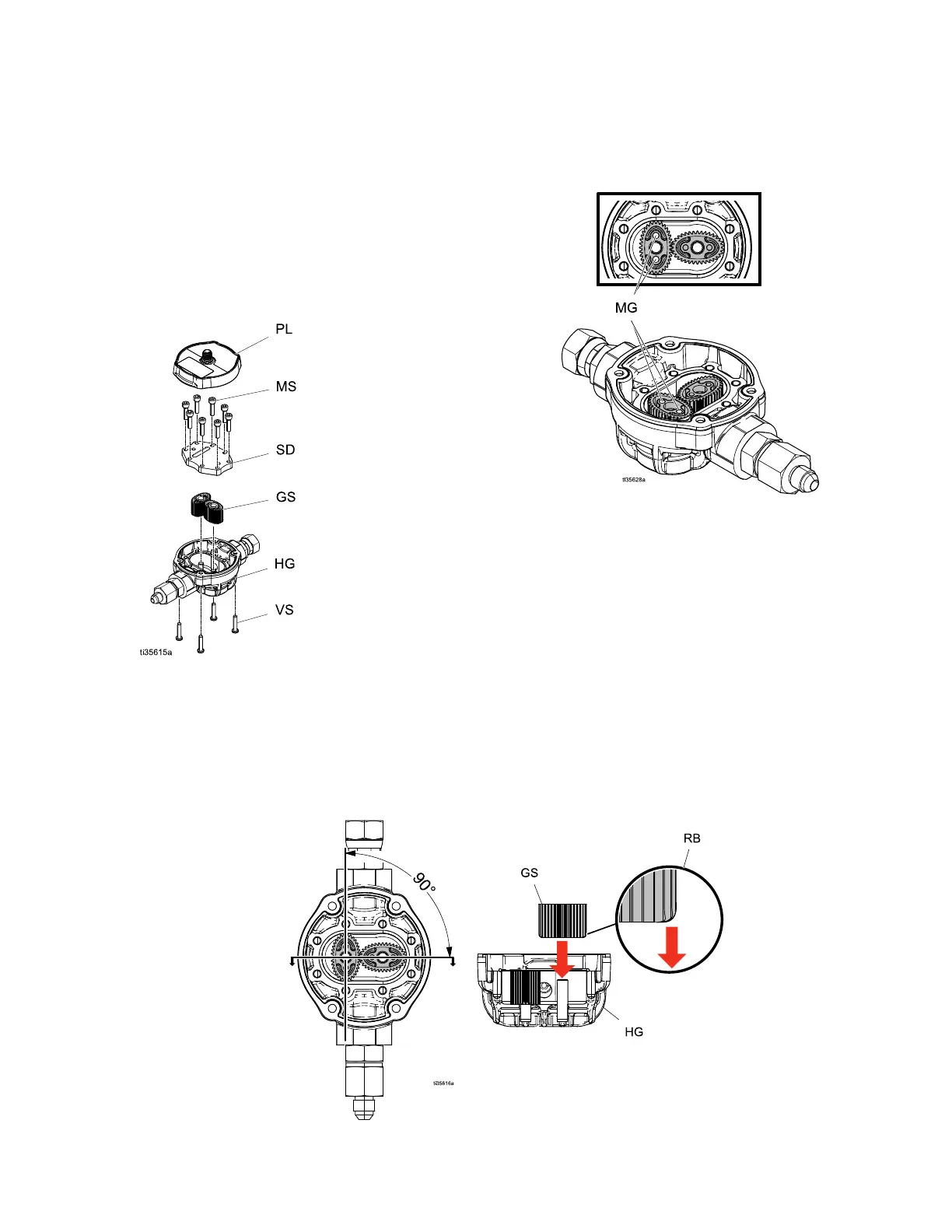

5. Remove four screws (VS) and remove the top
cover (PL).
6. Remove eight screws (MS) and remove the
metal cap (SD).
7. Remove gears (GS) from the housing (HG).
8. Clean the gears and the fluid section of the
housing with compatible solvent.
9. Reinstall the gears.
a. Place the gear
with the magnets (MG) on the
left pin of the
housing.
NOTE: The gear with the magnets (MG)
must be installed on the left side or the meter
will not function. Install the gears as shown.
b. Position the gears perpendicular (90°) to
each other and install the rounded bottom
(RB) of the gear into the housing.
NOTE: T
urn the gears to make sure that
stay en
gaged and rotate together once
instal
led. Reinstall the gears if they do not
stay en
gaged or rotate together.
10. Reins
tall the flow meter. Reconnect the heated
hose a
nd flow meter cable.
333024N 55
