Repair
Repair Heated Hose
Refer to your h
eated hose manual for replacement
hose parts.
Check Hose Hea
t Power Connectors
1. Perform Shut
down, page 50.
Note
Whip hose must be connected.

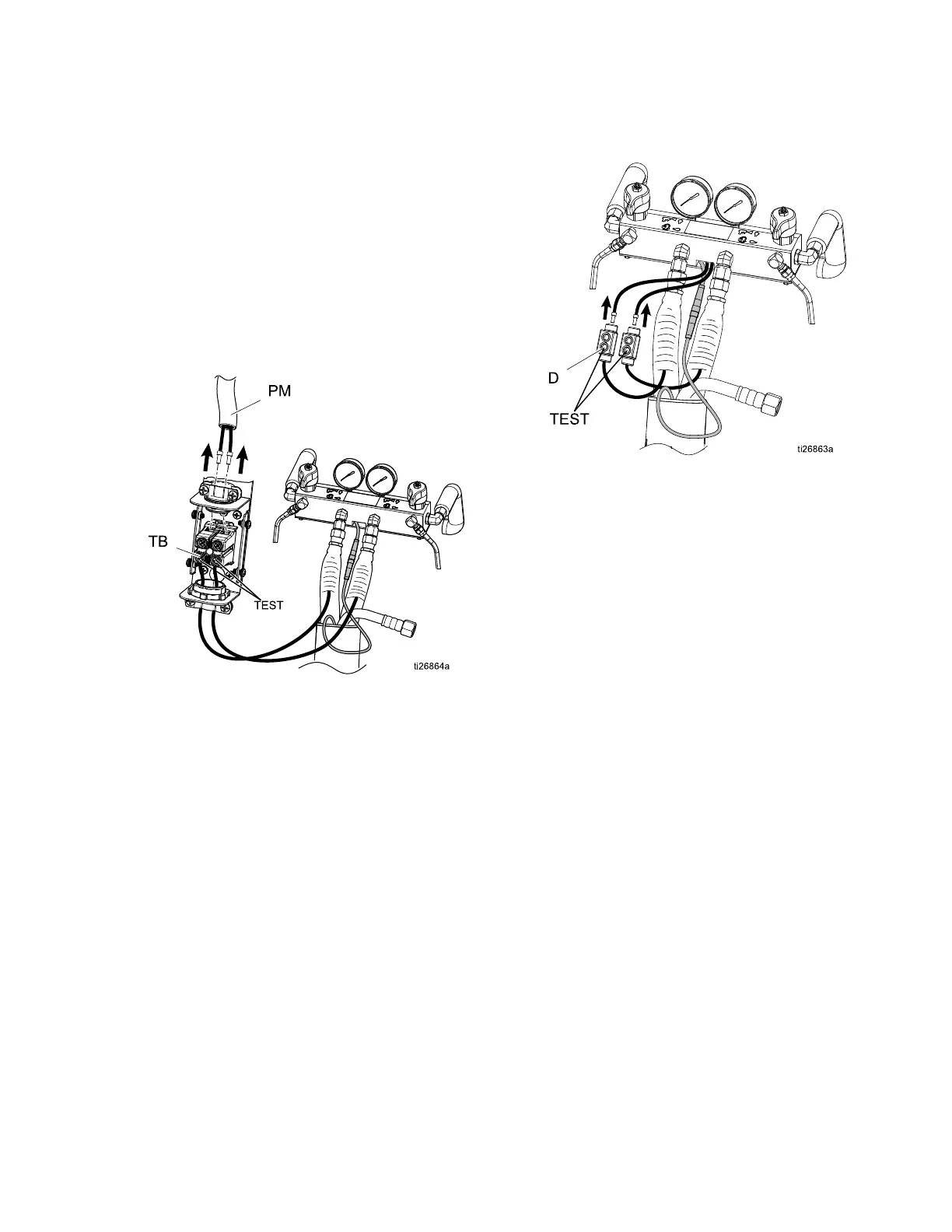

2. Disconnect power harness (PM) from hose
termination box terminal block (TB).
Figure 14
3. For Series A only: Disconnect hose connector
(D) at Reactor.
Figure 15
4. Using an ohmmeter, check between the
connectors (D). There should be continuity.
5. If hose fails test, retest at each length of hose,
including whip hose, until failure is isolated.
333024N
71
