Repair
Replace RTD
1. Perform Shutdown, page 50.
2. Wait for heater to cool.
3. Remove heater cover (10).
4. Cutcabletiesaroundthewovenwrapwiththe
RTD cable (212).
5. Disconnect RTD cable(212) from TCM (453).
6. Loosen ferrule nut (N). Remove RTD (212) from
heater housing (201), then remove RTD housing
(H). Do not remove the adapter (206) unless
necessary. If adapter must be removed, ensure
that mixer (210) is out of the way when replacing
the adapter.
7. Remove RTD cable (212) from woven wrap.
8. Replace RTD (212).
a. Apply PTFE tape and thread sealant to male
pipe threads and tighten RTD housing (H)
into adapter (206).
b. Push in RTD (212) so tip contacts heater
element (208).
c. Holding RTD (212) against heater element,
tighten ferrule nut (N) 3/4 turn past
finger-tight.
9. Route wires (S) as before through woven wrap
and reconnect RTD cable (212) to the TCM.
10. Replace heater shroud (10).
11. Follow startup instructions in the operation
manual. Turn on A and B heat simultaneously to
test. Temperatures should rise at same rate. If
one is low, loosen ferrule nut (N) and tighten RTD
housing (H) to ensure RTD tip contacts element
(212) when ferrule nut (N) is retightened.

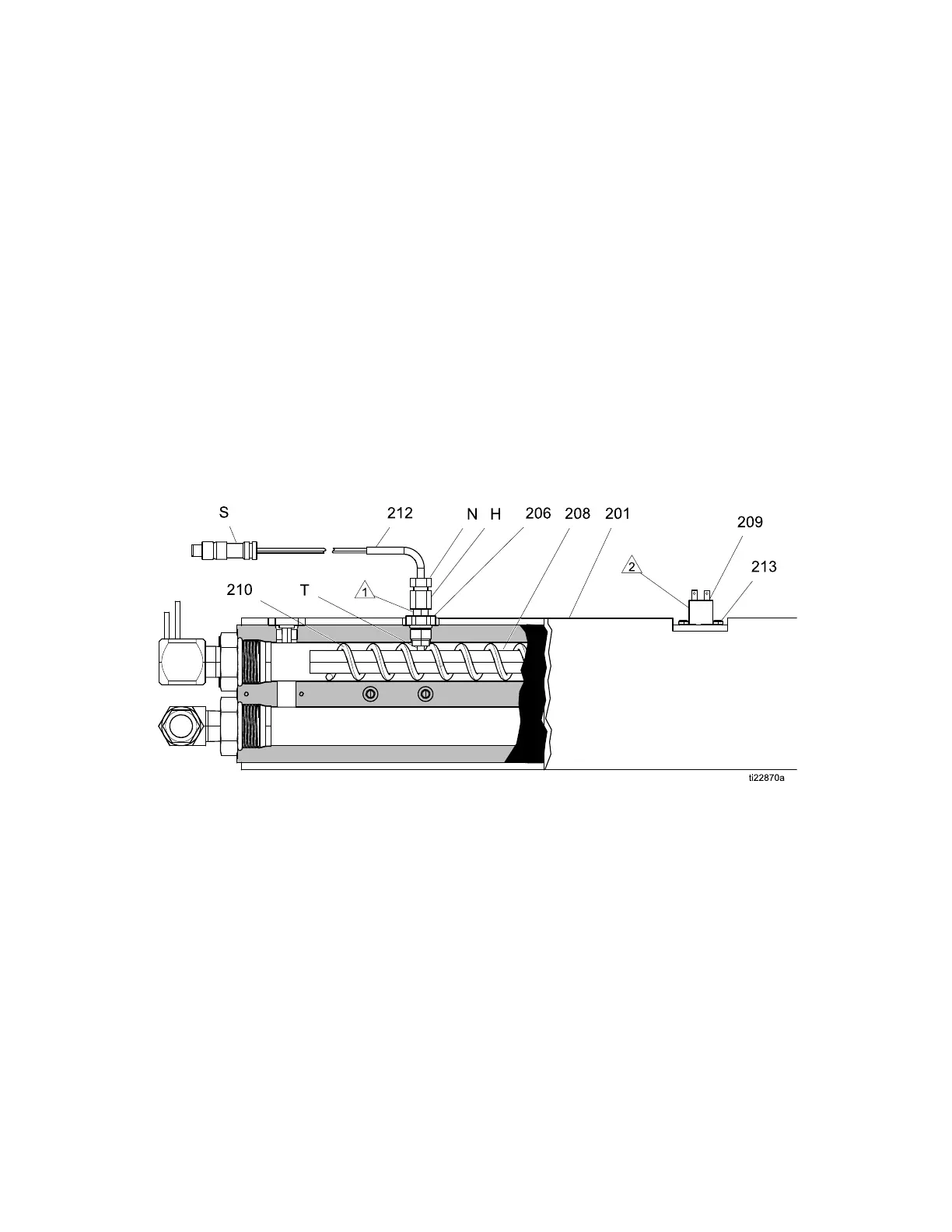

Figure 13
70 333024N
