Parts

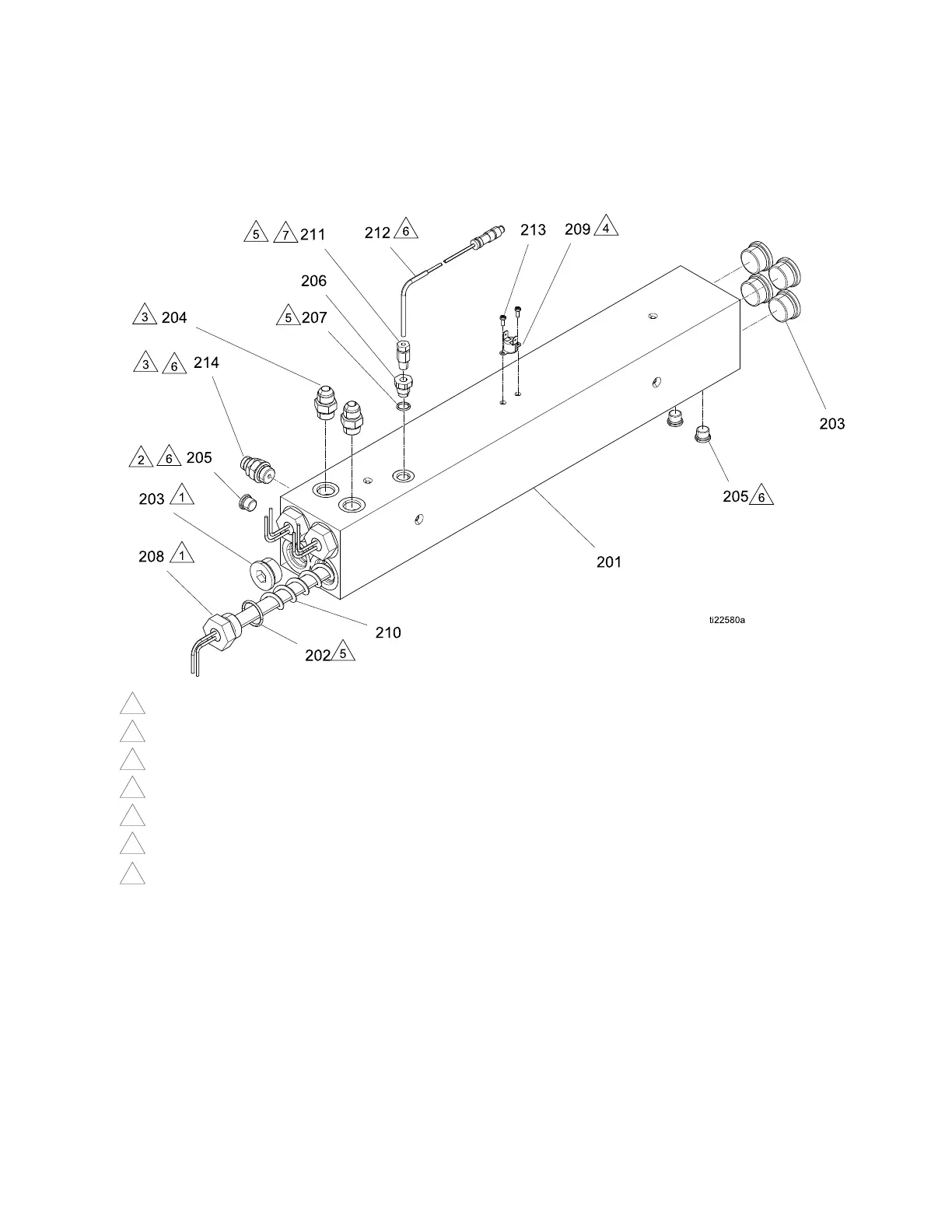

Fluid Heater
24U843 — 10kW,
2–zone
24U842 — 7.5 kW, 1–zone
1
Torque to 120 ft-lbs (163 N•m).
2
Torque to 23 ft-lbs (31 N•m).
3
Torque to 40 ft-lbs (54 N•m).
4
Apply thermal paste.
5
Apply pipe sealant and PTFE tape to all non-swiveling threads and threads without o-rings.
6
Apply lithium grease lubricant to o-rings before assembling in block (1).
7
Remove tape from probe tip and Orientate sensor as shown. Insert probe until it bottoms on heating element.
Tighten ferrule on sensor probe one turn past finger tight or 16 ft-lbs (21.6 N•m).
333024N 91
