Graco Reactor 2 H-XP2 Operation

AdvancedDisplayModule(ADM)Operation
Advanced Advanced
Advanced
Display Display
Display
Module Module
Module
(ADM) (ADM)
(ADM)
Operation Operation
Operation

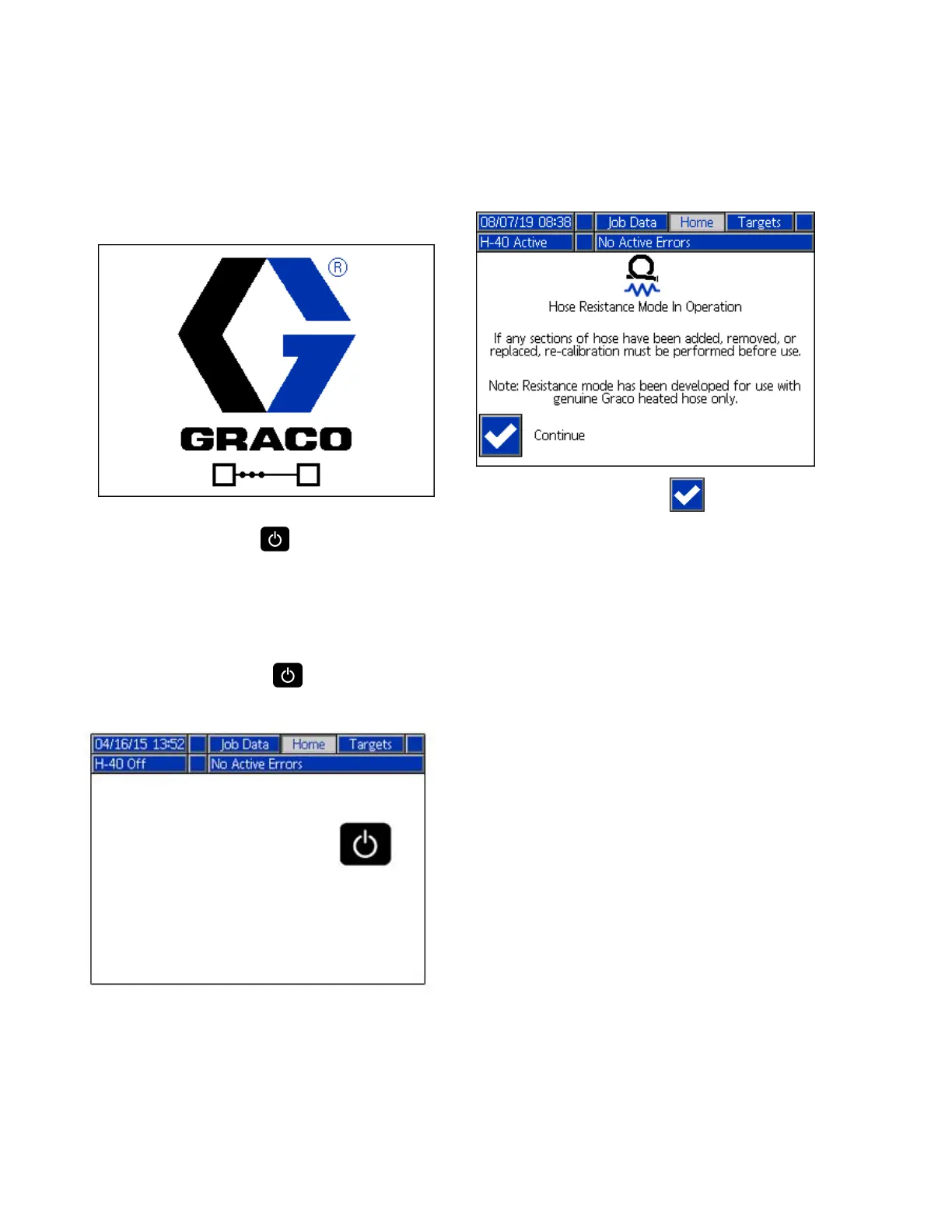

Whenmainpoweristurnedonbyturningthemain
powerswitch(MP)totheONposition,thepowerup
screenwillbedisplayeduntilcommunicationand
initializationiscomplete.
Thenthepowerkeyiconscreenwilldisplayuntilthe
ADMpoweron/offbutton
ispressedforthe󰘰rst
timeaftersystempower-up.
TobeginusingtheADM,themachinemustbe
active.Toverifythemachineisactive,verifythatthe
SystemStatusIndicatorLightisilluminatedgreen,
seeAdvancedDisplayModule(ADM),page22.Ifthe
SystemStatusIndicatorLightisnotgreen,pressthe
ADMPowerOn/Offbutton
.TheSystemStatus
IndicatorLightwillilluminateyellowifthemachine
isdisabled.
IfHoseResistanceModeisenabled,areminder
promptwillappearwhentheADMbecomesactive.
PresstheContinuesoftkeytoclearthescreen.
Performthefollowingtaskstofullysetupyoursystem.
1.SetpressurevaluesforthePressureImbalance
Alarmtoactivate.SeeSystemScreen1,page38.
2.Enter,enable,ordisablerecipes.See
RecipesScreen,page39.
3.Setgeneralsystemsettings.See
AdvancedScreen1—General,page37.
4.Setunitsofmeasure.See
AdvancedScreen2—Units,page37.
5.SetUSBsettings.See
AdvancedScreen3—USB,page37.
6.Settargettemperaturesandpressure.See
Targets,page42.
7.SetcomponentAandcomponentBsupply
levels.SeeMaintenance,page42.
34 334945J
