Graco Reactor A-20 Repair Parts

Parts
30 311512A
Relief Manifold

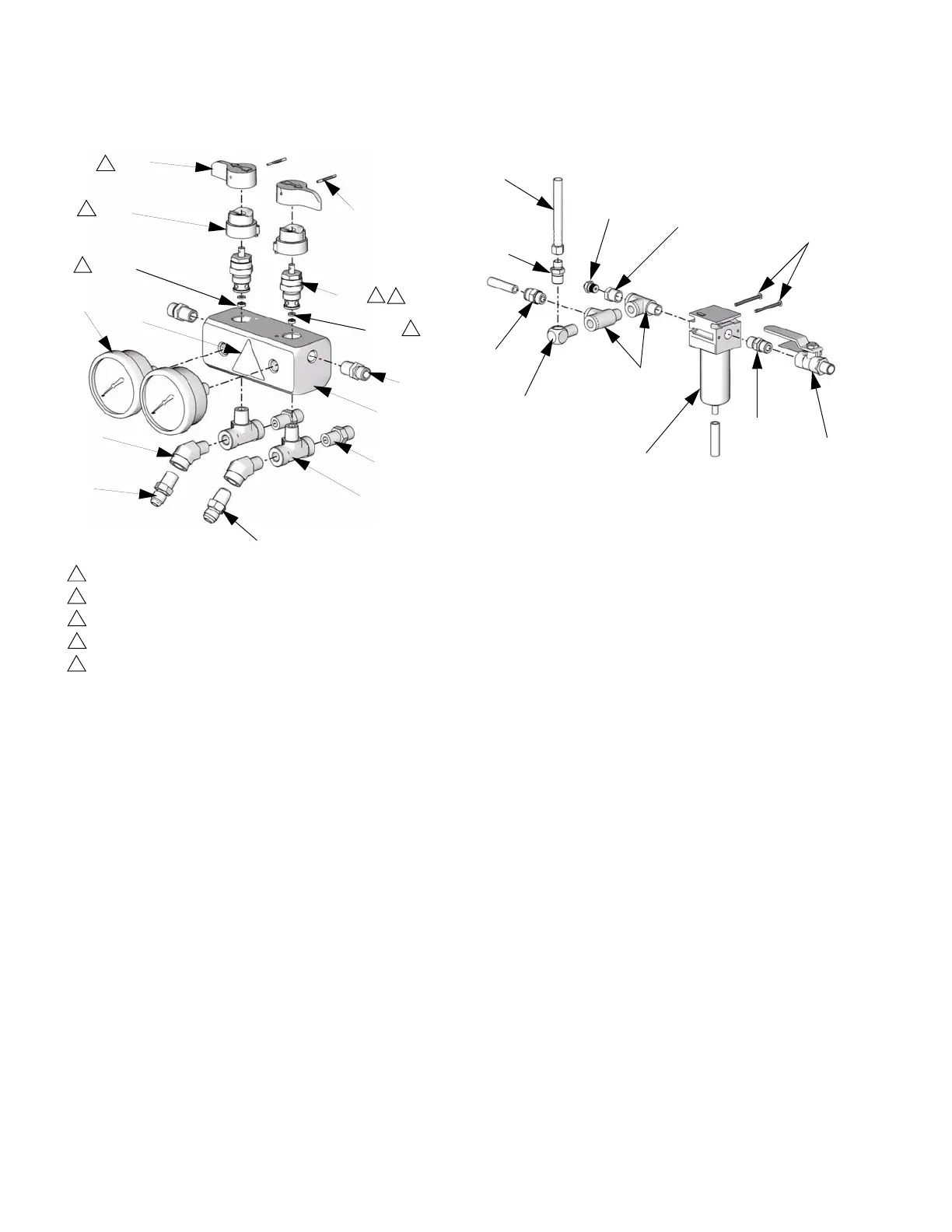

FIG. 4: Relief Manifold
Air Inlet
FIG. 5: Air Inlet
Ref. Part Description Qty.
201 15F870 MANIFOLD, recirculation 1
202 108638 FITTING, pipe, tee 2
203 162453 FITTING, (1/4 npsm x 1/4 npt) 2
204 113641 GAUGE, pressure, fluid, SST 2
205 111600 PIN, grooved 2
206 119789 FITTING, elbow, street, 45 deg, 2
207 116704 ADAPTER, 9/16-18 JIC (#6)
x 1/4 npt
1
208 239913 VALVE, drain; includes 208a, 208b 2
208a SEAT 2
208b GASKET 2
209 119998 ADAPTER, 1/2-20 JIC (#5)
x 1/4 npt
1
210 119983 FITTING, union, 1/4 npt x 3/8 tube 2
212 187625 HANDLE, valve, drain 2
213 189285 LABEL, caution 1
214 224807 BASE, valve 2
201
204
209
213
212
214
206
202
210
208
205
203
Apply sealant and torque to 250 in-lbs (28 N•m)
1
Use blue thread lock on valve cartridge threads into manifold
2
Part of item 208
3
Apply lubricant to mating surfaces
4
Apply pipe sealant to all NPT threads
5
4
2
ti8459a
4
1
207
208a
208b
3
3
Ref. Part Description Qty.
301 117629 FILTER, air, 3/8 (auto drain) 1
302 113333 VALVE, ball, vented, 0.375 1
303 156849 PIPE, nipple 1
304 803088 FITTING, tee, street 2
305 114129 FITTING, connector, male 1
306 100176 BUSHING, hex 1
307 15D916 FITTING, straight 5/32 to 1/4 npt 1
308 155699 FITTING, elbow, street 1
309 164672 ADAPTER 1
310 15B772 HOSE, air, 18 in. 1
311 SCREW, pan head, 8-32 x 2 in. 2
TI8731a
302
301
303
311
307
306
310
304
308
305
309
