Graco Reactor A-20 Repair Parts

Parts
34 311512A
Primary 6000W Heater

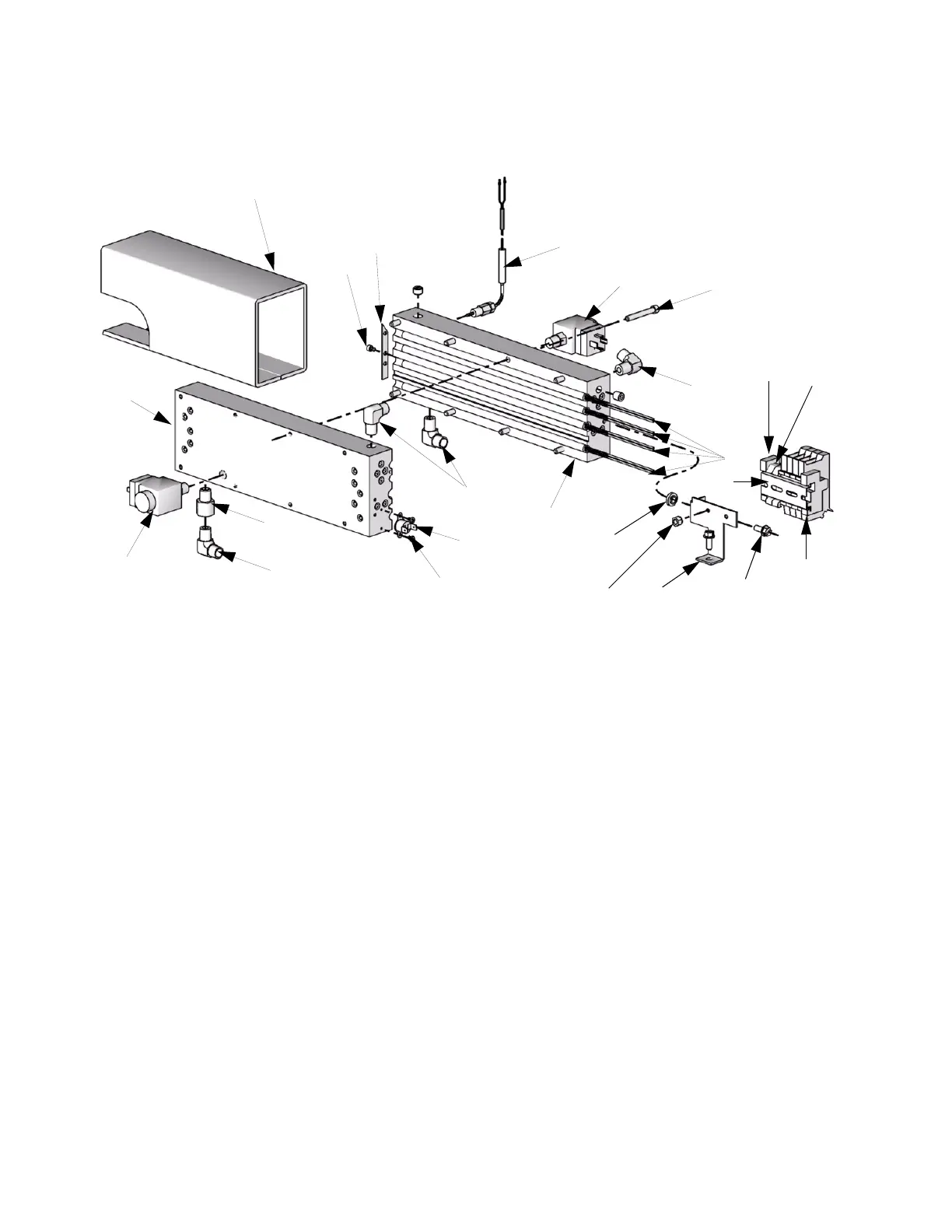

FIG. 7: Primary 6000W Heater
502
501
514
511
512
510
511
515
510
ti8460b
506
513
503
511
507
509
508
520
519
518, 523
521
517
527
525
524
Ref. Part Description Qty.
501 288352 HEATER, B, kit 1
502 288353 HEATER, A, kit 1
503 260938 ELEMENT, heating 1500 watt 4
506 15H960 INSULATOR, heater 1
507 297258 SCREW, cap, socket head 8
508 295732 SCREW, cap, sh, 8-32 x 1/4 lg 1
509 297529 STOP 1
510 296821 SWITCH, pressure, 2200 psi 2
511 119891 FITTING, elbow, 1/4 npt x 3/8 tube 4
512 103854 SCREW, mach, bdgh, 6-32 2
513 15B137 SWITCH, over temperature 1
514 117484 SENSOR, thermocouple 1
515 113336 ADAPTER, 1/4 nptm, 1/4 nptf 1
517 15J583 BRACKET, mounting, fuse 1
518 120621 FUSE, block 4
519 120570 BLOCK, terminal 2
520 112446 BLOCK, clamp end 1
521 108296 SCREW, mach, hex, washer hd,
1/4-20
1
523 120624 FUSE, electrical, MDA-20,
1/4 x 1 1/4
4
524 295261 RAIL, mounting 2
525 113505 NUT, keps, hex hd, 10-24 2
527 110533 WASHER, flat, nylon, 1/4 1
Ref. Part Description Qty.
