Fluid Circulation
309812D 33
Circulation Through Gun
Manifold
Circulating fluid through the gun manifold allows rapid
preheating of hose.
WARNING
Read warnings, page 8. Do not circulate fluid contain-
ing a blowing agent without consulting with your mate-
rial supplier regarding fluid temperature limits.

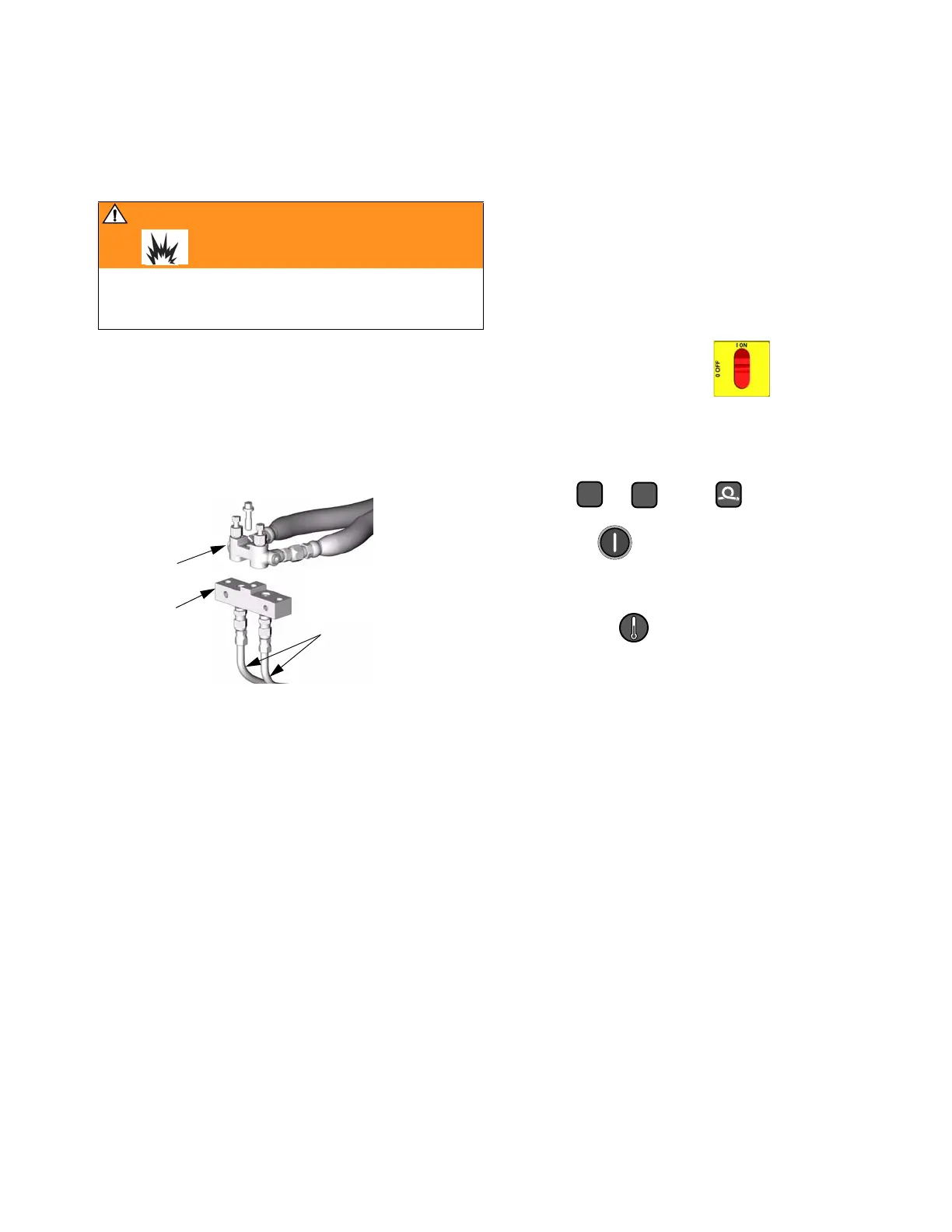

1. Install gun fluid manifold (P) on Part No. 246362
accessory manifold circulation kit (W).
R
W
P
TI4063a
2. Connect high pressure circulation lines (R) to
circulation manifold. Route circulation lines back
to respective component A or B supply drum.
Use hoses rated at the maximum working pres-
sure of this equipment.
3. Follow Load fluid with feed pumps, page 25.
4. Turn main power ON .
5. Set temperature targets, see page 26. Turn on
, , and heat zones by press-
ing .
6. Press to display actual temperatures.
7. Circulate fluid at lowest possible pressure until
temperatures reach targets.
A
B
