Motor Controls and Indicators
312065V 17
Motor Controls and Indicators
NOTICE
Motor ON/OFF Key/LED
Press to turn motor ON and OFF. Also clears
some motor control diagnostic codes, see Motor
Control Diagnostic Codes, page 34.
PARK Key/LED
Press at end of day to cycle component A pump
to home position, submerging displacement rod. Trigger
gun until pump stops. Once parked, motor will
automatically shut off.
PSI/BAR Keys/LEDs
Press
PSI
or
BAR
to change pressure scale.
Pressure Key/LED
Press to display fluid pressure.
NOTE: If pressures are imbalanced, display shows
higher of two pressures.
Cycle Count Key/LED
Press to display cycle count.
NOTE: To clear counter, press and hold for 3
sec.
To prevent damage to the softkey buttons, do not press
the buttons with sharp objects such as pens, plastic
cards, or fingernails.

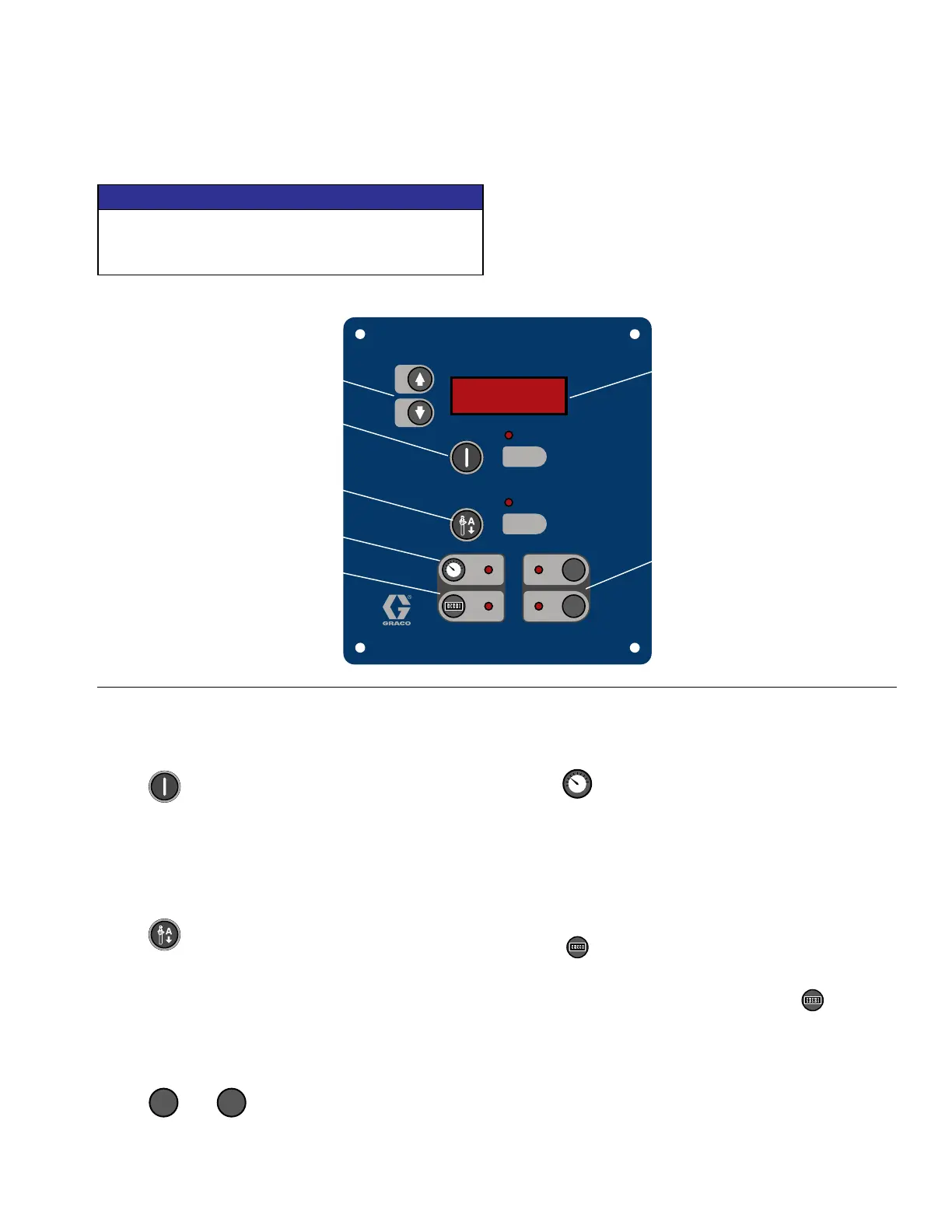

FIG. 5: Motor Controls and Indicators
PSI
BAR
ON / OFF
PARK
PSI/BAR Keys
Cycle Count Key
Pressure/Cycle Display
Pressure Key
Motor ON/OFF Key
PARK Key
Arrow Keys
