Graco Reactor E-30 Series User Manual

Repair
46 312066ZAD
Check FTS Cables
1. Turn main power OFF . Disconnect power
supply.
2. Relieve pressure, page 26.
3. Disconnect FTS cable (F) at Reactor, FIG.8.
4. Test with ohmmeter between pins of cable connec-
tor.
5. If cable fails test, retest at FTS, page 47.

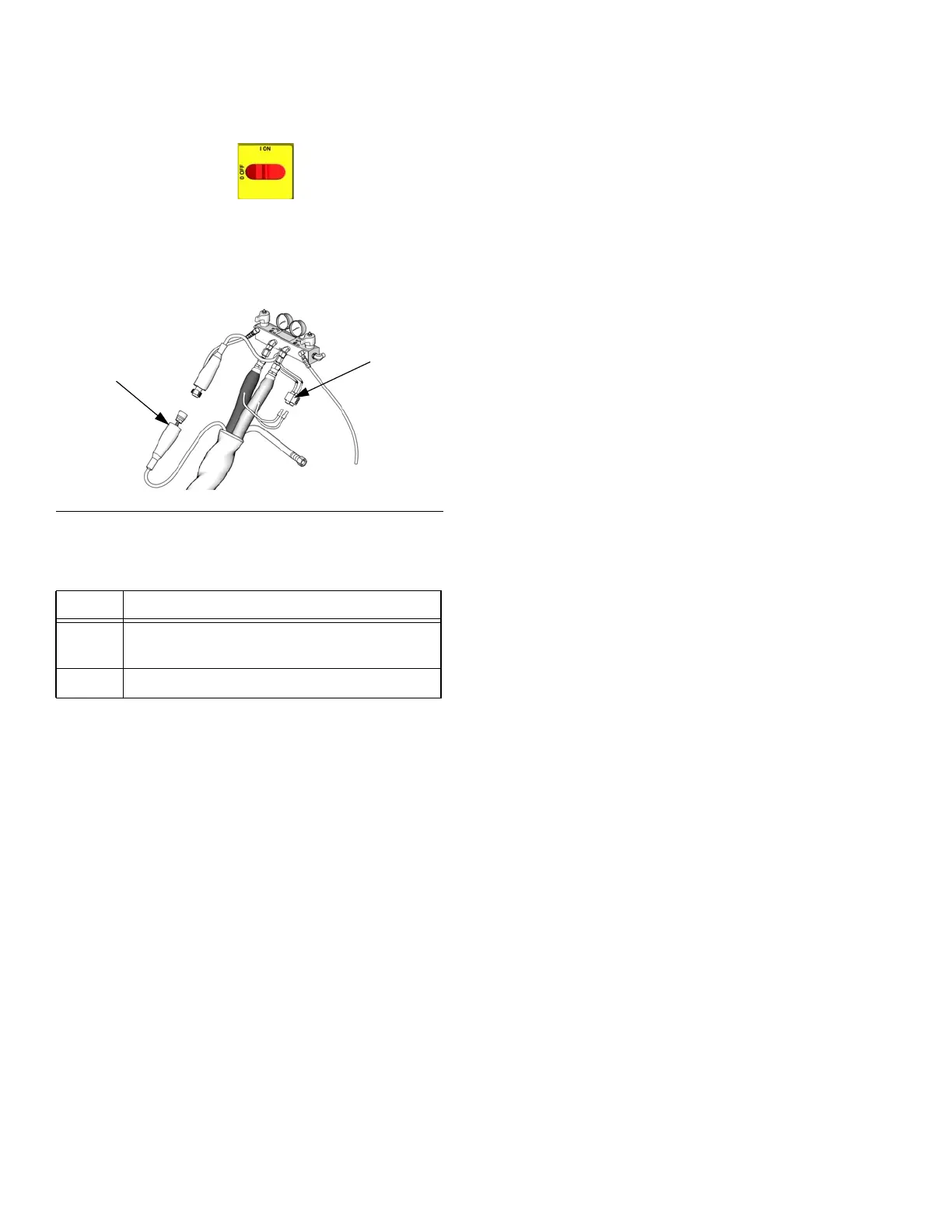

FIG. 8. Heated Hose
Pins Result
1 to 2 approximately 35 ohms per 50 ft (15.2 m) of
hose, plus approximately 10 ohms for FTS
1 to 3 infinity
TI10964a
