Parts
62 312066ZAD
Fluid Heaters

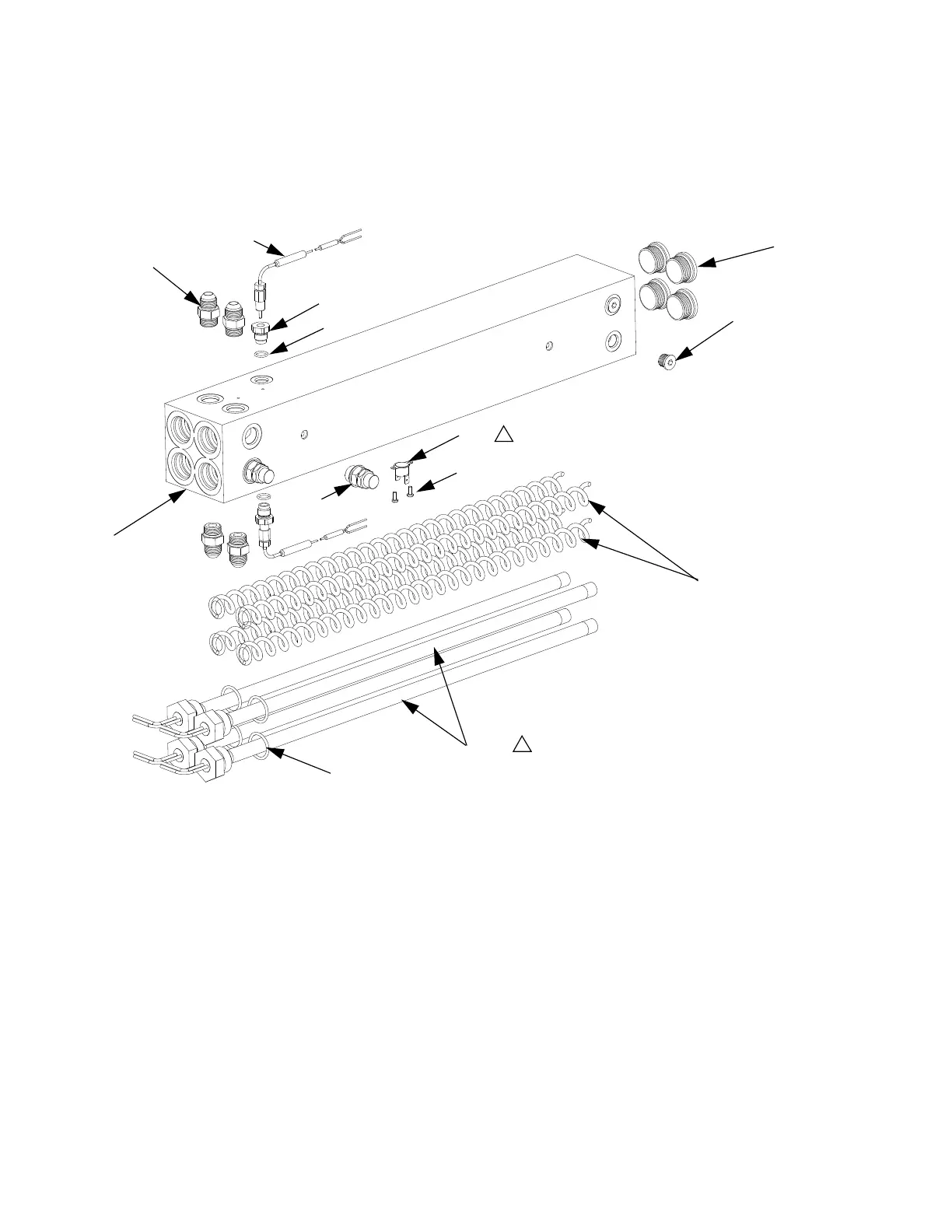

247506, 6.0 kW Fluid Heaters
247507, 10.2 kW Fluid Heaters
r_247507_312408
Apply 110009 thermal heatsink compound.
1
313
304
309
307
303
305
310
306
311
308
1
301
314
315
Ref Part Description
Qty
.
301 HOUSING, heater
1
303 121309 ADAPTER
4
304 15H304 PLUG
2
305 15H306 ADAPTER, thermocouple
2
306 120336 O-RING; fluoroelastomer
2
307 HEATER, immersion
4
16A110 2550W; 10.2kW heater only
16A112 1500 W; 6.0 kW heater only
308 15B137 SWITCH, overtemperature
1
309 15B135 MIXER, immersion heater
4
310 117484 SENSOR
2
311 100518 SCREW, machine, pan hd
2
313 15H305 PLUG, hollow
4
314 247520 DISC, rupture
2
315 124132 O-RINGS
4
Ref Part Description
Qty
.
To Next Page
