Parts
68 312066ZAD
Fluid Manifold
▲ Replacement Warning labels, signs, tags, and cards
are available at no cost.
† Included in the following complete valve kits*:
ISO Valve Kit (left/red handle) 255149.
Resin Valve Kit (right/blue handle) 255150.
Valve Set Kit (both handles and grease gun) 255148.
* Complete valve kits also include thread sealant.
(Purchase kits separately).
TI10959a
Torque to 355-395 in-lb (40.1-44.6 N•m).
Apply sealant (113500) to threads.
Valve must be closed with handle position as shown on drawing.
** Apply PTFE tape or thread sealant to tapered threads.
1
2
3
808
806
818
802
803
805
814
815
804
801
812
813
817
814
807
816
1
2
3
2
3
3
802a
802b

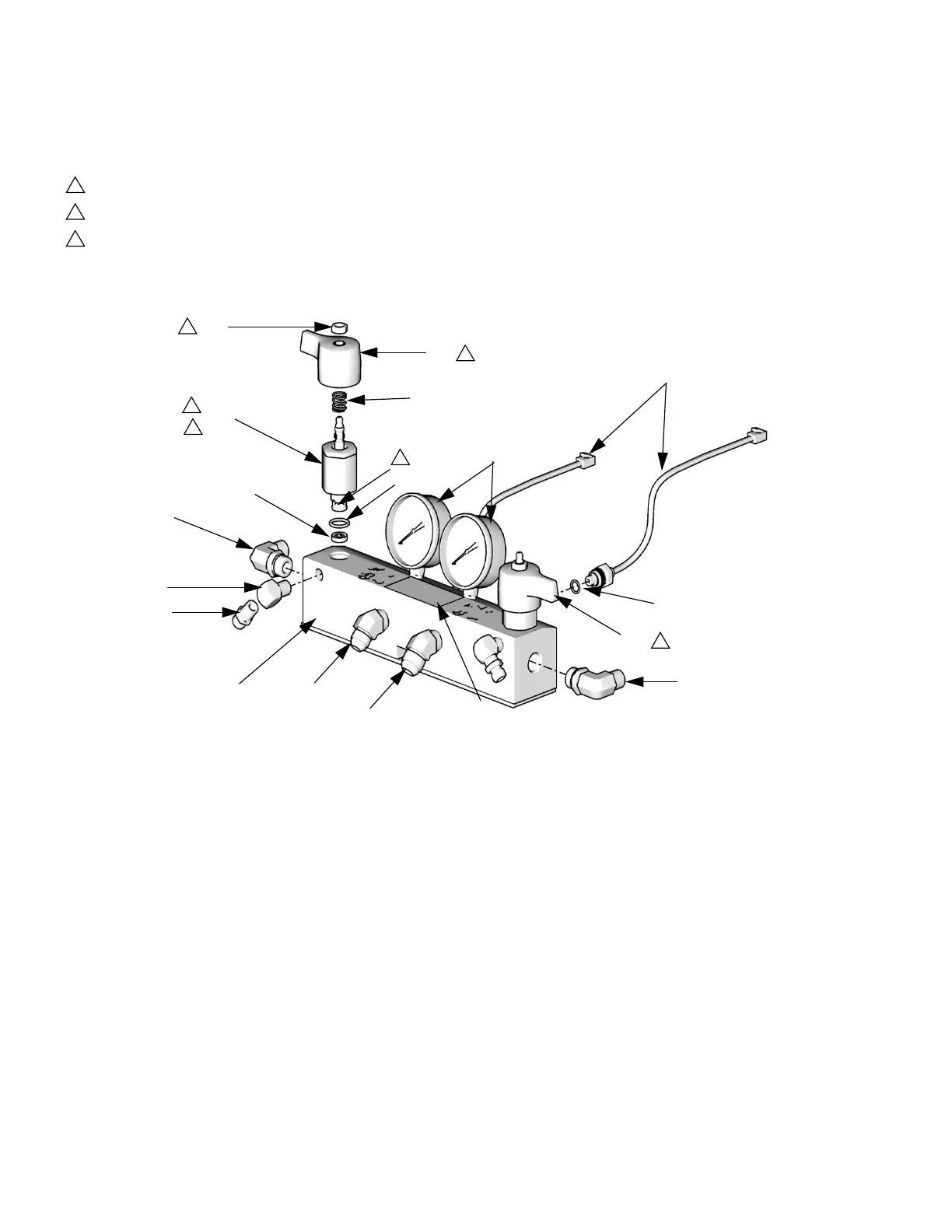

Ref. Part Description
Qty
.
801 247837 MANIFOLD, fluid
1
802† 247824 VALVE, drain cartridge
2
802a† 158674 . O-RING
1
802b† 247779 . SEAL, seat, valve
1
803 102814 GAUGE, pressure, fluid
2
804 162453 FITTING, 1/4 npsm x 1/4 npt
2
805 24K999 TRANSDUCER, pressure, control
2
806 247788 HANDLE, red
1
807 247789 HANDLE, blue
1
808† 112309 NUT, hex, jam
2
812 117556 NIPPLE, #8 JIC x 1/2 npt
1
813 117557 NIPPLE, #10 JIC x 1/2 npt
1
814 121312 ELBOW, 90 degrees
2
815 100840 ELBOW, street; 1/4 npsm x 1/4 npt
2
816 111457 O-RING, PTFE
2
817▲ 189285 LABEL, caution
1
818† 150829 SPRING, compression
2
Ref. Part Description
Qty
.
To Next Page
