Parts
309574C 53

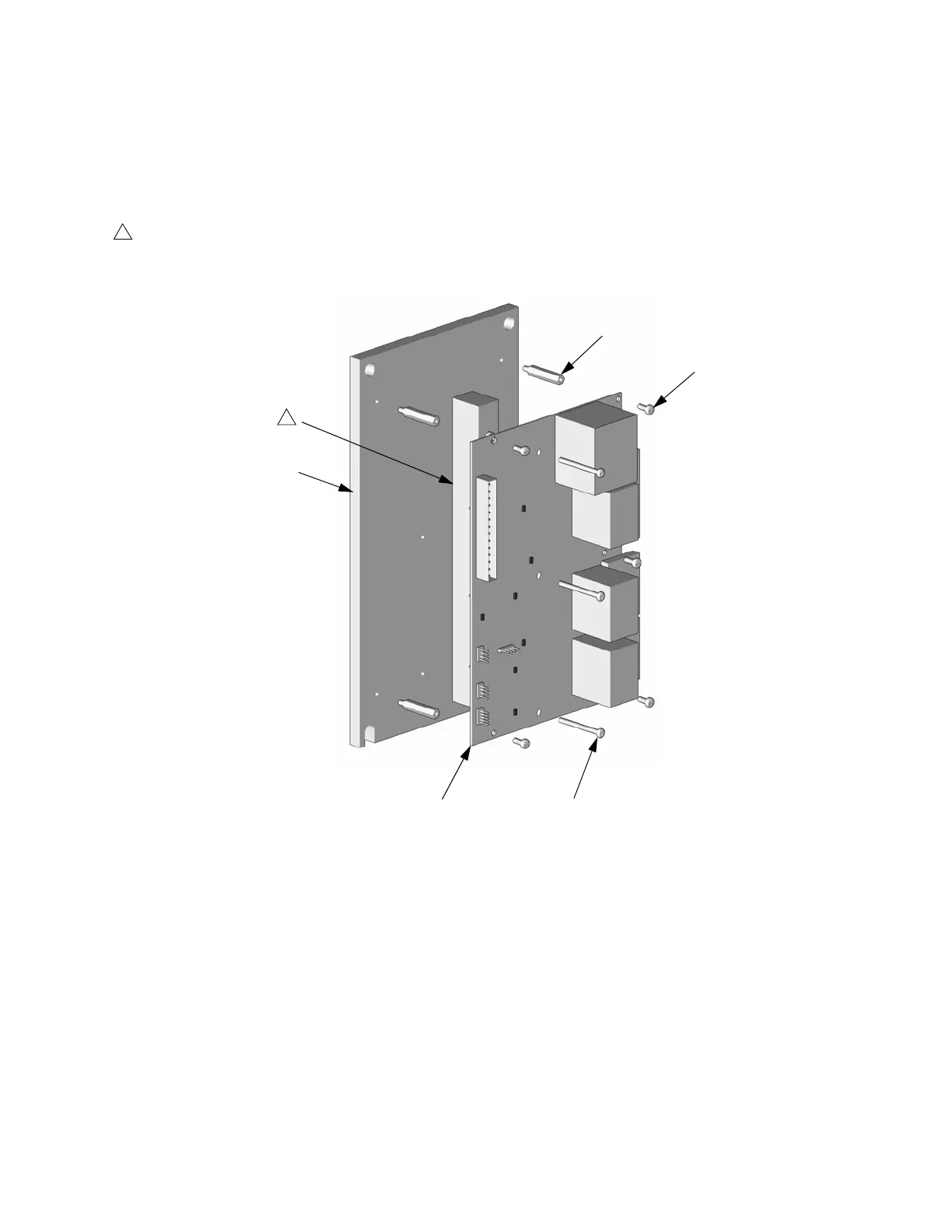

Temperature Control
245979 Temperature Control
TI2575A-1
501
502 503
504
505
1
Apply 110009 thermal heatsink compound to mating surfaces.
1
Ref.
No. Part No. Description Qty
501 15B779 HEAT SINK 1
502 246194 BOARD, temperature control 1
503 117683 SCREW, 6-32 x 1-1/2 in. (38 mm) 2
504 117526 SPACER 5
505 104590 SCREW, machine; 6-32 x 3/8 in. (10
mm)
5
