9309637

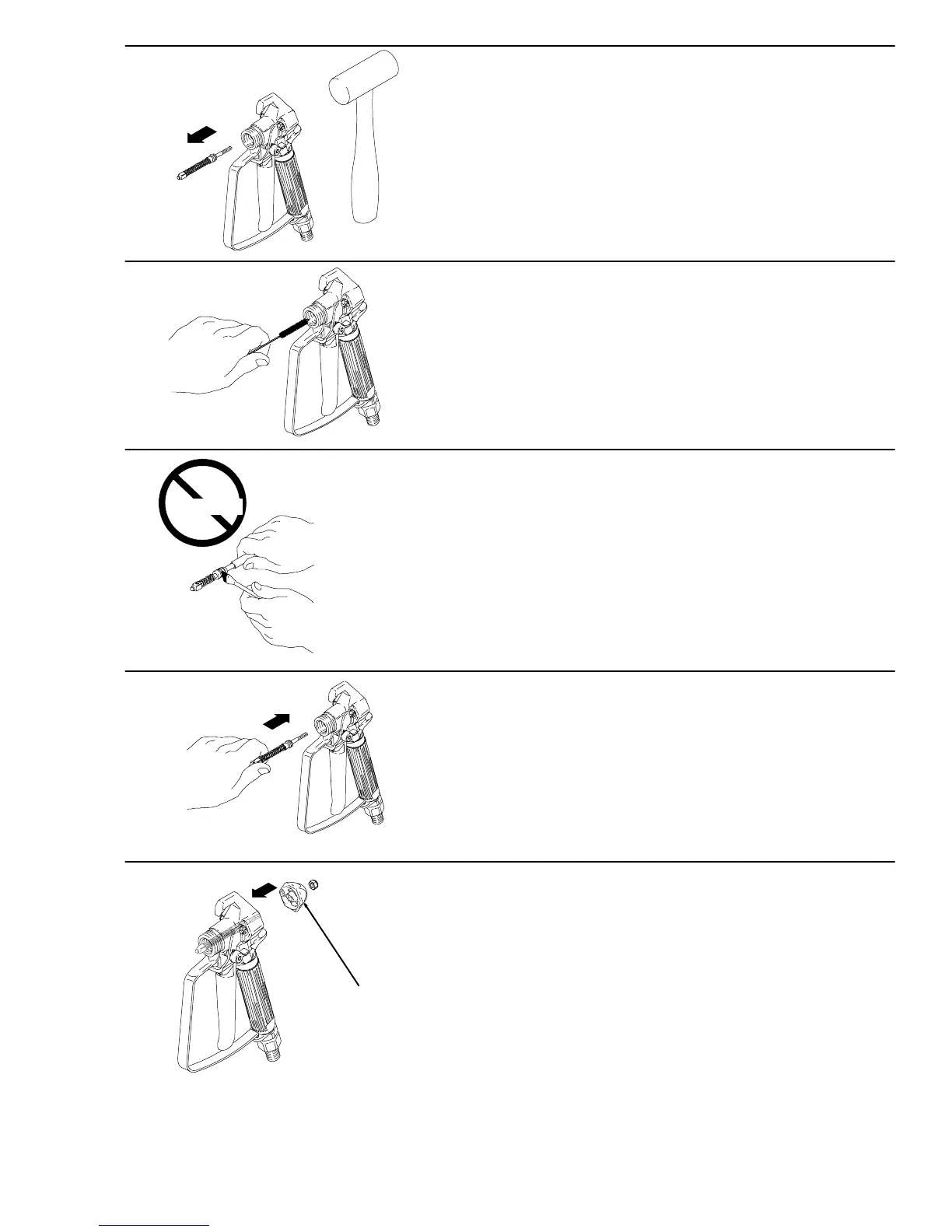

7. Tap out needle.
OLD
CLEAN
8. Clean internal passages of gun.
GREASE
SILICON
9. Grease o–rings of new needle using a nonsilicon
grease.
NEW
10. Guide new needle into gun.
LOOSE
11. Install end cap and locknut, loosely.
