Graco TexSpray RTX 1000 - Component Identification

Component Identification
4 309585A

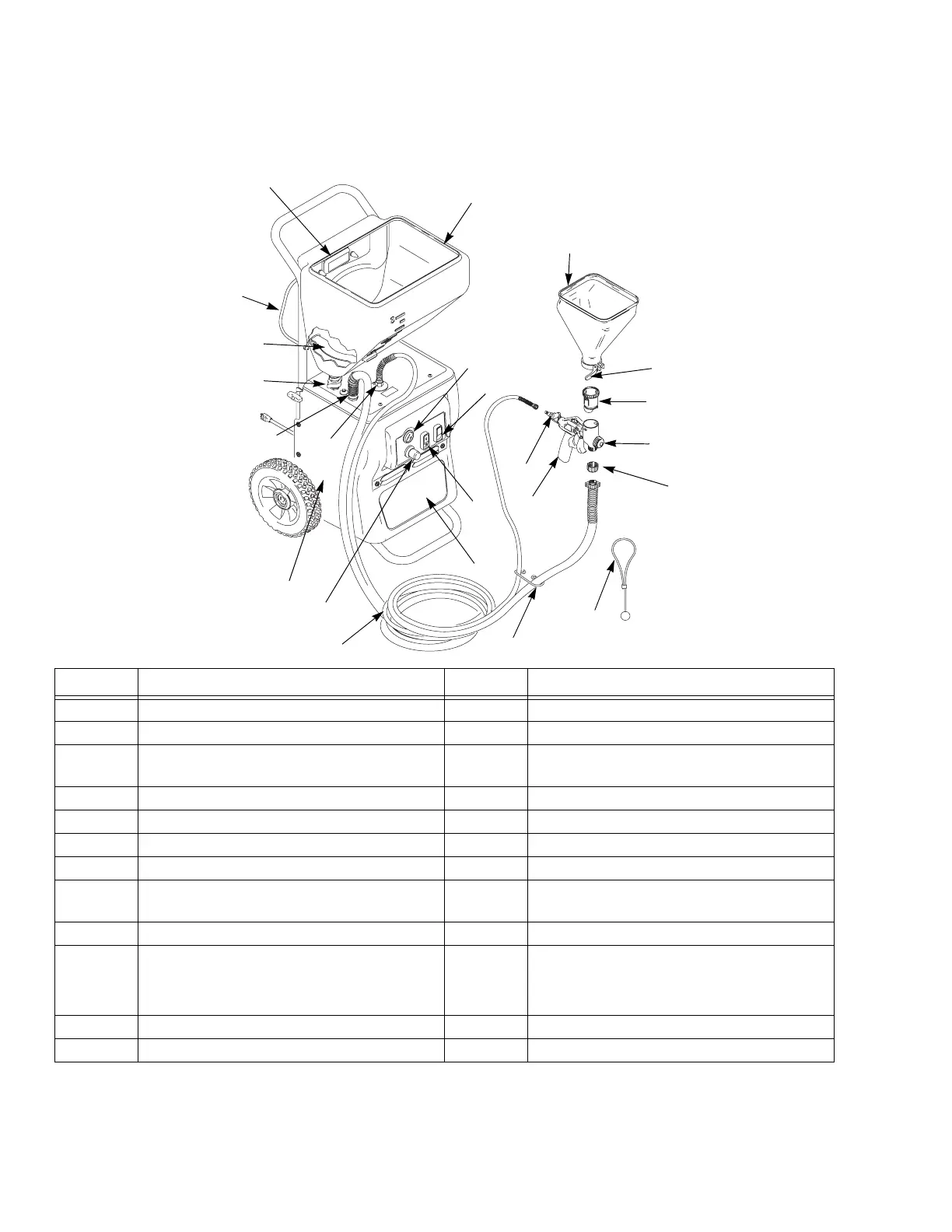

Component Identification
ti2892a
P
K
N
aa
B
A
H
C
D
E
F
J
G
R
L
S
T
cc
bb
U
W
M
Y
Item Component Item Component
A Air hose outlet N Touch-up hopper (3/4 gallon)
B Material hose outlet P Nozzle storage
C Material flow control (RTX 1000 model
only)
R Hose plug
D Hopper gun/spray gun selector switch S Gun plug
E ON/OFF switch T Material thickness gauge
F Air Compressor (inside) U Nozzle (3 sizes available)
G Material/air hose W Gun air valve
H Material flow indicator (RTX 1000 model
only)
Y Burp guard
J Texture spray gun (manual 309584) aa Hopper fitting (fluid inlet)
K Material Hopper - 6 gallon, RTX 750 model
Material Hopper - 8 gallon, RTX 1000
model
bb Hopper clamp
L RotoFlex™ pump (inside) cc Hose clip
M Hose rack/cord wrap
