Repair
10 312497ZAB
Section 2: Purge Air from Master to Secondary Divider Valve Lube Lines
Refer to FIG. 8 when following this procedure.
1. Install the lines from the master divider valve to the
secondary divider valve, but do not completely
tighten the connection at the secondary divider
valve inlet.
2. Remove the performance indicator port plug or the
performance indicator from the working valve
section on the master divider valve assembly
corresponding to the outlet port and the line
connected to the secondary valve.
3. Attach a hand pump filled with clean, filtered
lubricant on the master divider valve that was
opened in step 2.
4. Operate the hand pump until air-free lubricant is
observed flowing steadily from the secondary valve
lube inlet connector.
5. Tighten the fitting at the secondary valve inlet while
the lubricant is still flowing.
6. Remove all of the indicators or indicator port plugs
from the secondary divider valve working sections.
7. Operate the hand pump again until air-free lubricant
flows out of all the secondary divider valve indicator
ports.
8. Reinstall all of the performance indicators or port
plugs in the secondary divider valve while the
lubricant is still flowing from the ports.
9. Remove the hand pump and reinstall the
performance indicator or indicator plug removed in
step 2 into the master divider working valve open
port.
The system is now ready for operation.

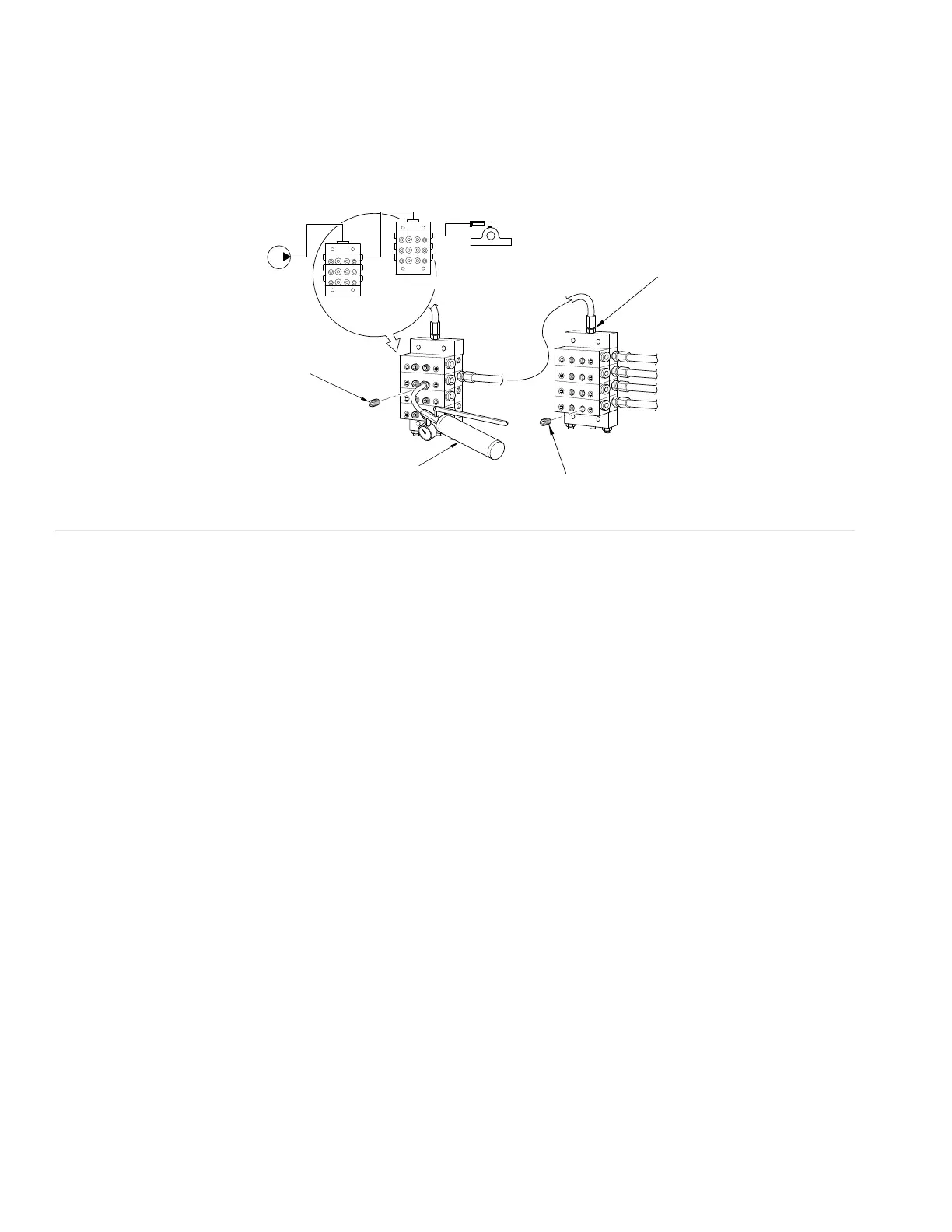

FIG. 8
TI11113
MASTER
HAND PUMP
REMOVE INDICATOR
OR PORT PLUG
SECONDARY
LUBE POINT
BLEED HERE
FIRST
AFTER BLEEDING INLET,
REMOVE ALL INDICATORS
OR PORT PLUGS AND BLEED
ALL PORTS
