Installation
312497ZAB 7
NOTE: Do not replace any of the performance indicators
or port plugs removed in step 1 from the master divider
valve assembly until the air-purging procedure
described in Fill the Master Divider Valve (pg. 7) has
been completed.
Fill the Master Divider Valve
Refer to FIG. 6. when performing this procedure.
1. Make sure that all the port plugs or performance
indicators have been removed from all of the
indicator ports in the master divider valve.
2. Check that the system pump is properly connected
to the inlet port of the master divider valve.
3. Cycle the system pump sufficiently to fill the main
feeder line between the pump and the master
divider valve, so that air-free lubricant discharges
from all of the indicator ports on the front of the
master divider valve.
4. Reinstall the master divider valve port plugs or
performance indicators into their respective
positions.

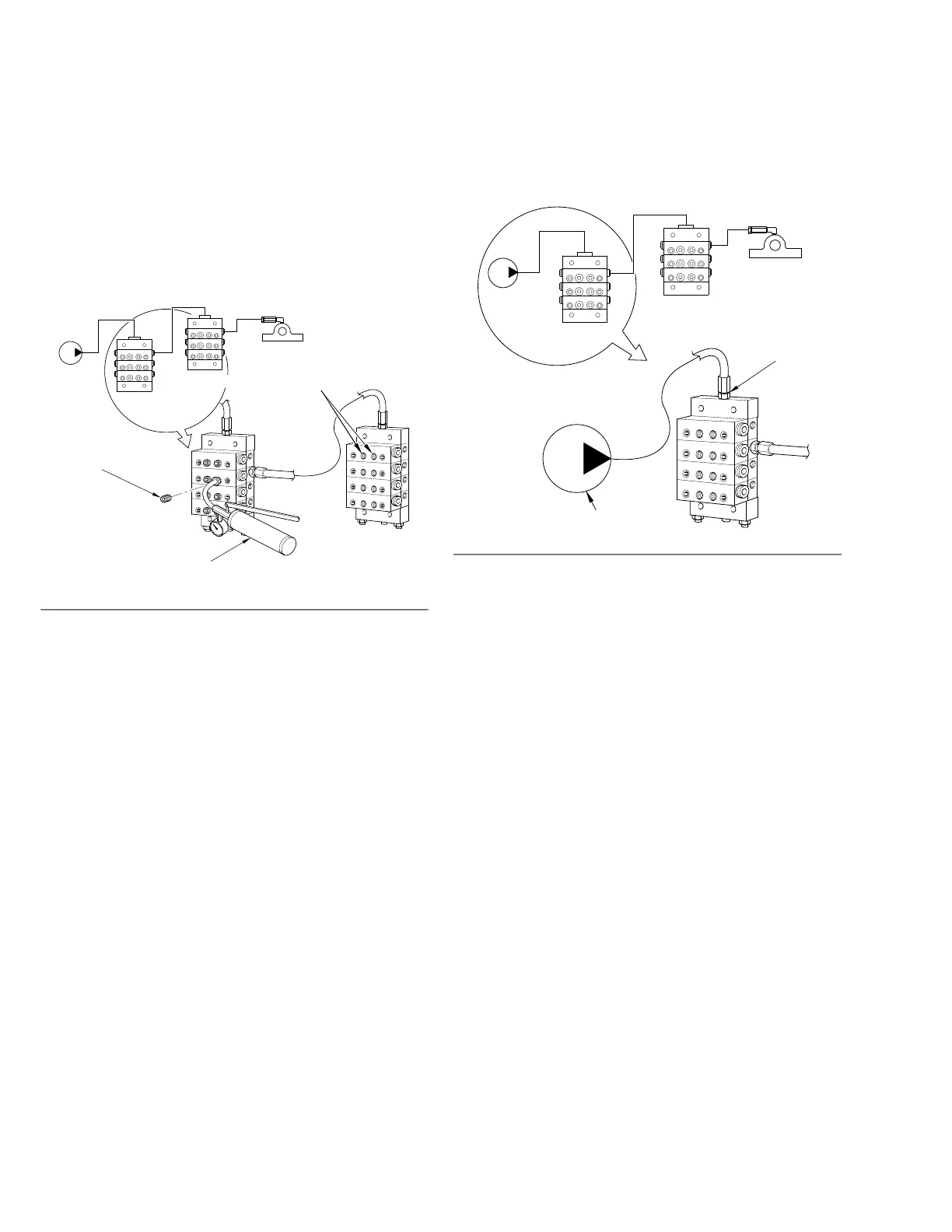

FIG. 5
TI11099
MASTER
SECONDARY
LUBE POINT
REMOVE INDICATOR
OR PORT PLUG
HAND PUMP
BLEED
ALL PORTS
THROUGH
FIG. 6
TI11000
MASTER
BLEED
SECONDARY
LUBE POINT
HERE
CYCLE PUMP
