Section 4: Purge Air After Addition or Replacement of a Master Divider Valve Module

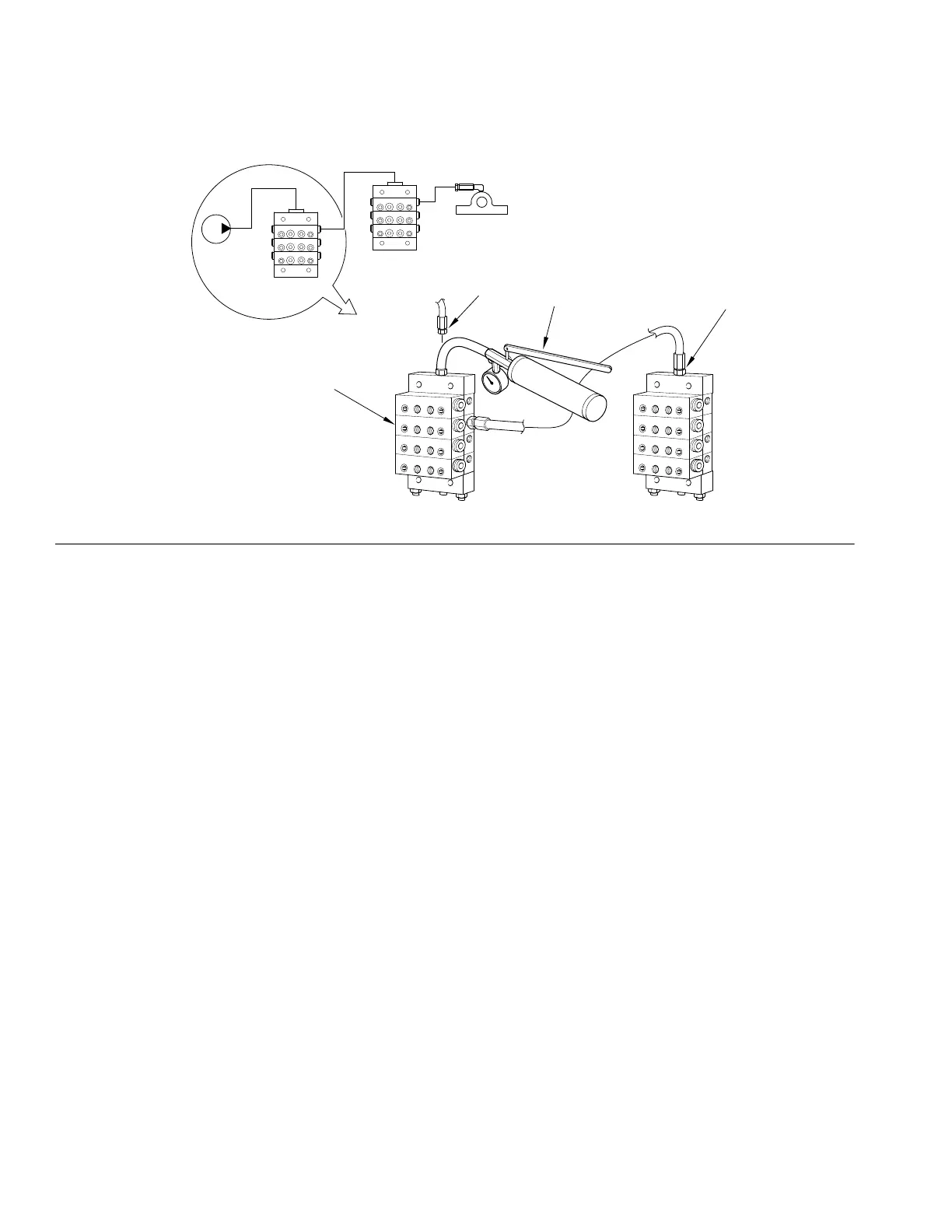

Refer to FIG. 10 when following this procedure.
1. Install the new or replacement module into the
master divider valve assembly. Connect the tubing
or hoses to the appropriate secondary divider
valves or lubrication points if the new or
replacement module is a base section.
2. Do not completely tighten the connections at the
secondary divider valve inlet or at lubrication points.
3. Disconnect and remove the line from the pump at
the inlet of the master divider valve.
4. Attach a hand pump filled with clean, filtered
lubricant to the inlet port on the master divider
valve.
5. Operate the hand pump until air-free lubricant flows
from each secondary valve lube inlet connector and
each lubrication point connector.
6. Tighten the fitting at the secondary valve inlet or at
the lubrication port while lubricant is still flowing.
7. Remove the hand pump and reconnect the system
pump to the inlet of the master divider valve.
The system is now ready for operation.
FIG. 10
TI11116
BLEED
SECONDARY
MASTER
HAND PUMP
LUBE POINT
DISCONNECT
LINE
HERE
NEW VALVE
BLOCK
